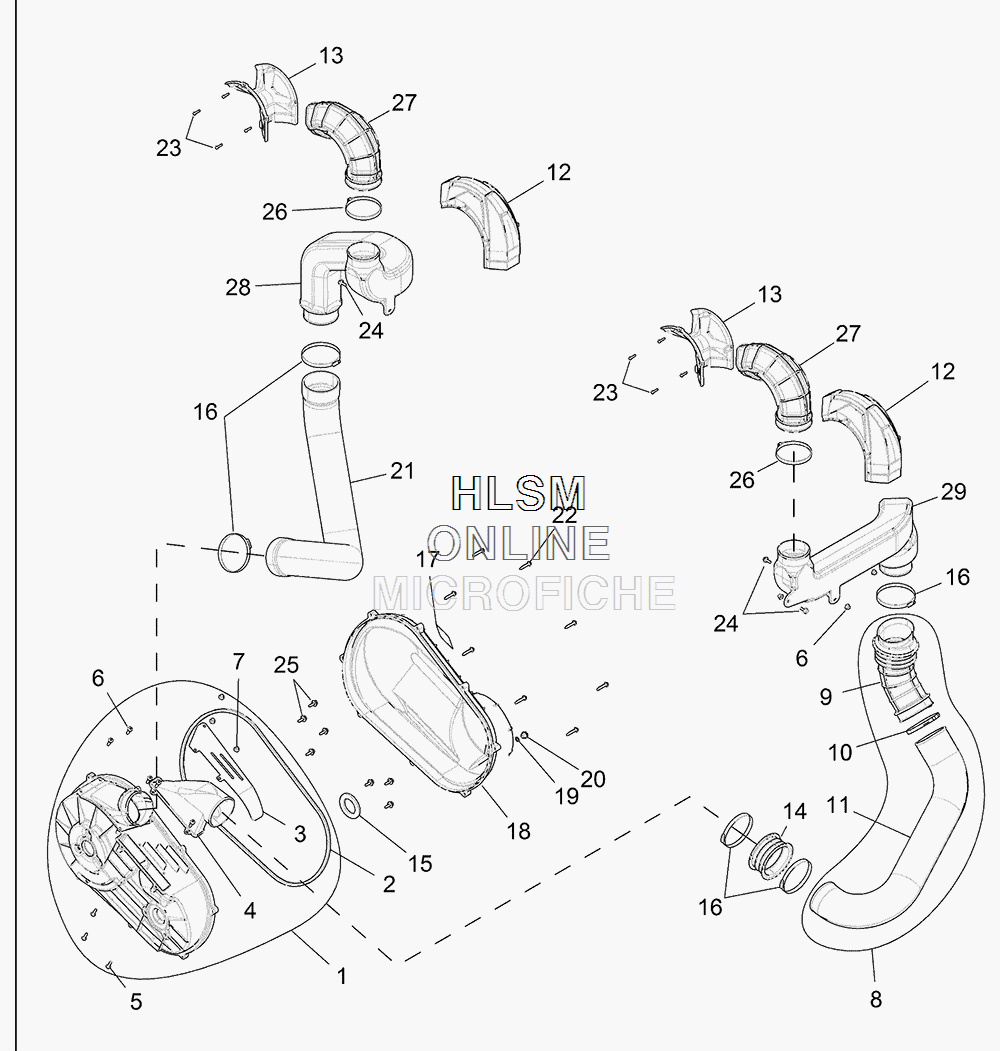

CLUTCH COVER AND DUCTING для Polaris RZR XP 1000 EPS HIGH LIFTER EDITION HAVASU RED [Z16VDE99MAM] - 2016 года выпуска
-
№АртикулНазвание
-
12635822 ASM., COVER, CLUTCH, INNER (INCL 2-6, QTY 3 OF 7)ASM., COVER, CLUTCH, INNER (INCL 2-6, QTY 3 OF 7)
-
25521831 SEAL, OUTER CLUTCH COVERSEAL, OUTER CLUTCH COVER
-
35256223 BRKT-GUARD,CLUTCH COVERBRKT-GUARD,CLUTCH COVER
-
45439086 DUCT-CLUTCH,AIR INLETDUCT-CLUTCH,AIR INLET
-
57518546 SCR-M6X1.0X20MM,TX,PH,8.8-BSCR-M6X1.0X20MM,TX,PH,8.8-B
-
67519205 SCR-#14X3/4 HI/LO-PH-PN TRX-MSCR-#14X3/4 HI/LO-PH-PN TRX-M
-
77547453 NUT, NYLOKNUT, NYLOK
-
81240782 ASM-INTAKE,CLUTCH DUCT INCL (9-11)ASM-INTAKE,CLUTCH DUCT INCL (9-11)
-
95414580 HOSE-CLUTCH,AIR INHOSE-CLUTCH,AIR IN
-
107081914 CLAMP-HOSE,OETIKER,94.8-98CLAMP-HOSE,OETIKER,94.8-98
-
115450655 DUCT-INTAKE,CLUTCH AIRDUCT-INTAKE,CLUTCH AIR
-
125451616-293 COVER-PLAST,INTAKE HOSE,TOP,RDCOVER-PLAST,INTAKE HOSE,TOP,RD
-
135451617-070 COVER, PLASTIC, INTAKE HOSE, BOTTOM, BLACKCOVER, PLASTIC, INTAKE HOSE, BOTTOM, BLACK
-
145813639 BOOT, INTAKE, CLUTCHBOOT, INTAKE, CLUTCH
-
155813708 SEAL, COVER, PTOSEAL, COVER, PTO
-
167081626 CLAMP, WORM DRIVECLAMP, WORM DRIVE
-
177177469 DECAL, BELT, CAUTION/CHECKDECAL, BELT, CAUTION/CHECK
-
182634179 ASM., COVER, CLUTCH, OUTER (INCL 19,20)ASM., COVER, CLUTCH, OUTER (INCL 19,20)
-
195410542 O-RINGO-RING
-
205434264 PLUG-DRAIN,CLUTCH COVERPLUG-DRAIN,CLUTCH COVER
-
215415126 HOSE, CLUTCH, AIR OUTLET, HCHOSE, CLUTCH, AIR OUTLET, HC
-
227519330 SCREWSCREW
-
237520164 SCREWSCREW
-
247518591 SCR-HXFL-M6X1.0X16 8.8 ZPBSCR-HXFL-M6X1.0X16 8.8 ZPB
-
257519278 ASM-BOLT/WASHER,20 MMASM-BOLT/WASHER,20 MM
-
267081996 CLAMP, HOSECLAMP, HOSE
-
275415215 HOSE, INLET, HCHOSE, INLET, HC
-
285451475 DUCT, CLUTCH, EXHAUST, HCDUCT, CLUTCH, EXHAUST, HC
-
295451474 DUCT, CLUTCH, INTAKE, HCDUCT, CLUTCH, INTAKE, HC
