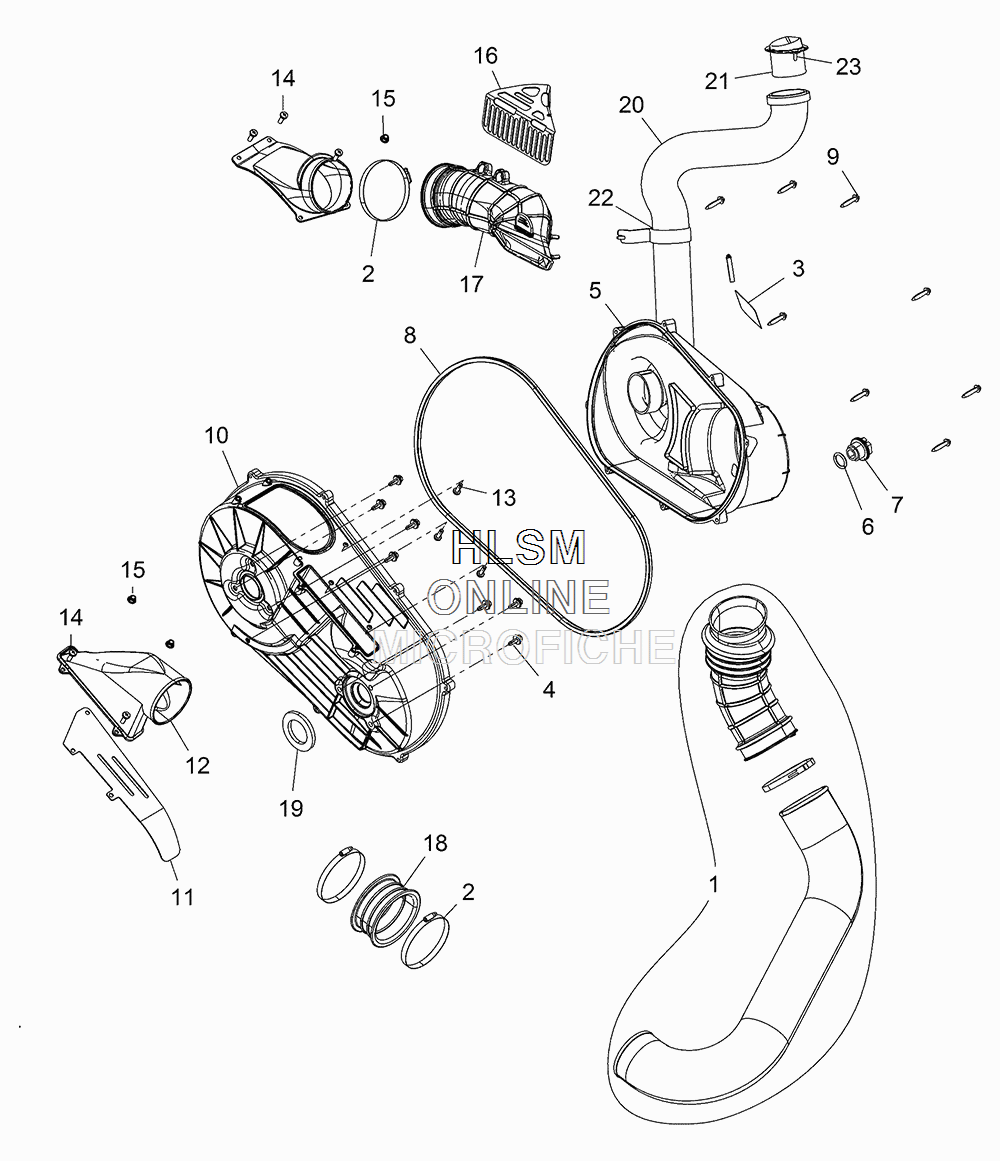

CLUTCH COVER AND DUCTING для Polaris RZR XP 4 1000 EPS TITANIUM MATTE METALLIC [Z16VFE99AM] - 2016 года выпуска
-
№АртикулНазвание
-
11240782 ASM., INTAKE, CLUTCH DUCTASM., INTAKE, CLUTCH DUCT
-
27081626 CLAMP, WORM DRIVECLAMP, WORM DRIVE
-
37177469 DECAL, BELT, CAUTION/CHECKDECAL, BELT, CAUTION/CHECK
-
47519278 ASM., BOLT AND WASHERASM., BOLT AND WASHER
-
52635611 ASM., COVER, CLUTCH, OUTER (INCL. 6,7)ASM., COVER, CLUTCH, OUTER (INCL. 6,7)
-
65410542 O-RINGO-RING
-
75434264 PLUG, DRAIN, CLUTCH COVERPLUG, DRAIN, CLUTCH COVER
-
85521831 SEAL, OUTER CLUTCH COVERSEAL, OUTER CLUTCH COVER
-
97519330 SCREWSCREW
-
102635158 ASM., COVER, CLUTCH, INNER (INCL. 11-15)ASM., COVER, CLUTCH, INNER (INCL. 11-15)
-
115256223 BRACKET, GUARD, CLUTCH COVERBRACKET, GUARD, CLUTCH COVER
-
125439086 DUCT, CLUTCH,AIR INLETDUCT, CLUTCH,AIR INLET
-
137518546 SCREWSCREW
-
147519205 SCREWSCREW
-
157547453 NUT, NYLOKNUT, NYLOK
-
165256957 BRACKET, SCREEN, BELTBRACKET, SCREEN, BELT
-
175415385 HOSE, CLUTCH, AIR OUTLETHOSE, CLUTCH, AIR OUTLET
-
185813639 BOOT, INTAKE, CLUTCHBOOT, INTAKE, CLUTCH
-
195813708 SEAL, COVER, PTOSEAL, COVER, PTO
-
205415317 HOSE, CLUTCH INTAKEHOSE, CLUTCH INTAKE
-
215451776 BOOT, PLASTIC, INTAKEBOOT, PLASTIC, INTAKE
-
227082035 CLAMP, LARGECLAMP, LARGE
-
237519045 SCREWSCREW
