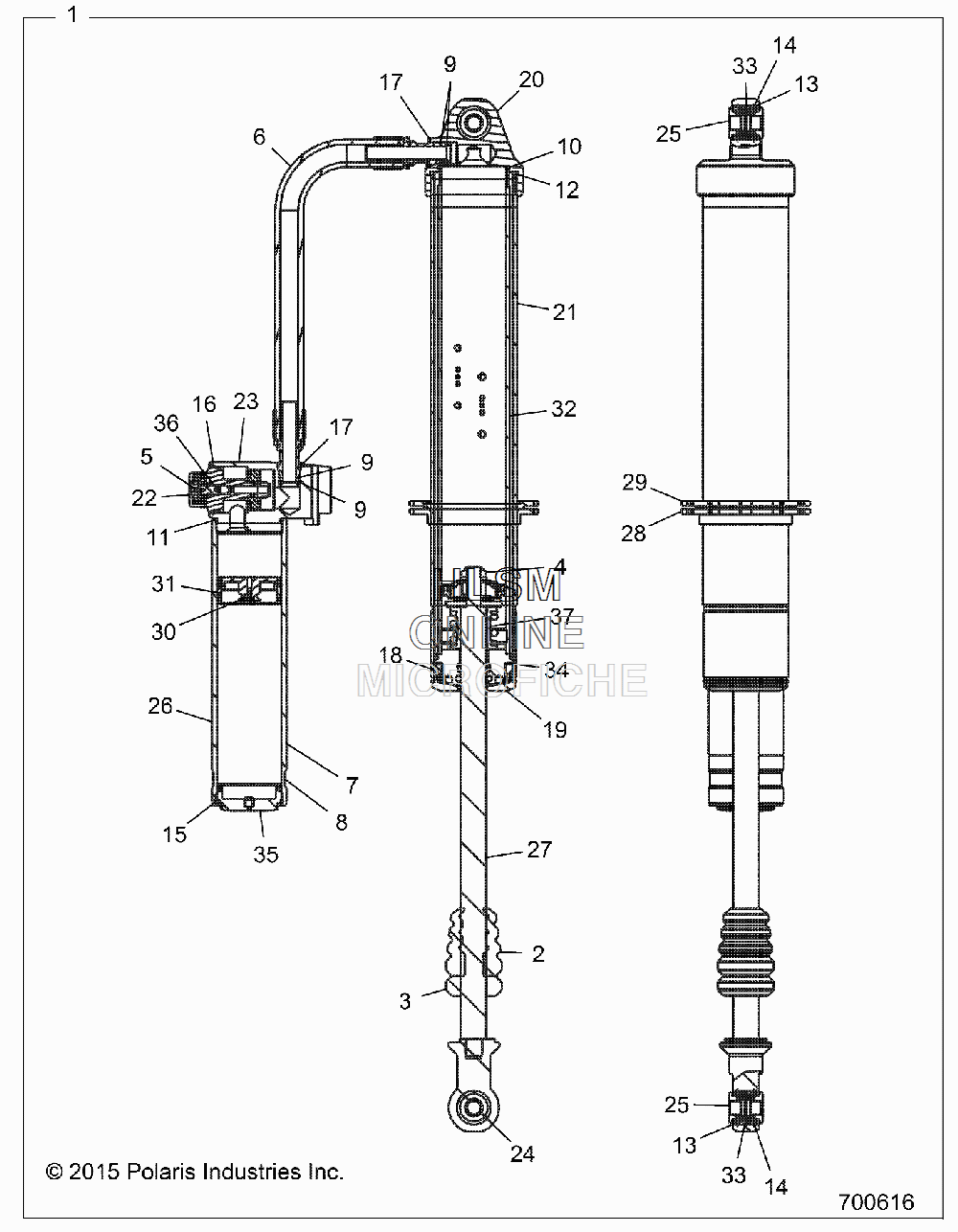

SUSPENSION - REAR SHOCK для Polaris RZR XP TURBO EPS CRUISER BLACK [Z16VDE92N8] - 2016 года выпуска
-
№АртикулНазвание
-
17044473 REAR, SHOCK [INCL. ALL]REAR, SHOCK [INCL. ALL]
-
11501084 PLATE, TOP OUT, 1.950 X .188PLATE, TOP OUT, 1.950 X .188
-
11500841 PLATE: BACK-UP [0.875 OD X 0.503 ID X 0.100 TH]PLATE: BACK-UP [0.875 OD X 0.503 ID X 0.100 TH]
-
21500577 BUMPER: B/O [?0.620 SHAFT, 2.350 TLG] MCUBUMPER: B/O [?0.620 SHAFT, 2.350 TLG] MCU
-
31500866 BUMPER: B/O [?0.620 SHAFT, .700 TLG] MCU, BLACKBUMPER: B/O [?0.620 SHAFT, .700 TLG] MCU, BLACK
-
41500472 FASTENER, STANDARD: NUT, LOCK [1/2-20 X 0.313 TLG]FASTENER, STANDARD: NUT, LOCK [1/2-20 X 0.313 TLG]
-
51501011 SCREW, #4, SS PANSCREW, #4, SS PAN
-
61501066 HOSE: (T) -10, .625" ID [30.00 TLG], QUICK CONNECHOSE: (T) -10, .625" ID [30.00 TLG], QUICK CONNEC
-
71501067 DECAL: RESERVOIR [7.63 X 7.50] INTERNAL BYPASSDECAL: RESERVOIR [7.63 X 7.50] INTERNAL BYPASS
-
81501046 DECAL: BAND [.45 X 7.63] PERFORMANCE SERIESDECAL: BAND [.45 X 7.63] PERFORMANCE SERIES
-
91501068 SEALS: O-RING [(-016) .070 C.S. X 0.614 ID]SEALS: O-RING [(-016) .070 C.S. X 0.614 ID]
-
101501069 SEALS:O-RING [(-033) .070 C.S. X 2.364 ID]SEALS:O-RING [(-033) .070 C.S. X 2.364 ID]
-
111501048 SEALS:O-RING [(-139) .103 C.S. X 2.175 ID]SEALS:O-RING [(-139) .103 C.S. X 2.175 ID]
-
121501070 SEALS:O-RING [(-150) .103 C.S. X 2.862 ID]SEALS:O-RING [(-150) .103 C.S. X 2.862 ID]
-
131501050 SEALS:O-RING [(-315) .210 C.S. X .787 ID]SEALS:O-RING [(-315) .210 C.S. X .787 ID]
-
141501051 RETAINING RING: SNAP [-118] STEEL, GOLD ZINC: PH 15-7 MO, BASIC INTERNALRETAINING RING: SNAP [-118] STEEL, GOLD ZINC: PH 15-7 MO, BASIC INTERNAL
-
151500960 WIRE, RETAINING RINGWIRE, RETAINING RING
-
161501052 RETAINING RING: WIRE [0.062 CS X 1.690 INSTALLED OD]RETAINING RING: WIRE [0.062 CS X 1.690 INSTALLED OD]
-
171501085 RETAINING RING: WIRE [2.750 ID X 063 WIRE]RETAINING RING: WIRE [2.750 ID X 063 WIRE]
-
181501086 RETAINING RING: WIRE [0.787 ID X 063 WIRE]RETAINING RING: WIRE [0.787 ID X 063 WIRE]
-
191501071 BEARING CAP: [2.750 BORE, .0.875 SHAFT]BEARING CAP: [2.750 BORE, .0.875 SHAFT]
-
201501072 BODY CAPBODY CAP
-
211501173 BODY, OUTER 17.8 TLGBODY, OUTER 17.8 TLG
-
221501057 DAMPING ADJUST PART: LOW SPEED KNOB [?1.200 OD, .530 TLG]DAMPING ADJUST PART: LOW SPEED KNOB [?1.200 OD, .530 TLG]
-
231501074 DAMPING ADJUST PART: CD HOUSING [?2.250 BORE]DAMPING ADJUST PART: CD HOUSING [?2.250 BORE]
-
241501174 EYELETEYELET
-
251501076 EYELET PARTS: (T) REDUCER, [0.560 TLG, .476 THRU HOLE]EYELET PARTS: (T) REDUCER, [0.560 TLG, .476 THRU HOLE]
-
261501175 RESEVOIR 10.0 TLG BLKRESEVOIR 10.0 TLG BLK
-
271501176 SHAFT, .875 X 17.1SHAFT, .875 X 17.1
-
281501079 SPRING HARDWARE: PRELOAD RING [3.250 OD X 0.515 TLG, 2.080-14]SPRING HARDWARE: PRELOAD RING [3.250 OD X 0.515 TLG, 2.080-14]
-
291501080 SPRING HARDWARE: PRELOAD RING BACK UP [4.50 OD X .280 TLG, 3.0-14]SPRING HARDWARE: PRELOAD RING BACK UP [4.50 OD X .280 TLG, 3.0-14]
-
301500161 SCREW ASSEMBLY: [FLAT HEAD SOCKET CAP #10-24 X 0.375 TLG]SCREW ASSEMBLY: [FLAT HEAD SOCKET CAP #10-24 X 0.375 TLG]
-
311501060 PISTON ASSEMBLY: FLOATING [.25 BORE]PISTON ASSEMBLY: FLOATING [.25 BORE]
-
321501177 INTERNAL BYPASS, 2PADINTERNAL BYPASS, 2PAD
-
331501044 BEARING: SPHERICAL [0.625 BORE X 1.1875 OD]BEARING: SPHERICAL [0.625 BORE X 1.1875 OD]
-
341501094 ASM., SEAL HEADASM., SEAL HEAD
-
351501063 RESERVOIR END CAP ASSEMBLY: [2.250 BORE, .940 TLG]RESERVOIR END CAP ASSEMBLY: [2.250 BORE, .940 TLG]
-
361501064 DAMPING ADJUST ASSEMBLY: LSC ADJUSTER [1.435 BORE]DAMPING ADJUST ASSEMBLY: LSC ADJUSTER [1.435 BORE]
-
371501083 SPRING HARDWARE ASSEMBLYSPRING HARDWARE ASSEMBLY
