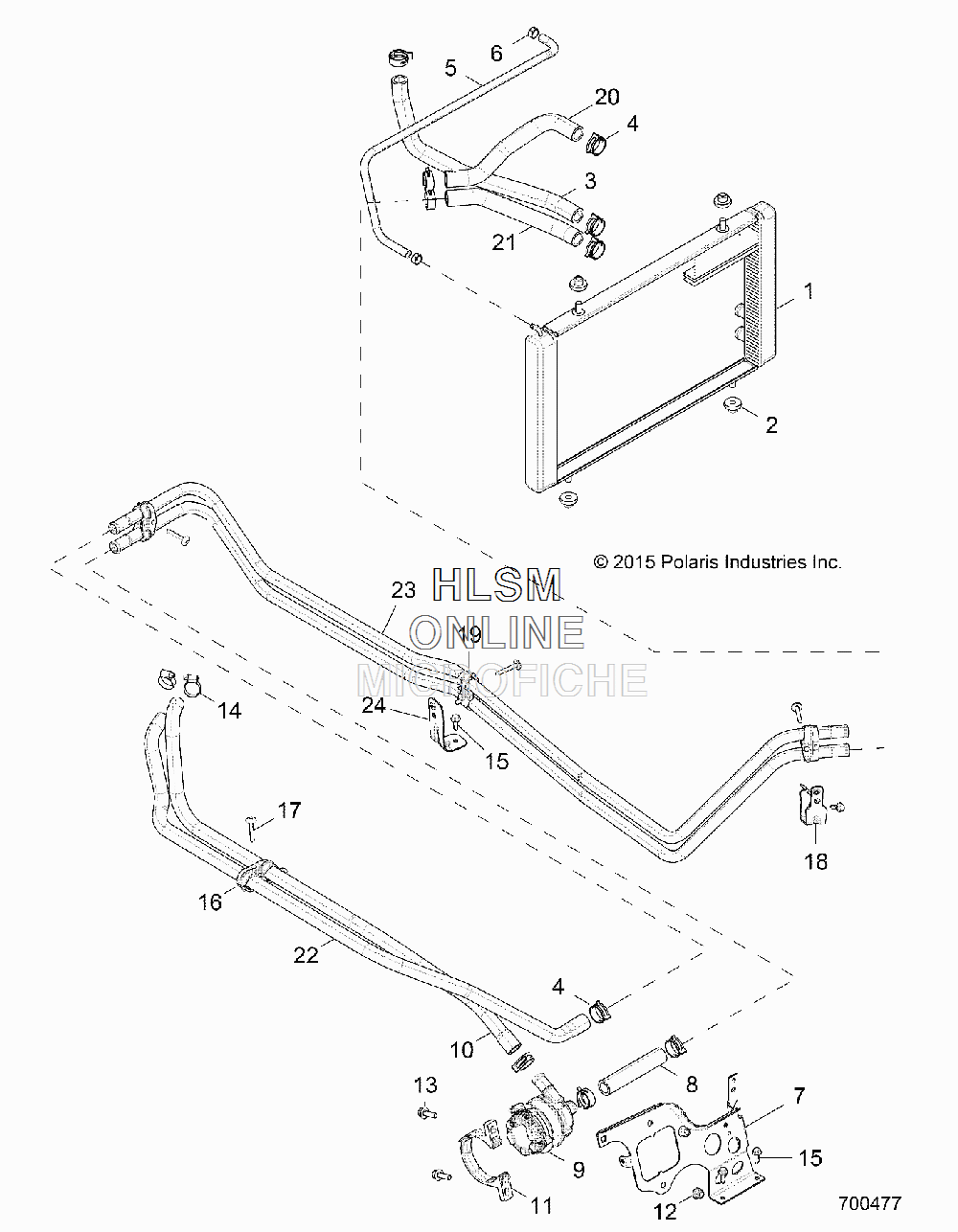

COOLING- AUX. SYSTEM для Polaris RZR XP TURBO MD VELOCITY BLUE [Z16VDE92NW] - 2016 года выпуска
-
№АртикулНазвание
-
11240908 ASM-RADIATOR, COREASM-RADIATOR, CORE
-
27052028 GROMMET-FLANGED, .36X.56X1.06GROMMET-FLANGED, .36X.56X1.06
-
35415445 HOSE-OUT, SURGE TANK TO LTRHOSE-OUT, SURGE TANK TO LTR
-
47080841 SPRINGBAND-CLAMP 27/12, GREENSPRINGBAND-CLAMP 27/12, GREEN
-
58450120-67 1/4"SAEJ2002, EPDM HOSE,51CM1/4"SAEJ2002, EPDM HOSE,51CM
-
67080003 HOSE CLAMP, REDHOSE CLAMP, RED
-
75260110-329 BRKT-MOUNT, WATER PUMP,BLKBRKT-MOUNT, WATER PUMP,BLK
-
85415326 HOSE-PUMP INLET, 3/4",REARHOSE-PUMP INLET, 3/4",REAR
-
92413045 ASM-PUMP, WATER,ELECTRICASM-PUMP, WATER,ELECTRIC
-
105415324 HOSE-INTERCOOL, INLET,3/4",RRHOSE-INTERCOOL, INLET,3/4",RR
-
115452166 BRKT-MNT, WATER PUMPBRKT-MNT, WATER PUMP
-
127547332 NUT-M8X1.25, FLG,NYLOC-OLIVE DNUT-M8X1.25, FLG,NYLOC-OLIVE D
-
137518514 SCR-HXFL-M8X1.25X25 8.8 ZODSCR-HXFL-M8X1.25X25 8.8 ZOD
-
147081415 CLAMP-CONSTANT TENSION, 16-27CLAMP-CONSTANT TENSION, 16-27
-
157518529 SCR-M6X1.0X20, HXHD,FLG,TDFM,BLSCR-M6X1.0X20, HXHD,FLG,TDFM,BL
-
165451221 BRACKET-COOLANT TUBEBRACKET-COOLANT TUBE
-
177519001 SCR-M6X1X40, TR/TX-BLKSCR-M6X1X40, TR/TX-BLK
-
185260996 BRKT-COOLING TUBEBRKT-COOLING TUBE
-
195451785 BRACKET-COOLANT TUBE, 3/4"BRACKET-COOLANT TUBE, 3/4"
-
205415320 HOSE-RADIATOR, 3/4",UPPERHOSE-RADIATOR, 3/4",UPPER
-
215415321 HOSE-RADIATOR, 3/4",LOWERHOSE-RADIATOR, 3/4",LOWER
-
225415325 HOSE-INTERCOOL, OUTLET,3/4",RRHOSE-INTERCOOL, OUTLET,3/4",RR
-
235139654 TUBE-COOLANTTUBE-COOLANT
-
245260107 BRKT-COOLANT TUBEBRKT-COOLANT TUBE
