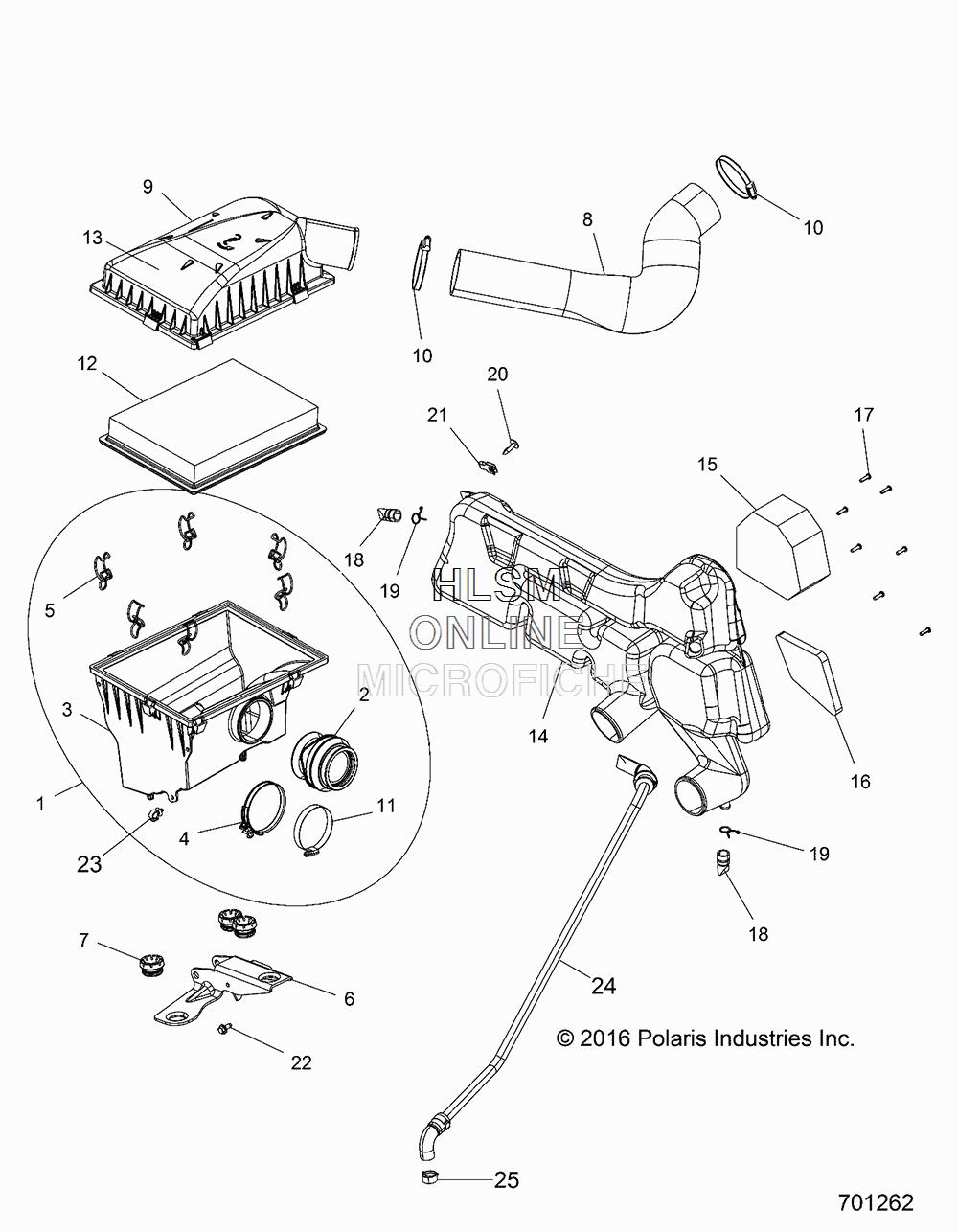

AIR INTAKE SYSTEM для Polaris RZR 570 (MATTE TURBO SILVER) [Z17VHA57AU] - 2017 года выпуска
-
№АртикулНазвание
-
11241047 ASM-AIRBOX, MAIN (INCL. 2-5, 11)ASM-AIRBOX, MAIN (INCL. 2-5, 11)
-
25415864 BOOT-AIRBOXBOOT-AIRBOX
-
35438897 BASE, AIRBOXBASE, AIRBOX
-
47081312 CLAMP, AIRBOXCLAMP, AIRBOX
-
57081707 CLIP, AIRBOXCLIP, AIRBOX
-
65254922-329 BRACKET, MOUNT, BLACKBRACKET, MOUNT, BLACK
-
75412507 GROMMETGROMMET
-
85415098 HOSE, INTAKEHOSE, INTAKE
-
95450157 LID, AIRBOXLID, AIRBOX
-
107080707 CLAMP, NARROW BANDCLAMP, NARROW BAND
-
117080413 CLAMP-BAND, NARROWCLAMP-BAND, NARROW
-
127082241 FILTER-AIRFILTER-AIR
-
137177872 DECAL, FILTER MAINTENANCEDECAL, FILTER MAINTENANCE
-
145450598 BOX, INTAKEBOX, INTAKE
-
155813713 FILTER, ENGINE INFILTER, ENGINE IN
-
165813712 FILTER, CLUTCH INFILTER, CLUTCH IN
-
177512026 SCREWSCREW
-
185412960 CAP, DRAINCAP, DRAIN
-
197080694 CLAMP, HOSECLAMP, HOSE
-
207517685 SCREWSCREW
-
217670145 NUT, UNUT, U
-
227518529 SCREWSCREW
-
237670116 CLIP-ROUTING, .472 B.D., HINGEDCLIP-ROUTING, .472 B.D., HINGED
-
245414167 HOSE-BREATHERHOSE-BREATHER
-
257081026 CLAMP-HOSE, SPRING .81CLAMP-HOSE, SPRING .81
