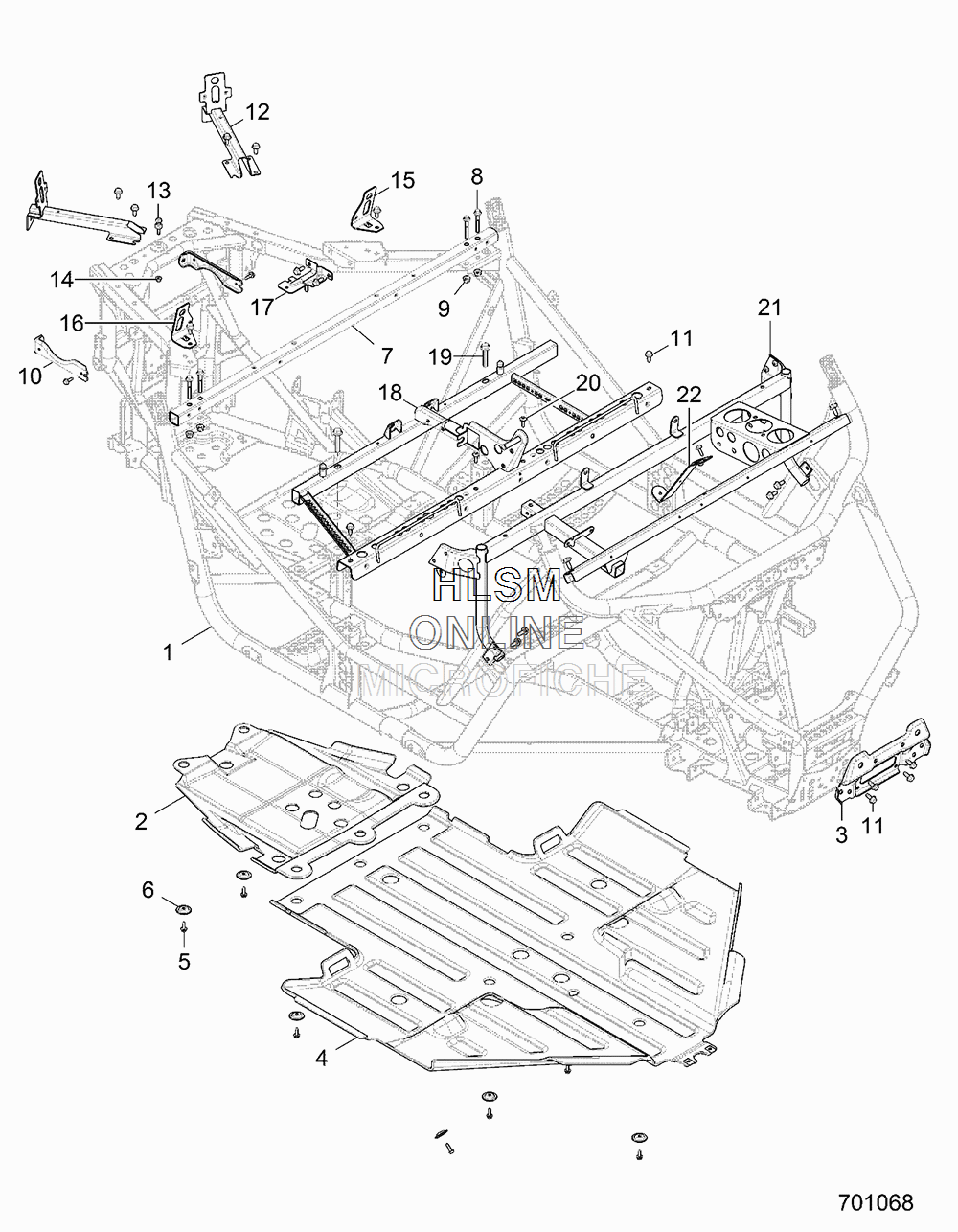

FRAME-MAIN W/ SKID PLATE для Polaris RZR 900 50 IN TRAIL (BLACK PEARL) [Z17VAE87NK] - 2017 года выпуска
-
№АртикулНазвание
-
11022386-458 FRAME, MAIN, MATTE BLACKFRAME, MAIN, MATTE BLACK
-
25450706-070 PLATE, SKID, REAR, BLACKPLATE, SKID, REAR, BLACK
-
35259449-458 BRKT-SUSP MNT, FRONT, MATTE BLACKBRKT-SUSP MNT, FRONT, MATTE BLACK
-
45451171-070 PLATE, SKID, BLACKPLATE, SKID, BLACK
-
57518529 SCREWSCREW
-
67556065 WASHER, SKID PLATEWASHER, SKID PLATE
-
71022849-329 ASM-TUBE, TOP FRAME, ECOATASM-TUBE, TOP FRAME, ECOAT
-
87517281 SCREWSCREW
-
97547332 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
-
105259106 BRACKET, FACIABRACKET, FACIA
-
117518555 BOLTBOLT
-
121020506-458 MOUNT, BODY, MATTE BLACKMOUNT, BODY, MATTE BLACK
-
135139009 PLUNGER, BOX, LATCHPLUNGER, BOX, LATCH
-
147547339 NUTNUT
-
155259103-458 TIEDOWN, FRONT, LEFT HAND, MATTE BLACKTIEDOWN, FRONT, LEFT HAND, MATTE BLACK
-
165263590-458 TIEDOWN, FRONT, RIGHT HAND, MATTE BLACKTIEDOWN, FRONT, RIGHT HAND, MATTE BLACK
-
175259105-329 MOUNT, COIL, MATTE BLACKMOUNT, COIL, MATTE BLACK
-
181020571-329 WELD-SEAT BASE, BLACKWELD-SEAT BASE, BLACK
-
197518474 BOLTBOLT
-
207519650 SCREWSCREW
-
211020984-329 DASH, E-COAT, BLACKDASH, E-COAT, BLACK
-
225257304-329 BRACKET, DIN. MOUNT, BLACKBRACKET, DIN. MOUNT, BLACK
