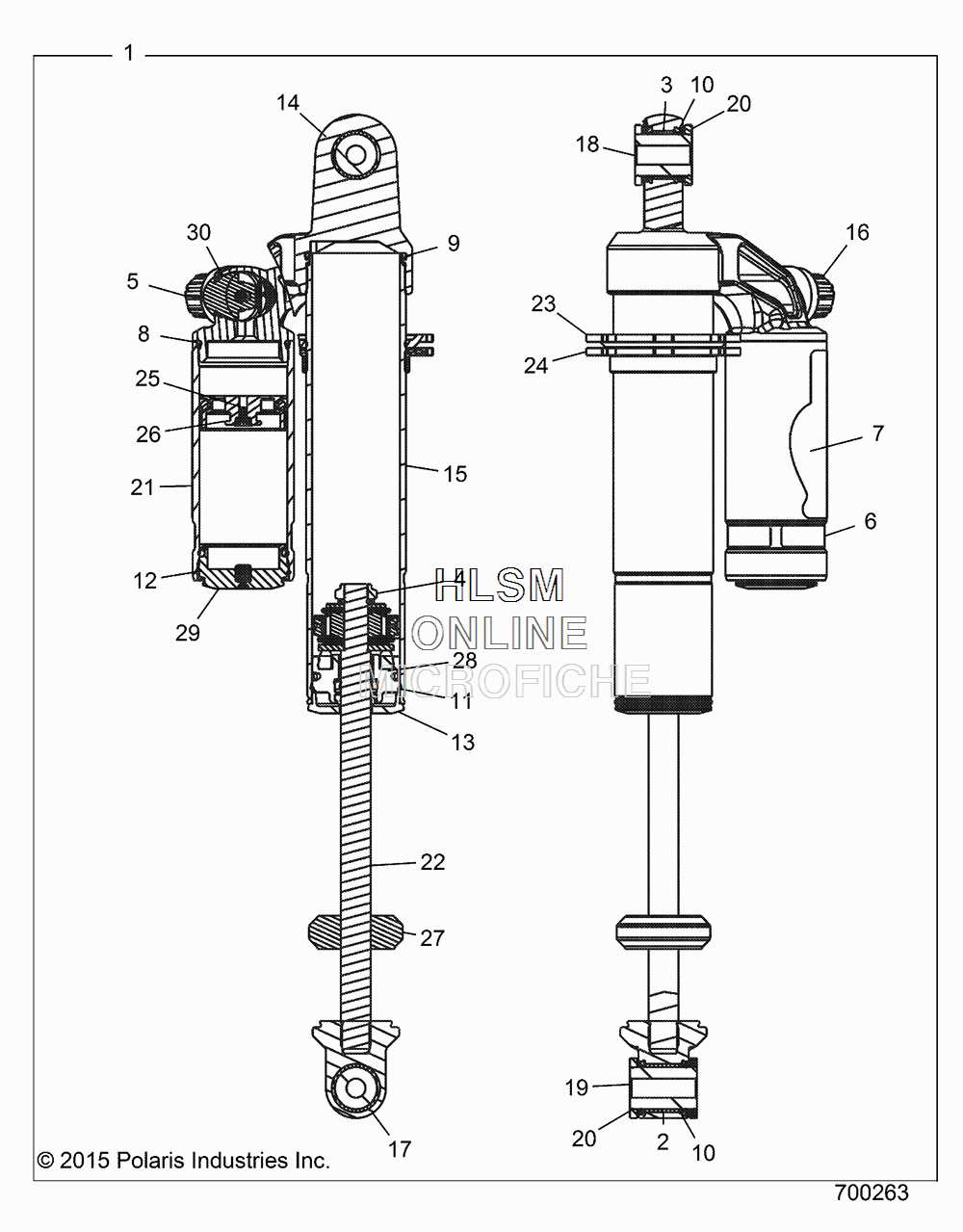

REAR SHOCK INTERNALS для Polaris RZR 900 W/ GPS (BLACK PEARL) [Z17VAX87AK] - 2017 года выпуска
-
№АртикулНазвание
-
17044487 SHOCK, REAR LEFT HAND, 2 RESIVOIRS, PIGGYBACK (INCL ALL)SHOCK, REAR LEFT HAND, 2 RESIVOIRS, PIGGYBACK (INCL ALL)
-
17044488 SHOCK, REAR RIGHT HAND, 2 RESIVOIRS, PIGGYBACK (INCL ALL)SHOCK, REAR RIGHT HAND, 2 RESIVOIRS, PIGGYBACK (INCL ALL)
-
11500838 TOP-OUT (1.570 OD X 0.503 ID X 0.128 TH, 0.620 SHAFT)TOP-OUT (1.570 OD X 0.503 ID X 0.128 TH, 0.620 SHAFT)
-
11500516 BACK-UP (0.750 OD X 0.503 ID X 0.100 TH, 0.620 SHAFT)BACK-UP (0.750 OD X 0.503 ID X 0.100 TH, 0.620 SHAFT)
-
21501035 BUSHING, EYELET .875 SHAFTBUSHING, EYELET .875 SHAFT
-
31501010 BUSHING, EYELETBUSHING, EYELET
-
41500842 FASTENER, STANDARD: NUT, LOCK (1/2-20 X 0.313 TLG)FASTENER, STANDARD: NUT, LOCK (1/2-20 X 0.313 TLG)
-
51501011 SCREW, #4, SS PANSCREW, #4, SS PAN
-
61501012 DECAL, PERF SERIESDECAL, PERF SERIES
-
71501013 DECAL, RESERVOIRDECAL, RESERVOIR
-
81500623 O-RING ((-132) .103 C.S. X 1.737 ID)O-RING ((-132) .103 C.S. X 1.737 ID)
-
91500510 O-RING ((-135) .103 C.S. X 1.925 ID)O-RING ((-135) .103 C.S. X 1.925 ID)
-
101501014 SEAL, WEATHERSEAL, WEATHER
-
111500236 RETAINING RINGRETAINING RING
-
121501015 RING, RET. WIRERING, RET. WIRE
-
131501100 CAP, BEARINGCAP, BEARING
-
141501016 CAP, BODY, PB (USED W/7044487) (LEFT)CAP, BODY, PB (USED W/7044487) (LEFT)
-
141501017 CAP, BODY, PB (USED W/7044488) (RIGHT)CAP, BODY, PB (USED W/7044488) (RIGHT)
-
151501040 BODY, 1.834X9.4TLGBODY, 1.834X9.4TLG
-
161501019 KNOB, LOW SPEEDKNOB, LOW SPEED
-
171501037 EYELETEYELET
-
181501087 SLEEVE, .397 ID X .875 OD X 1.181 TLGSLEEVE, .397 ID X .875 OD X 1.181 TLG
-
191501090 SLEEVE (0.397 ID X 0.875 OD X 1.400 TLG)SLEEVE (0.397 ID X 0.875 OD X 1.400 TLG)
-
201501088 SPACER, .876 ID X 1.25 OD X .150 TLGSPACER, .876 ID X 1.25 OD X .150 TLG
-
211501023 RESERVOIR, 5 IN THD.RESERVOIR, 5 IN THD.
-
221500948 SHAFT, .62X9.8SHAFT, .62X9.8
-
231500872 PRELOAD RING BACK UP (3.250 OD X 0.280 TLG, 2.080-14)PRELOAD RING BACK UP (3.250 OD X 0.280 TLG, 2.080-14)
-
241500873 PRELOAD RING (3.250 OD X 0.515 TLG, 2.080-14)PRELOAD RING (3.250 OD X 0.515 TLG, 2.080-14)
-
251500161 SCREW W/ O-RINGSCREW W/ O-RING
-
261501026 ASM., PISTON, FLOATASM., PISTON, FLOAT
-
271500866 BUMPER:BUMPER:
-
281501185 ASM., BEARINGASM., BEARING
-
291501027 ASM., END CAP, RESERVOIRASM., END CAP, RESERVOIR
-
301501034 ASM., DAMP. ADJ. LSCASM., DAMP. ADJ. LSC
