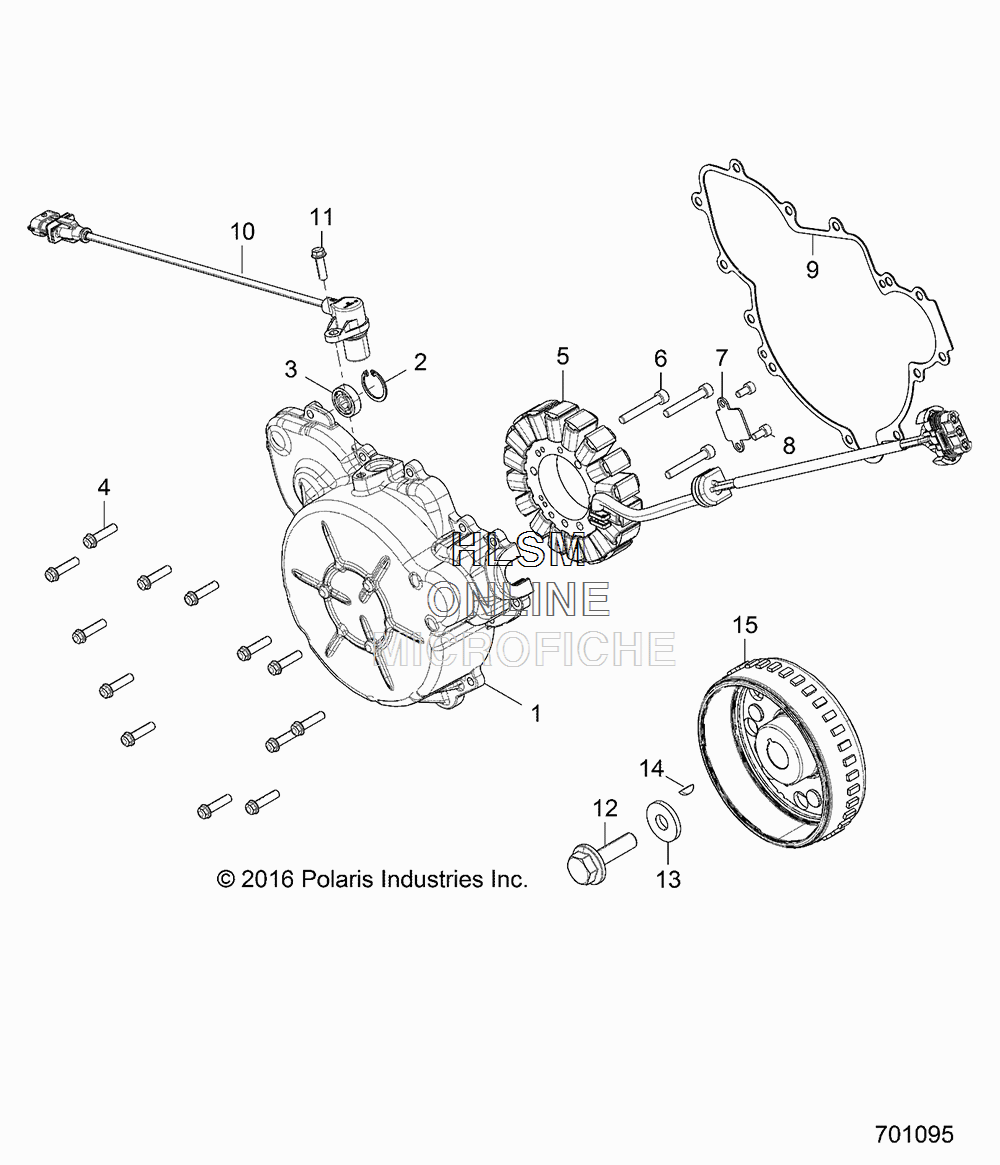

STATOR AND FLYWHEEL W/ COVER для Polaris RZR 900 (WHITE LIGHTNING) [Z17VAA87A2] - 2017 года выпуска
-
№АртикулНазвание
-
11204518 ASM., IGNITION COVER, STARTER BEARING (INCL. 2, 3)ASM., IGNITION COVER, STARTER BEARING (INCL. 2, 3)
-
27710654 RING, SNAP, DIN472, 24X1.2MMRING, SNAP, DIN472, 24X1.2MM
-
33514717 BEARING, BALLBEARING, BALL
-
47519297 SCREWSCREW
-
54014406 STATORSTATOR
-
67510005 SCREWSCREW
-
75255473 BRACKET, RETAINER, WIREBRACKET, RETAINER, WIRE
-
87517847 SCREWSCREW
-
95814160 GASKET, COVER, MAGGASKET, COVER, MAG
-
102411719 SENSOR, CRANK POSITIONSENSOR, CRANK POSITION
-
117518576 SCREW-M6X20, HXFLG, 0600214SCREW-M6X20, HXFLG, 0600214
-
127520178 SCREW-HXFL-M12X1.25X43 12.9SCREW-HXFL-M12X1.25X43 12.9
-
137556885 WSHR-32X12X4, HARDWSHR-32X12X4, HARD
-
147721122 KEY, WOODRUFFKEY, WOODRUFF
-
154014404 FLYWHEELFLYWHEEL
