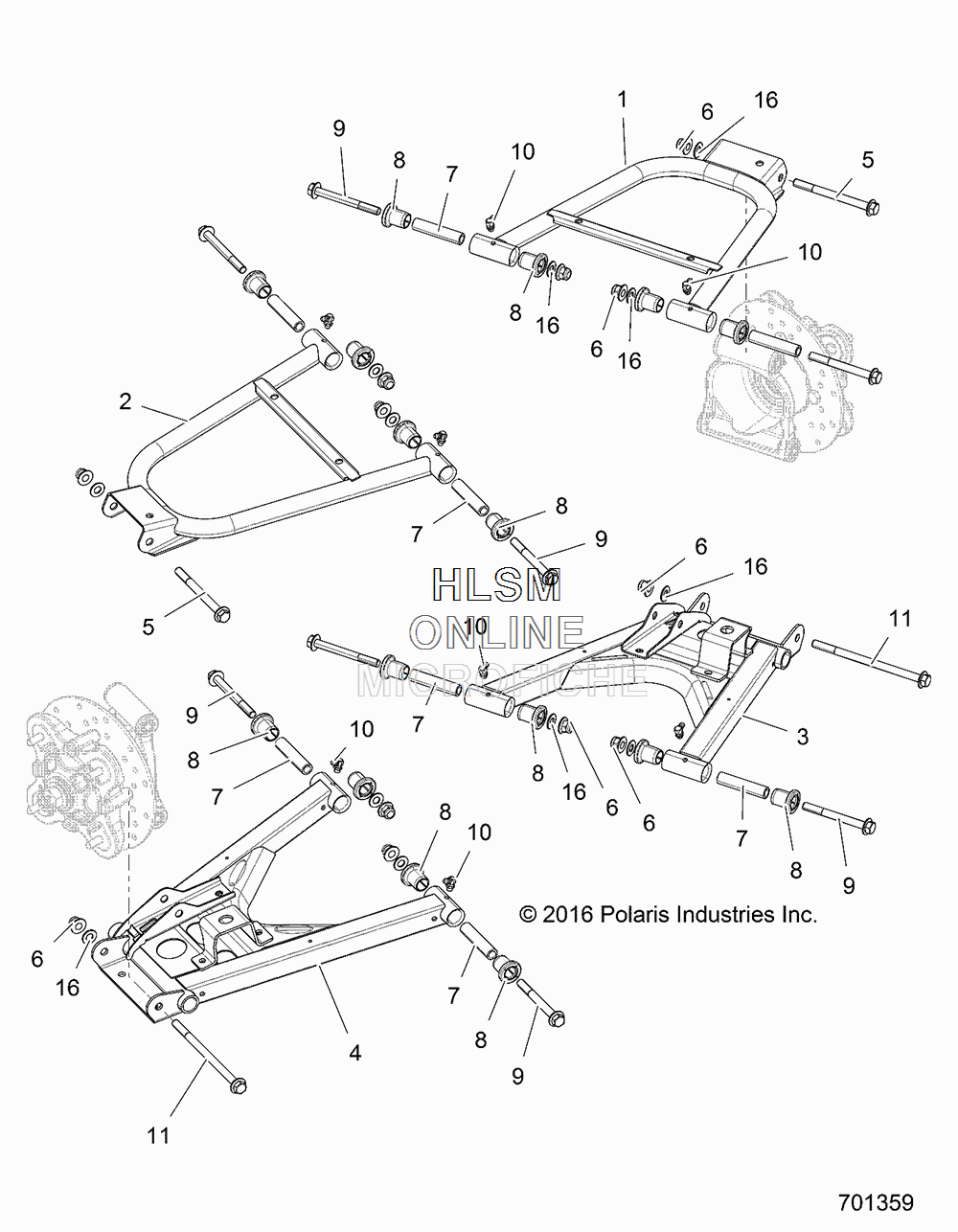

REAR CONTROL ARMS для Polaris RZR S 570 EPS (INDY RED) [Z17VJE57AR] - 2017 года выпуска
-
№АртикулНазвание
-
11018465-293 WELD-CNTRL ARM, REAR, UPR, LEFT HAND, REDWELD-CNTRL ARM, REAR, UPR, LEFT HAND, RED
-
21018466-293 WELD-CNTRL ARM, REAR, UPR, RIGHT HAND, REDWELD-CNTRL ARM, REAR, UPR, RIGHT HAND, RED
-
31018460-293 WELD-CNTRL ARM, REAR, LWR, LEFT HAND, REDWELD-CNTRL ARM, REAR, LWR, LEFT HAND, RED
-
41018461-293 WELD-CNTRL ARM, REAR, LWR, RIGHT HAND, REDWELD-CNTRL ARM, REAR, LWR, RIGHT HAND, RED
-
57519365 SCREWSCREW
-
67547333 NUT, FLANGEDNUT, FLANGED
-
75138797 SHAFT, PIVOT, 70.99MM, 15.88ODSHAFT, PIVOT, 70.99MM, 15.88OD
-
85439874 BUSHINGBUSHING
-
97519043 SCREWSCREW
-
107080510 FITTING, ZERK, 90 DEGFITTING, ZERK, 90 DEG
-
117519042 SCREWSCREW
-
157547333 NUT-M10X1.25, FLG, NYLOC-OLIVE DNUT-M10X1.25, FLG, NYLOC-OLIVE D
-
167556153 WASHER-3/8 FW SAE STL THRU-HRDWASHER-3/8 FW SAE STL THRU-HRD
