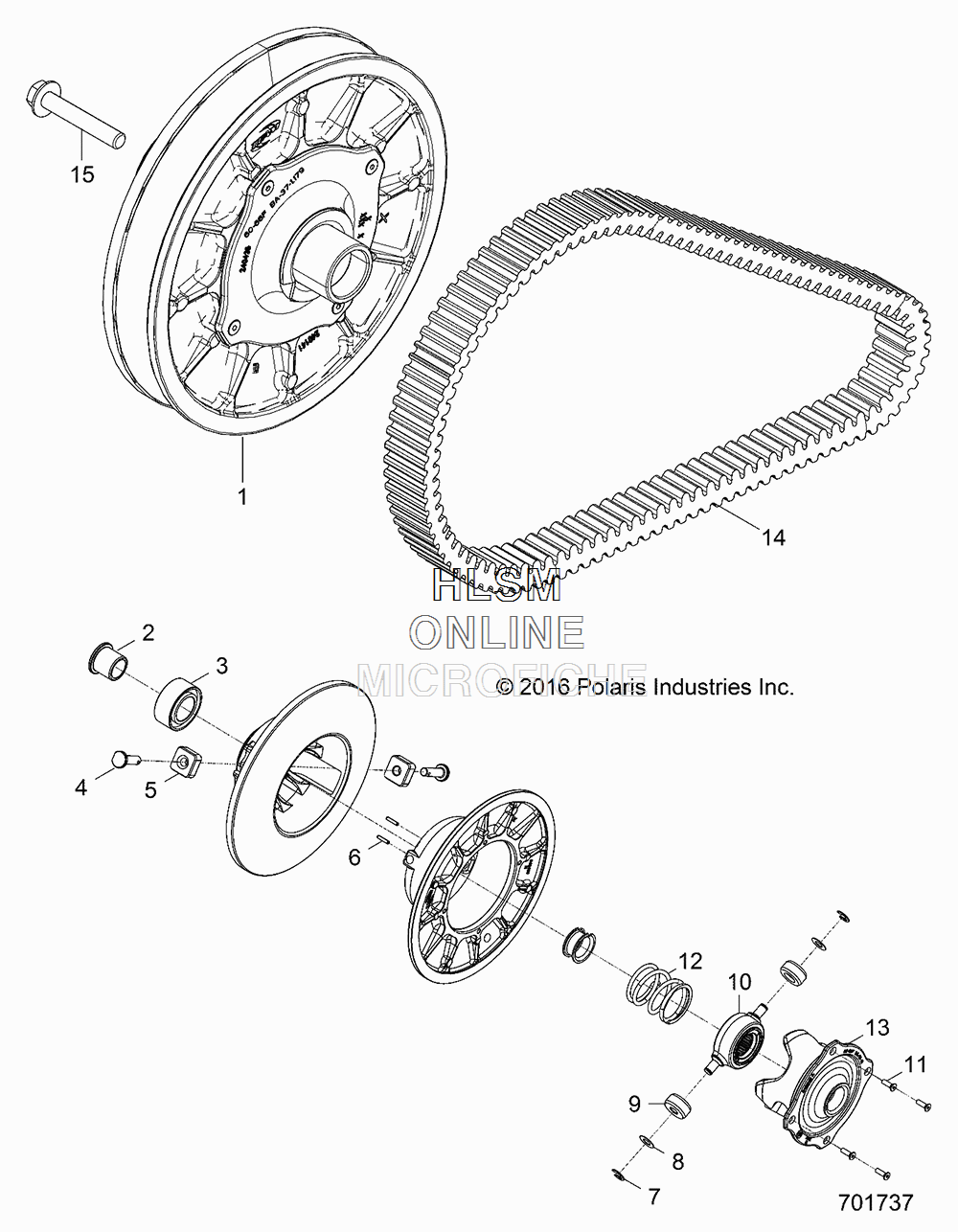

CLUTCH- SECONDARY для Polaris RZR S 900 EPS (PEARL BLACK) [Z17VBE87AK] - 2017 года выпуска
-
№АртикулНазвание
-
11323403 ASM., CLUTCH, DRIVEN (INCL 2-11)ASM., CLUTCH, DRIVEN (INCL 2-11)
-
23235999 BUSHING, TOP HATBUSHING, TOP HAT
-
33514925 BEARINGBEARING
-
43234201 PIN, ROLLERPIN, ROLLER
-
53514926 PUCK, SQUAREPUCK, SQUARE
-
63234202 PIN, SLOTTED SPRINGPIN, SLOTTED SPRING
-
77710523 RING, RETAININGRING, RETAINING
-
87556226 WASHER, THRUSTWASHER, THRUST
-
93514929 ROLLER, CLUTCHROLLER, CLUTCH
-
105140135 SPIDERSPIDER
-
113234754 SCREWSCREW
-
127044505 SPRINGSPRING
-
133235939 CAM ASSEMBLYCAM ASSEMBLY
-
143211172 BELT, DRIVE, 10.5 IN CD, TRI-BLENDBELT, DRIVE, 10.5 IN CD, TRI-BLEND
-
157519306 SCR-HXFL-M10X1.25X60 10.9 ZODSCR-HXFL-M10X1.25X60 10.9 ZOD
