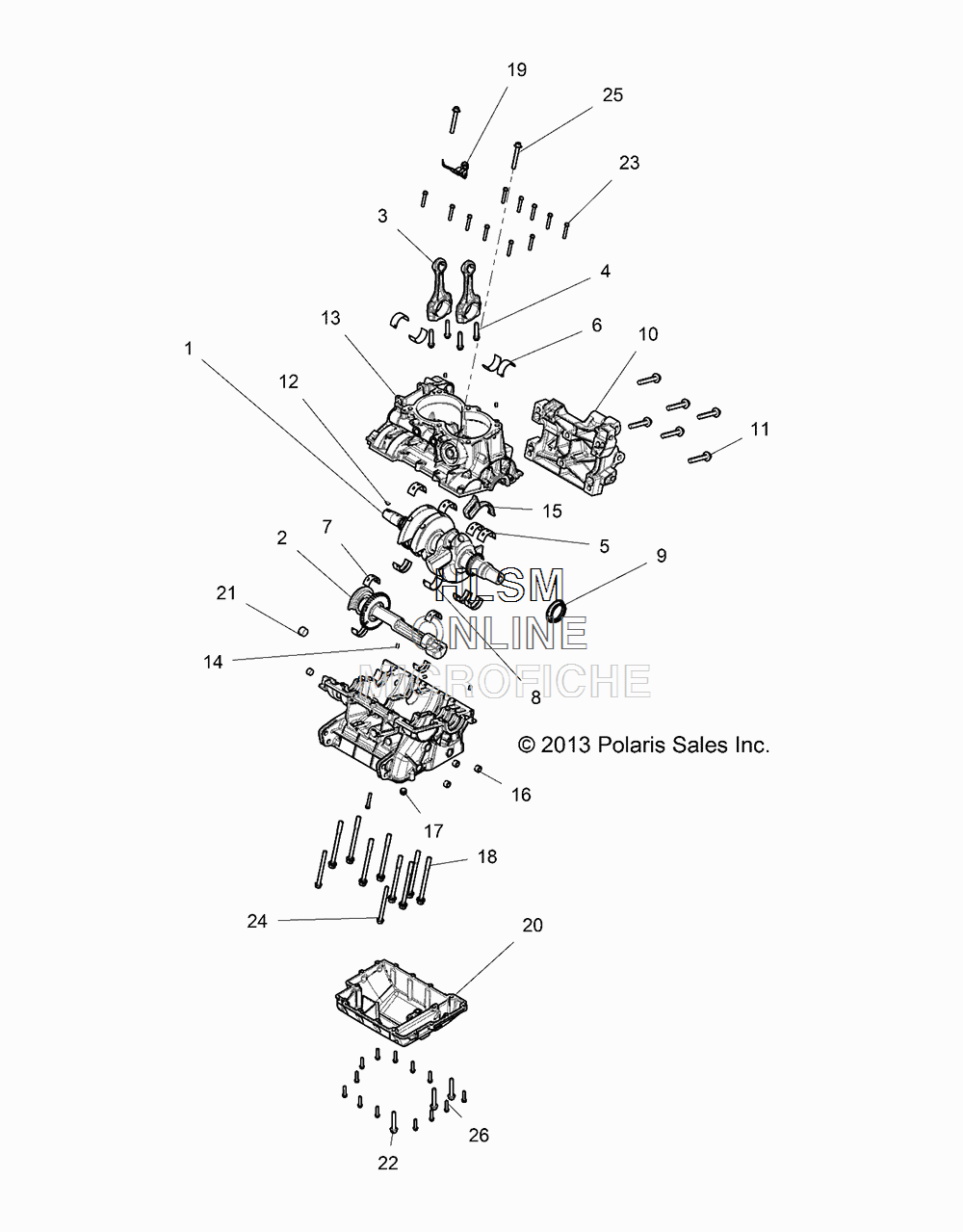

CRANKCASE AND CRANKSHAFT для Polaris RZR XP 4 1000 EPS (WHITE LIGHTNING W/ LIME GREEN) [Z17VFE99LW] (EURO) - 2017 года выпуска
-
№АртикулНазвание
-
11204832 ASM., CRANKSHAFTASM., CRANKSHAFT
-
21204835 ASM., BALANCE SHAFTASM., BALANCE SHAFT
-
31204907 ASM., CONNECTING ROD (INCL. 4)ASM., CONNECTING ROD (INCL. 4)
-
47519310 SCREWSCREW
-
53514662-001 BEARING, MAIN, G-90, 41MM, WHITEBEARING, MAIN, G-90, 41MM, WHITE
-
53514662-002 BEARING, MAIN, G-90, 41MM, BLUEBEARING, MAIN, G-90, 41MM, BLUE
-
53514662-003 BEARING, MAIN, G-90, 41MM, GREENBEARING, MAIN, G-90, 41MM, GREEN
-
53514662-004 BEARING, MAIN, G-90, 41MM, YELLOWBEARING, MAIN, G-90, 41MM, YELLOW
-
53514662-005 BEARING, MAIN, G-90, 41MM, REDBEARING, MAIN, G-90, 41MM, RED
-
63514663-001 BEARING, CONNECTING ROD, G-90, 41MM, WHITEBEARING, CONNECTING ROD, G-90, 41MM, WHITE
-
63514663-002 BEARING, CONNECTING ROD, G-90, 41MM, BLUEBEARING, CONNECTING ROD, G-90, 41MM, BLUE
-
63514663-003 BEARING, CONNECTING ROD, G-90, 41MM, GREENBEARING, CONNECTING ROD, G-90, 41MM, GREEN
-
63514663-004 BEARING, CONNECTING ROD, G-90, 41MM, YELLOWBEARING, CONNECTING ROD, G-90, 41MM, YELLOW
-
73514756 BEARING, BALANCE SHAFTBEARING, BALANCE SHAFT
-
83514803-002 BEARING, MAIN, BLUEBEARING, MAIN, BLUE
-
83514803-003 BEARING, MAIN, GREENBEARING, MAIN, GREEN
-
83514803-004 BEARING, MAIN, YELLOWBEARING, MAIN, YELLOW
-
93610176 SEAL, FLANGESEAL, FLANGE
-
105137795 BRACKETBRACKET
-
117520467 BOLTBOLT
-
127721122 KEY, WOODRUFFKEY, WOODRUFF
-
132206114 KIT, CRANKCASE (INCL. 14-19)KIT, CRANKCASE (INCL. 14-19)
-
145136879 PIN, DOWELPIN, DOWEL
-
155452616 DIVERTER, OIL DRAINDIVERTER, OIL DRAIN
-
167052413 PLUGPLUG
-
177518835 PLUGPLUG
-
187519141 SCREWSCREW
-
193022856 JET, PISTONJET, PISTON
-
205137873 COVER, SUMPCOVER, SUMP
-
217051520 PLUGPLUG
-
227517793 SCREWSCREW
-
237518578 SCREWSCREW
-
247519154 SCREWSCREW
-
257519186 SCREWSCREW
-
267519297 SCREWSCREW
