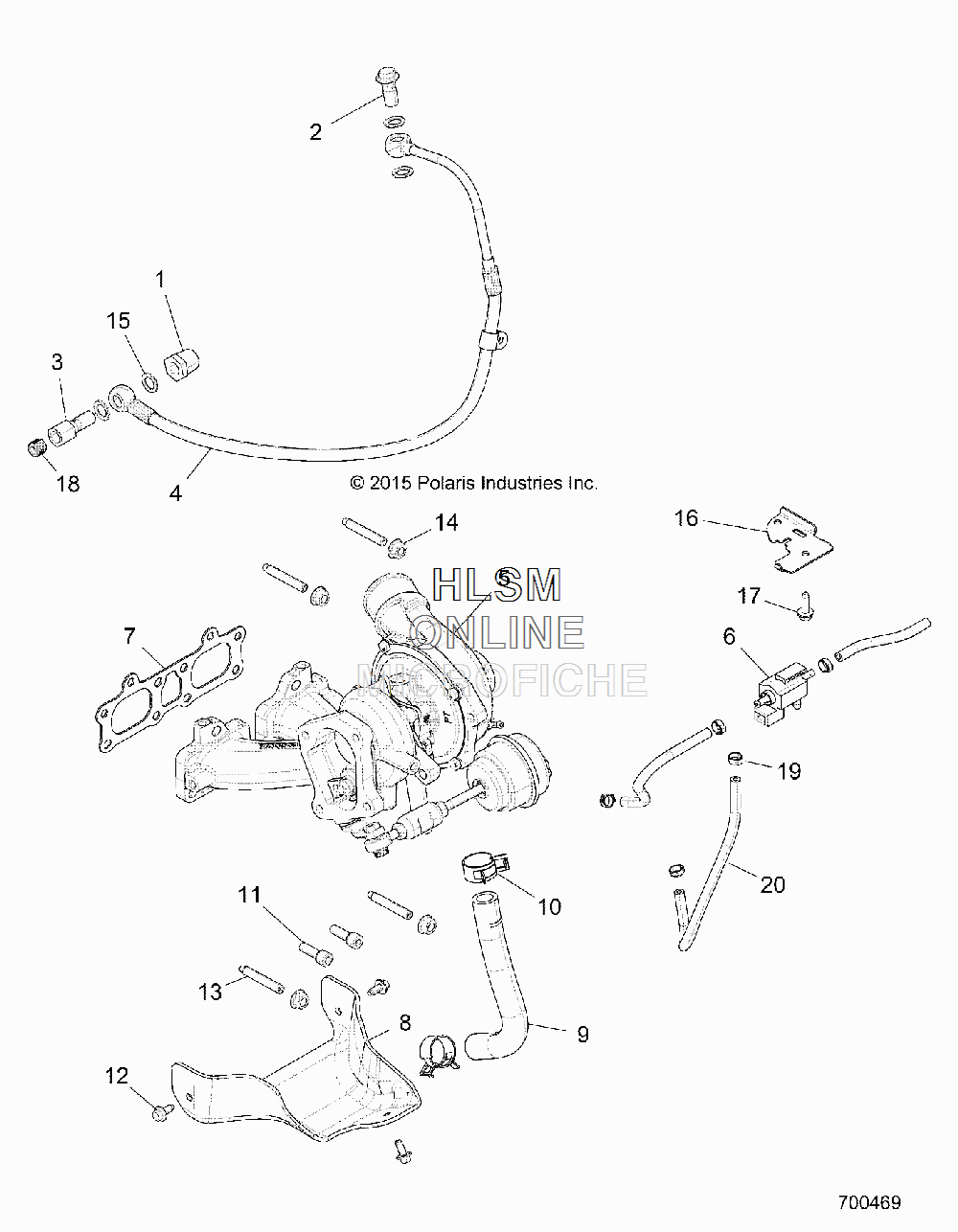

TURBO CHARGER MOUNTING для Polaris RZR XP 4 TURBO INTL (GREEN) [Z17VFE92NG] - 2017 года выпуска
-
№АртикулНазвание
-
12521491 ADAPTER-4AN, 1/2NPTADAPTER-4AN, 1/2NPT
-
22521508 BOLT-BANJO, M12X1.5BOLT-BANJO, M12X1.5
-
32521509 BOLT-BANJO, M12X1.5-1/4NPTBOLT-BANJO, M12X1.5-1/4NPT
-
42521645 ASM-OIL LINE, SUPPLYASM-OIL LINE, SUPPLY
-
53022792 ASM-TURBO, 588ASM-TURBO, 588
-
64011285 VALVE, ELECTRONIC BOOST CONTROLVALVE, ELECTRONIC BOOST CONTROL
-
73610184 GASKET-EXHAUST SEALGASKET-EXHAUST SEAL
-
85260460 SHIELD-HEAT, TURBO, LOWERSHIELD-HEAT, TURBO, LOWER
-
95415727 HOSE-DRAIN, FORMEDHOSE-DRAIN, FORMED
-
107081825 CLAMP-HOSE, SPRING, 24MMCLAMP-HOSE, SPRING, 24MM
-
117517322 SCR-M8X1.25X25, HX/SOC/SEMS-YSCR-M8X1.25X25, HX/SOC/SEMS-Y
-
127520291 SCR-HHSEMS-M6X1.0X12 A286, LOCKSCR-HHSEMS-M6X1.0X12 A286, LOCK
-
137520377 STUD-M8X1.25X45, SOCKETSTUD-M8X1.25X45, SOCKET
-
147546805 NUT-HXFLGHD, M8, 0600087NUT-HXFLGHD, M8, 0600087
-
157556937 WASHER-COPPER SEALINGWASHER-COPPER SEALING
-
165261420 BRKT-BOOST CONTROLLERBRKT-BOOST CONTROLLER
-
177518529 SCR-M6X1.0X20, HXHD, FLG, TDFM, BLSCR-M6X1.0X20, HXHD, FLG, TDFM, BL
-
187518835 PLUG-HEX SOCKET, 1/4X18, SEALANTPLUG-HEX SOCKET, 1/4X18, SEALANT
-
197082109 CLAMP-OETIKER, 16700005-10.0CLAMP-OETIKER, 16700005-10.0
-
208450153 LINE-BOOST, 3/16 IDLINE-BOOST, 3/16 ID
