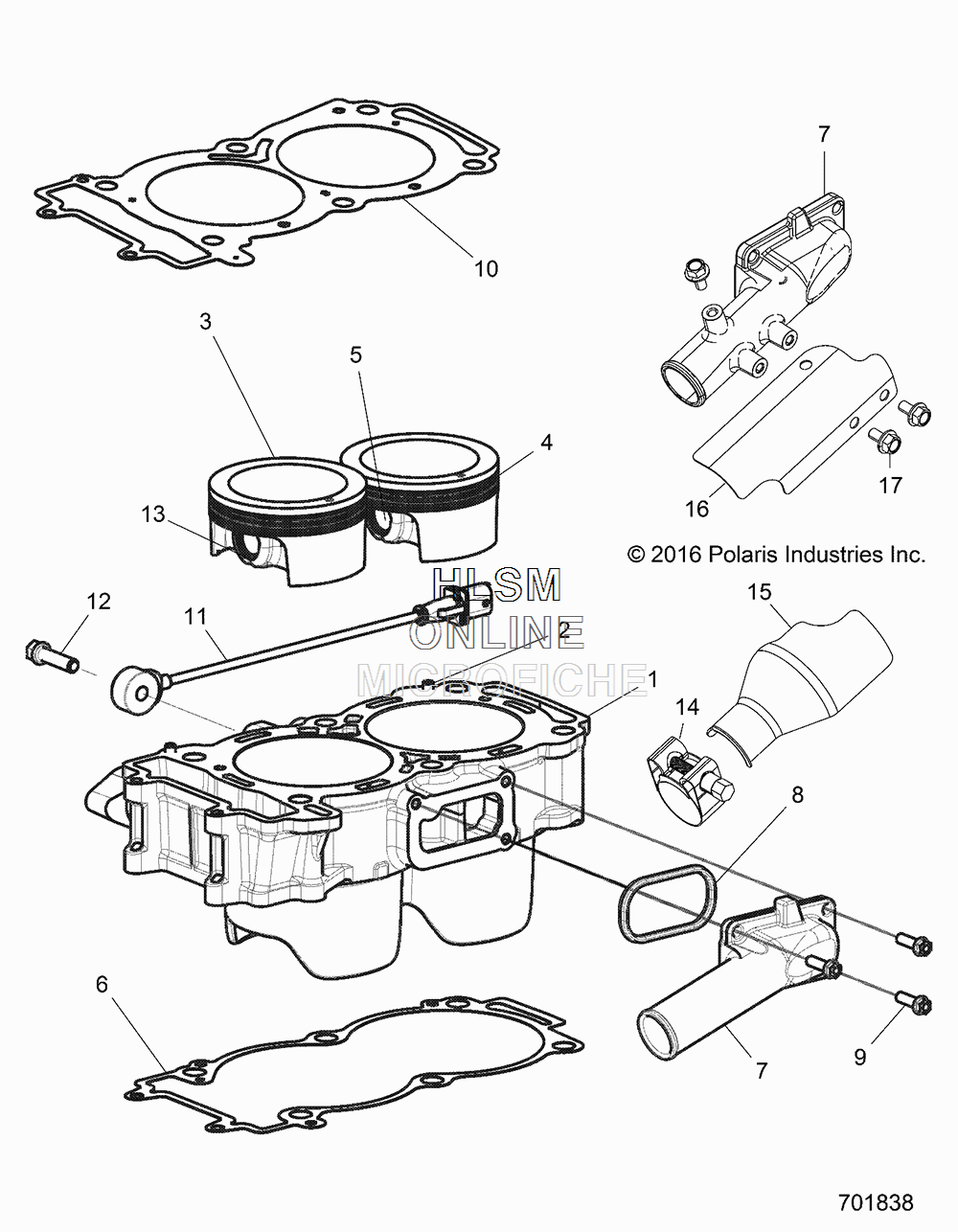

PISTON AND CYLINDER для Polaris RZR XP TURBO EPS (TITANIUM MATTE METALLIC) [Z17VDE92AM] - 2017 года выпуска
-
№АртикулНазвание
-
13023035 ASM., CYLINDER (INCL. 2)ASM., CYLINDER (INCL. 2)
-
25132835 PIN, DOWELPIN, DOWEL
-
32206216 ASM., PISTON (INCL. 4, 5, 13)ASM., PISTON (INCL. 4, 5, 13)
-
42206217 KIT, PISTON RINGS (INCL. SET FOR 1 PISTON)KIT, PISTON RINGS (INCL. SET FOR 1 PISTON)
-
53022291 PIN, PISTON, 22X12.8X56.6MMPIN, PISTON, 22X12.8X56.6MM
-
65253037 GASKET, BASE, 2 CYLGASKET, BASE, 2 CYL
-
75632557 COVER, WATER INLET, CAST (TO 11/21/16)COVER, WATER INLET, CAST (TO 11/21/16)
-
75141311 COVER-WATER INLET, MACH (FROM 11/21/16)COVER-WATER INLET, MACH (FROM 11/21/16)
-
85813736 GASKET, WATER, INLETGASKET, WATER, INLET
-
97518576 SCREWSCREW
-
105814437 GASKET, CYLINDER, HEADGASKET, CYLINDER, HEAD
-
112410369 SENSOR-DETONATION BOSCHSENSOR-DETONATION BOSCH
-
127517262 SCREWSCREW
-
137710479 RING-RTNG, RND, 22.0X1.6, 0600102RING-RTNG, RND, 22.0X1.6, 0600102
-
143023322 CLAMP-HOSE-SHIELD (BUILT FROM 10/12/16 TO 11/21/16)CLAMP-HOSE-SHIELD (BUILT FROM 10/12/16 TO 11/21/16)
-
155264168 SHIELD HEAT-COOLANT (BUILT FROM 10/12/16 TO 11/21/16)SHIELD HEAT-COOLANT (BUILT FROM 10/12/16 TO 11/21/16)
-
165264204 SHIELD HEAT BOLTED-COOLANT (BUILT AFTER 11/22/16)SHIELD HEAT BOLTED-COOLANT (BUILT AFTER 11/22/16)
-
177520710 SCR-HXFL-M6X1.0X12 8.8 (BUILT AFTER 11/22/16)SCR-HXFL-M6X1.0X12 8.8 (BUILT AFTER 11/22/16)
