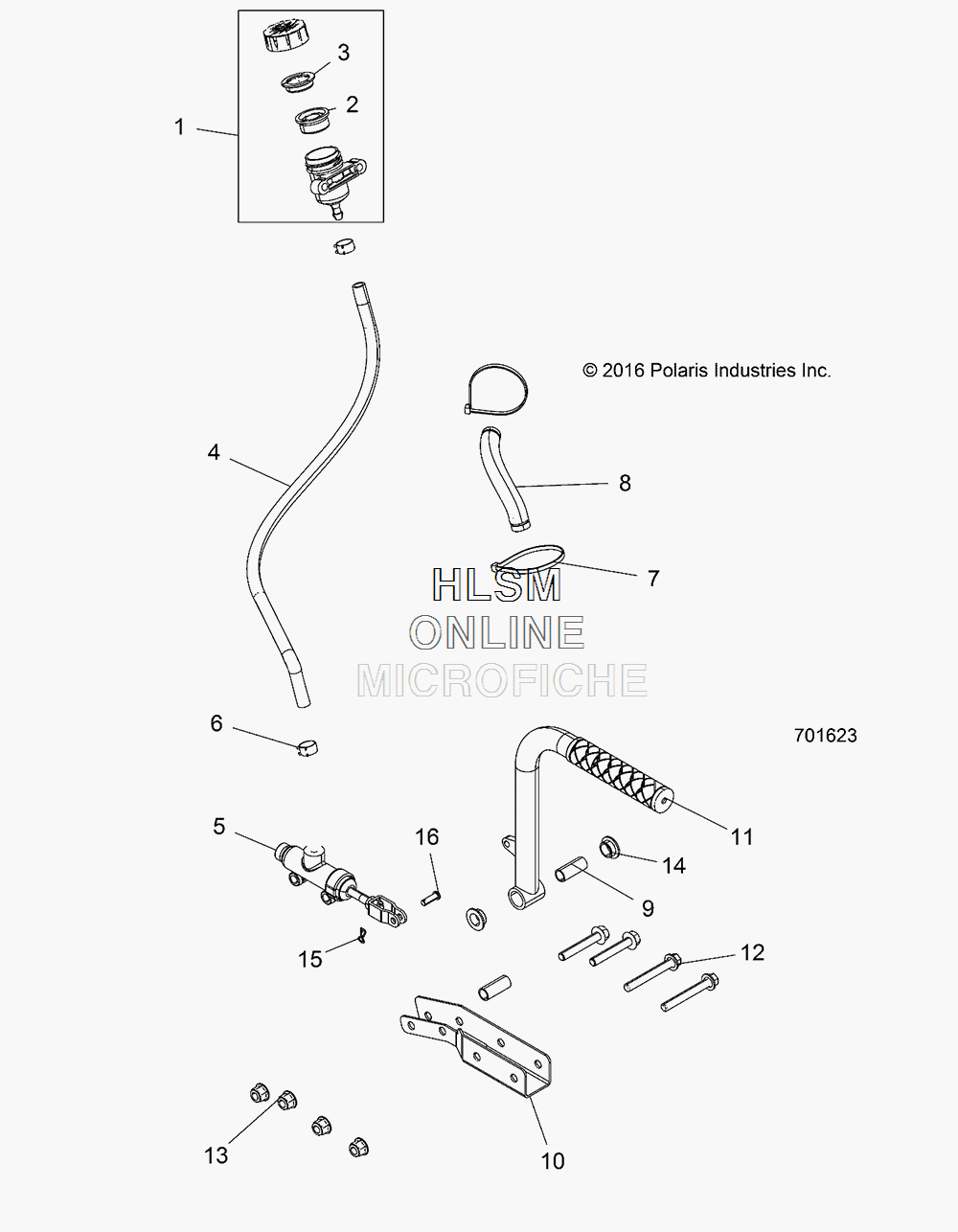

BRAKES - SECONDARY BRAKE для Polaris RZR XP TURBO TRACTOR [Z17VDS92CM] - 2017 года выпуска
-
№АртикулНазвание
-
11911224 ASM-RESERVOIR, BRAKE, TALL, 2-EAR (INCL. 1-3)ASM-RESERVOIR, BRAKE, TALL, 2-EAR (INCL. 1-3)
-
25413262 DIAPHRAGM-RESERVOIR, BRAKEDIAPHRAGM-RESERVOIR, BRAKE
-
35437041 RING-RESERVOIR, BRAKERING-RESERVOIR, BRAKE
-
41911267-520 HOSE-RESERVOIR, BRAKE, 520MMHOSE-RESERVOIR, BRAKE, 520MM
-
51911551 ASM-M/CYL FOOT, 3/4 IN, MT, DOWNASM-M/CYL FOOT, 3/4 IN, MT, DOWN
-
67080003 HOSE CLAMP, REDHOSE CLAMP, RED
-
77080138 PANDUIT STRAPPANDUIT STRAP
-
88360052-13 TUBING-CONVOLUTED, .50 ID, 13CMTUBING-CONVOLUTED, .50 ID, 13CM
-
95135720 SPACER-12.7X10.2X30.5MMSPACER-12.7X10.2X30.5MM
-
105263350-458 BRACKET, SCNDRY BK, RZR T, TR, BLACKBRACKET, SCNDRY BK, RZR T, TR, BLACK
-
115416240-070 GRIP-HANDLEBAR, TR, BLACKGRIP-HANDLEBAR, TR, BLACK
-
127517793 SCR-M8X1.25X50 HX/FL-YSCR-M8X1.25X50 HX/FL-Y
-
137547332 NUT-M8X1.25, FLG, NYLOC-OLIVE DNUT-M8X1.25, FLG, NYLOC-OLIVE D
-
145439274 BUSHING-PEDAL PIVOTBUSHING-PEDAL PIVOT
-
157661140 PIN-CLIP, 14MMPIN-CLIP, 14MM
-
167661843 PIN-CLEVIS, 1/4 X 3/4 -YPIN-CLEVIS, 1/4 X 3/4 -Y
