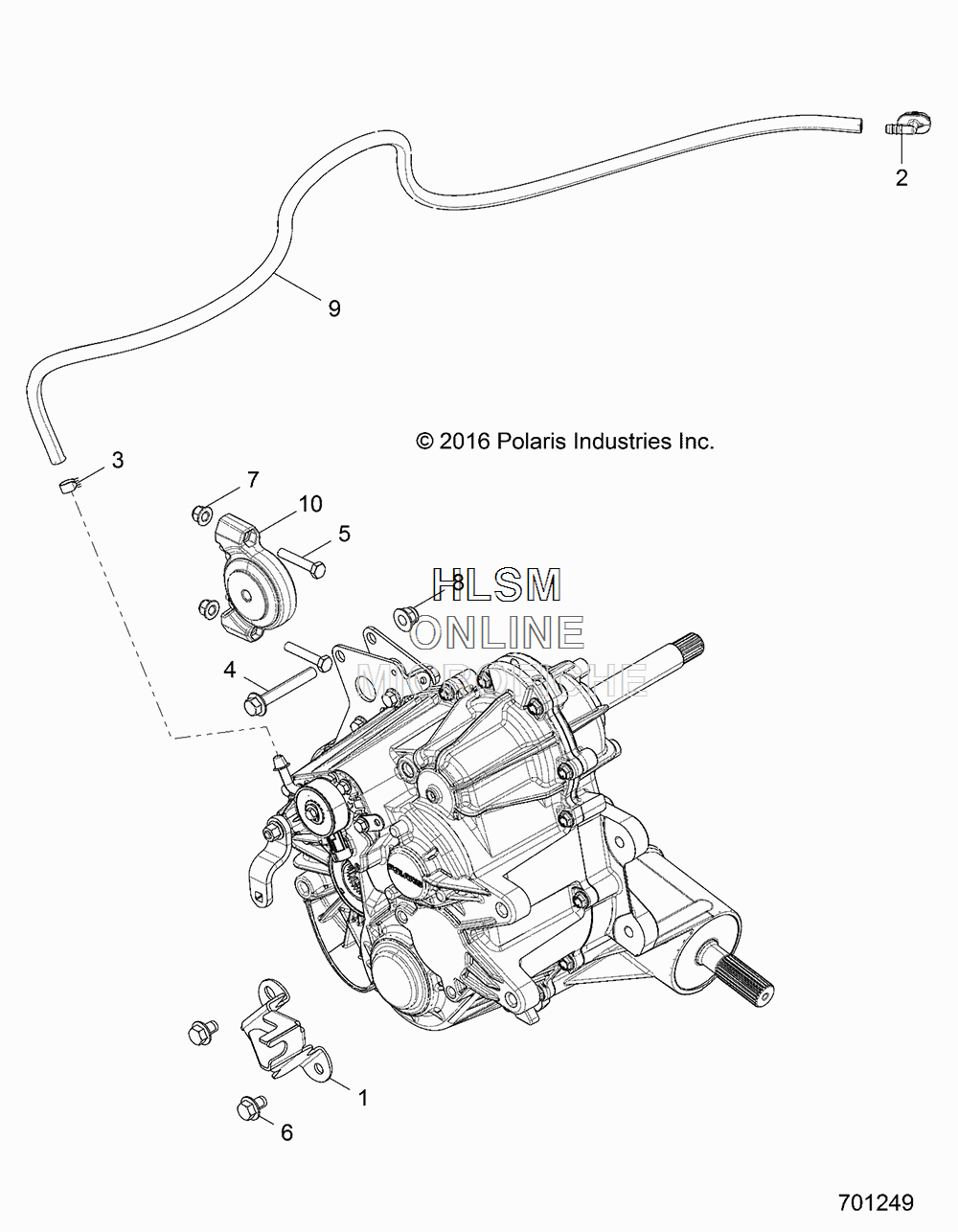

GEARCASE - MAIN - MOUNTING для Polaris RZR 570 (WHITE LIGHTNING) [Z18VHA57B2] - 2018 года выпуска
-
№АртикулНазвание
-
15255039-329 BRKT-SHIFT CABLE, BLACKBRKT-SHIFT CABLE, BLACK
-
25453464 FITTING-VENT LINE, 90FITTING-VENT LINE, 90
-
37081432 CLAMP-HOSE, 17/32, GREENCLAMP-HOSE, 17/32, GREEN
-
47518561 BOLT-M10X1.25X70, HXFLG-OLIVE DBOLT-M10X1.25X70, HXFLG-OLIVE D
-
57519097 SCR-HH M8X1.25X45 8.8 ZODSCR-HH M8X1.25X45 8.8 ZOD
-
67519374 SCR-HXFL-M10X1.25X16 8.8 ZOD NSCR-HXFL-M10X1.25X16 8.8 ZOD N
-
77547332 NUT-M8X1.25, FLG, NYLOC-OLIVE DNUT-M8X1.25, FLG, NYLOC-OLIVE D
-
87547333 NUT-M10X1.25, FLG, NYLOC-OLIVE DNUT-M10X1.25, FLG, NYLOC-OLIVE D
-
98450040-102 FUEL LINE 1/4 INSAE #30R7, 102CMFUEL LINE 1/4 INSAE #30R7, 102CM
-
101332955 MOUNT-ISOLATOR, DRIVELINEMOUNT-ISOLATOR, DRIVELINE
