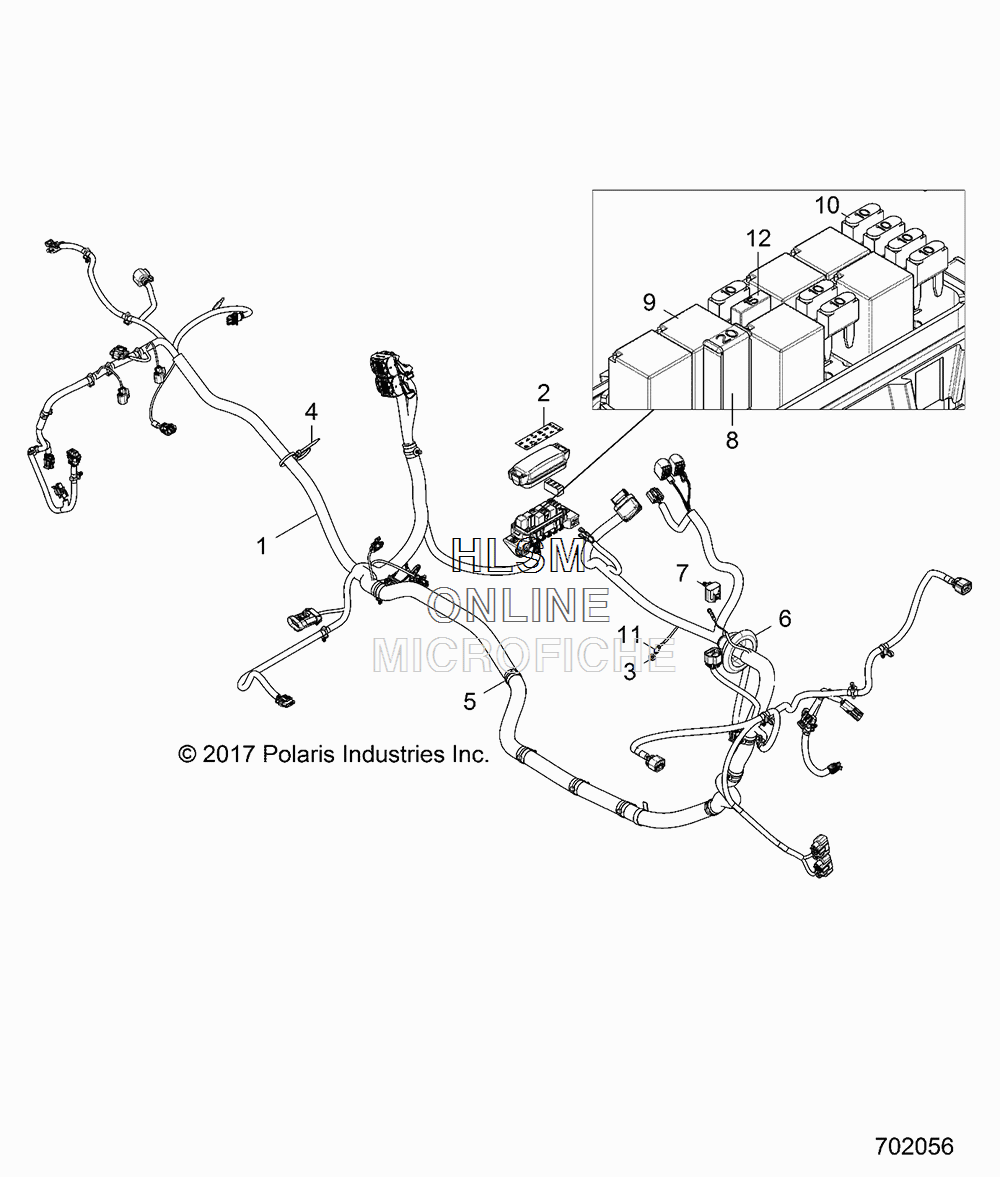

WIRE HARNESS для Polaris RZR 900 50 INCH (WHITE LIGHTNING) [Z18VAA87B2] - 2018 года выпуска
-
№АртикулНазвание
-
12414024 HARNESS-CHASSIS, RZR, 900 (INCL. 2-12)HARNESS-CHASSIS, RZR, 900 (INCL. 2-12)
-
27186513 LABEL-FUSE BOXLABEL-FUSE BOX
-
37082020 CLIP-ROUTING, DIN BOXCLIP-ROUTING, DIN BOX
-
47081916 STRAP-PANDUIT, DOUBLE LOOP, 260 MMSTRAP-PANDUIT, DOUBLE LOOP, 260 MM
-
57081496 CLIP-ROUTINGCLIP-ROUTING
-
65813954 GROMMET-65MM, BLACKGROMMET-65MM, BLACK
-
74012170 COVER-DIAGNOSTIC, W/CLIPCOVER-DIAGNOSTIC, W/CLIP
-
84011372 BREAKER-CIRCUIT, 20 AMPBREAKER-CIRCUIT, 20 AMP
-
94011283 RELAY-SPST, SERIES 303, SEALED, 12V, 20ARELAY-SPST, SERIES 303, SEALED, 12V, 20A
-
102434016 FUSE-IGNITION, 10 AMPFUSE-IGNITION, 10 AMP
-
112413217 LED-PANEL MNT, 12V, BLUELED-PANEL MNT, 12V, BLUE
-
122410280 FUSE-MINI BLADE, 15 AMPFUSE-MINI BLADE, 15 AMP
