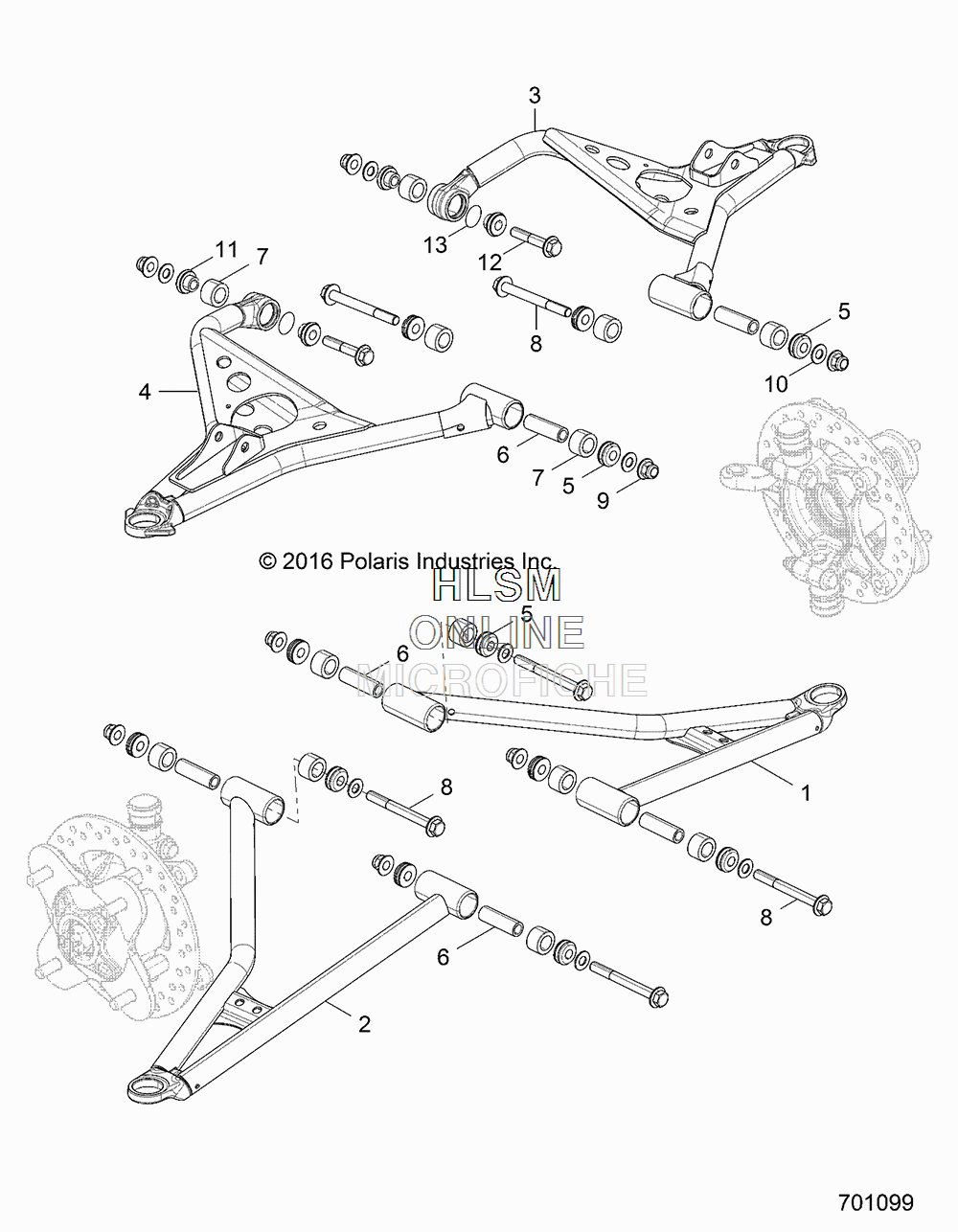

FRONT CONTROL ARMS для Polaris RZR 900 EPS 50 INCH (TITANIUM METALLIC) [Z18VAE87BM] - 2018 года выпуска
-
№АртикулНазвание
-
11021404-458 WELD-CTRL ARM, LWR, FRT, LEFT HAND, 50, BLWELD-CTRL ARM, LWR, FRT, LEFT HAND, 50, BL
-
21021405-458 WELD-CTRL ARM, LWR, FRT, RIGHT HAND, 50, BLWELD-CTRL ARM, LWR, FRT, RIGHT HAND, 50, BL
-
31021406-458 WELD-CTRL ARM, UPR, FRT, LEFT HAND, 50, BLWELD-CTRL ARM, UPR, FRT, LEFT HAND, 50, BL
-
41021407-458 WELD-CTRL ARM, UPR, FRT, RIGHT HAND, 50, BLWELD-CTRL ARM, UPR, FRT, RIGHT HAND, 50, BL
-
51543611 ASM-PIVOT CAP, SEALED, M10ASM-PIVOT CAP, SEALED, M10
-
65139966 SHAFT-PIVOT, SHORT, M10SHAFT-PIVOT, SHORT, M10
-
75452233 BUSHING-STANDARD, SUSP, M10BUSHING-STANDARD, SUSP, M10
-
87519043 SCREW, HEX FLANGESCREW, HEX FLANGE
-
97547333 NUTNUT
-
107556153 WASHERWASHER
-
111543735 ASM-PIVOT CAP, SEALED, SLIM, M10ASM-PIVOT CAP, SEALED, SLIM, M10
-
127519285 SCREW, HEX FLANGESCREW, HEX FLANGE
-
137710845 28MM SPIRAL RING, STEEL28MM SPIRAL RING, STEEL
