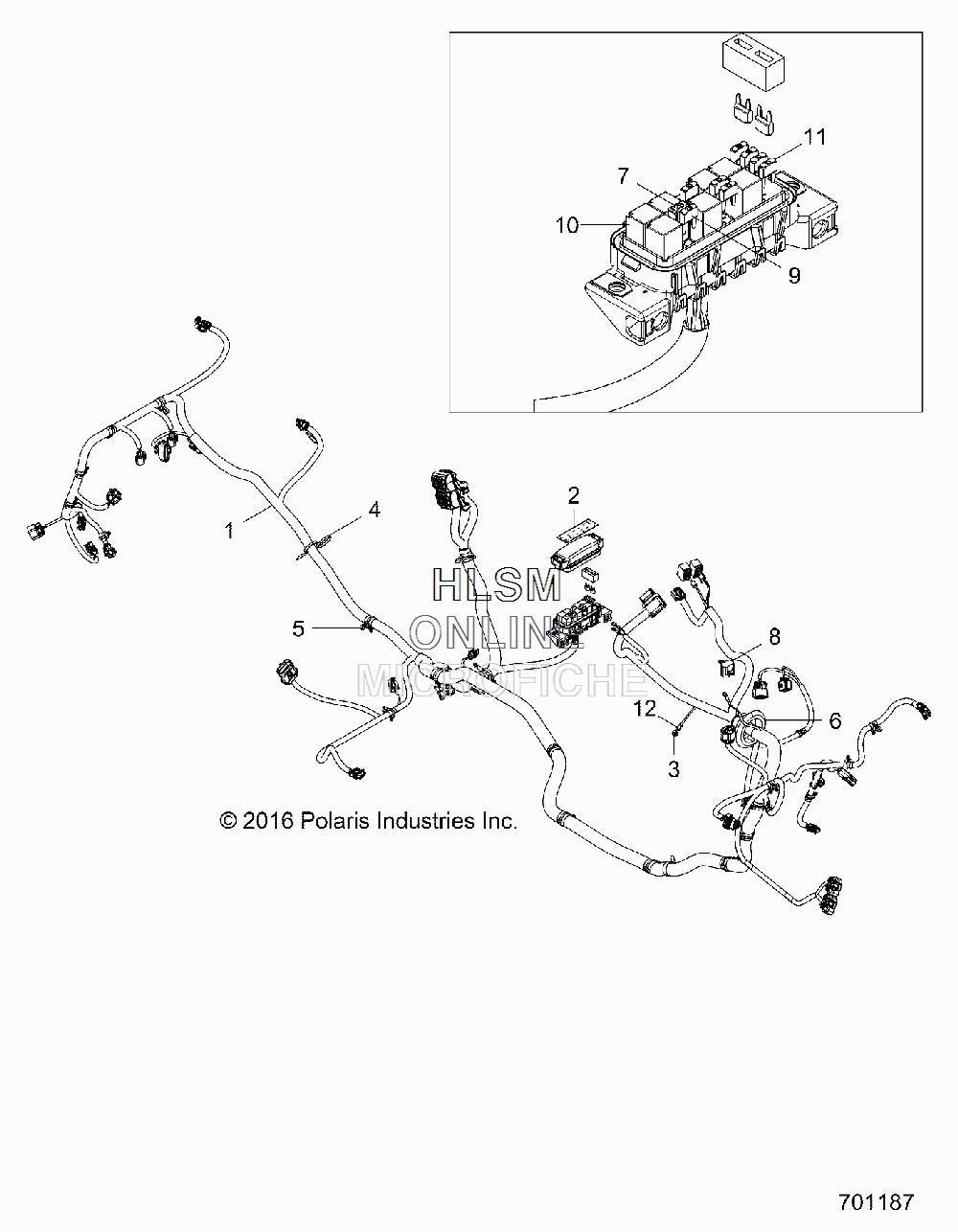

WIRE HARNESS для Polaris RZR XP 1000 [Z18VDE99LW] - 2018 года выпуска
-
№АртикулНазвание
-
12413981 HARNESS-CHASSIS, EPS, RZR, 64 (INCL. ALL)HARNESS-CHASSIS, EPS, RZR, 64 (INCL. ALL)
-
27184131 LABEL-FUSE BOXLABEL-FUSE BOX
-
37082020 CLIP-ROUTING, DIN BOXCLIP-ROUTING, DIN BOX
-
47081916 STRAP-PANDUIT, DOUBLE LOOP, 260 MMSTRAP-PANDUIT, DOUBLE LOOP, 260 MM
-
57081496 CLIP-ROUTINGCLIP-ROUTING
-
65813954 GROMMET-65MM, BLACKGROMMET-65MM, BLACK
-
74015771 BREAKER-CIRCUIT, 25 AMPBREAKER-CIRCUIT, 25 AMP
-
84012170 COVER-DIAGNOSTIC, W/CLIPCOVER-DIAGNOSTIC, W/CLIP
-
94011653 FUSE-25A, MINI BLADEFUSE-25A, MINI BLADE
-
104011283 RELAY-SPST, SERIES 303, SEALEDRELAY-SPST, SERIES 303, SEALED
-
112434016 FUSE-IGNITION, 10 AMPFUSE-IGNITION, 10 AMP
-
122413217 LED-PANEL MNT, 12V, BLUELED-PANEL MNT, 12V, BLUE
