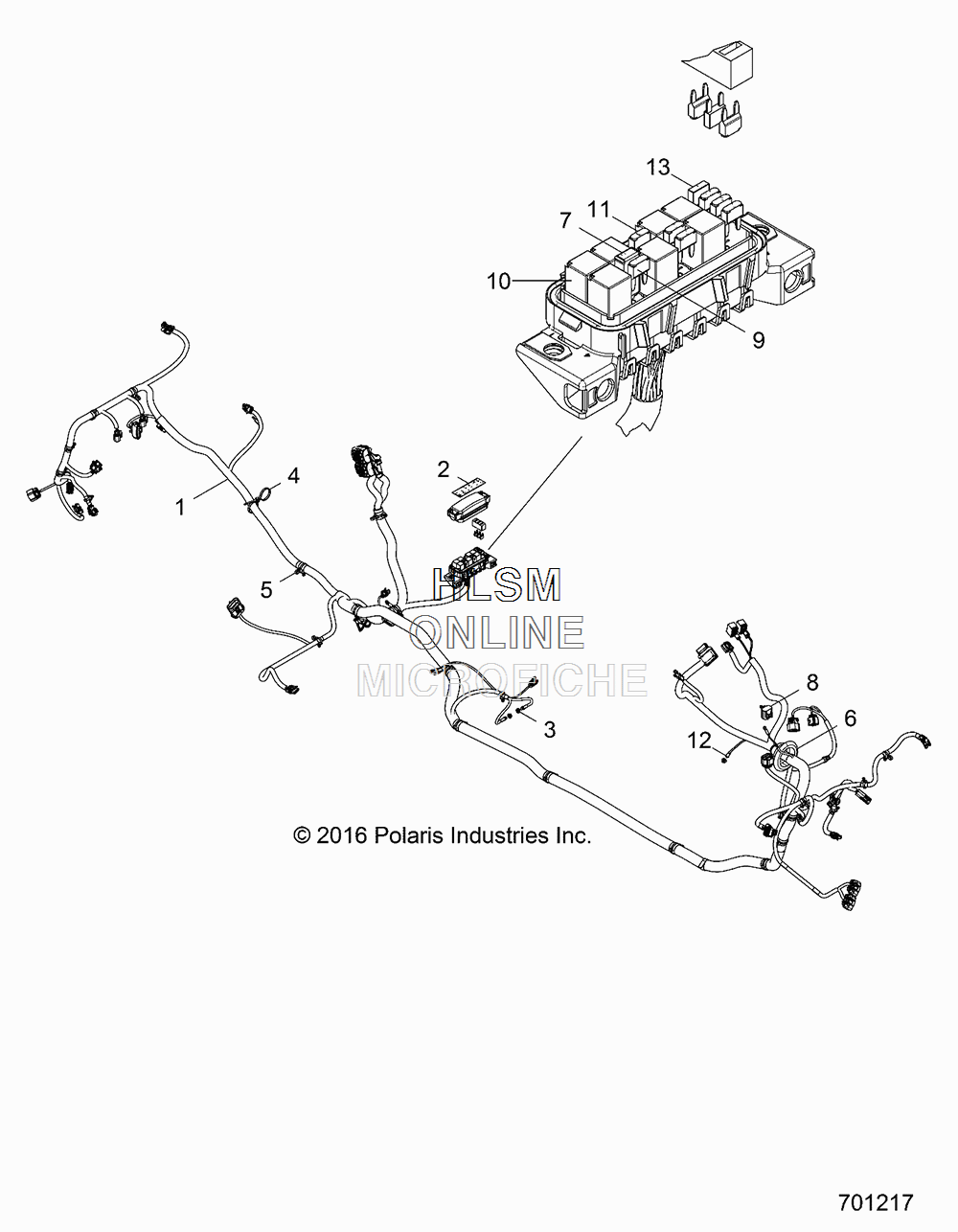

WIRE HARNESS W/ FUSE BOX для Polaris RZR XP 4 1000 MD (PEARL BLACK) [Z18VFE99NK] - 2018 года выпуска
-
№АртикулНазвание
-
12413982 HARNESS-CHASSIS, EPS, RZN 64, MP (INCL. ALL)HARNESS-CHASSIS, EPS, RZN 64, MP (INCL. ALL)
-
27184780 LABEL-FUSE BOX, RZNLABEL-FUSE BOX, RZN
-
37082020 CLIP-ROUTING, DIN BOXCLIP-ROUTING, DIN BOX
-
47081916 STRAP-PANDUIT, DOUBLE LOOP, 260 MMSTRAP-PANDUIT, DOUBLE LOOP, 260 MM
-
57081496 CLIP-ROUTINGCLIP-ROUTING
-
65813954 GROMMET-65MM, BLACKGROMMET-65MM, BLACK
-
74015771 BREAKER-CIRCUIT, 25 AMPBREAKER-CIRCUIT, 25 AMP
-
84012170 COVER-DIAGNOSTIC, W/CLIPCOVER-DIAGNOSTIC, W/CLIP
-
94011653 FUSE-25A, MINI BLADEFUSE-25A, MINI BLADE
-
104011283 RELAY-SPST, SERIES 303, SEALEDRELAY-SPST, SERIES 303, SEALED
-
112434016 FUSE-IGNITION, 10 AMPFUSE-IGNITION, 10 AMP
-
122413217 LED-PANEL MNT, 12V, BLUELED-PANEL MNT, 12V, BLUE
-
132410280 FUSE-MINI BLADE, 15 AMPFUSE-MINI BLADE, 15 AMP
Все узлы модели:
- AIR INTAKE SYSTEM
- BATTERY
- BRAKE - FRONT CALIPER
- BRAKE - PEDAL
- BRAKE - REAR CALIPER
- BRAKE LINES AND MASTER CYLINDER
- BUMPER - FRONT
- BUMPER - REAR
- CAM CHAIN AND TENSIONER
- CLUTCH
- CLUTCH - PRIMARY
- CLUTCH COVER W/ DUCTING
- COOLING SYSTEM
- CRANKCASE / CRANKSHAFT
- CYLINDER AND PISTON
- CYLINDER W/ VALVES
- DASH INSTRUMENTS W/ CONTROLS
- DASH W/ GLOVEBOX
- DECALS
- DIPSTICK AND OIL FILTER
- DOORS - FRONT
- DOORS - REAR
- DRIVE TRAIN - FRONT- HALF SHAFT
- DRIVE TRAIN - REAR- HALF SHAFT
- DRIVESHAFT - INTERMEDIATE
- ENGINE - MOUNTING
- EXHAUST SYSTEM
- FLOOR AND ROCKER PANELS
- FRAME CAB
- FUEL TANK
- GEAR SELECTOR
- GEARCASE - FRONT
- GEARCASE - FRONT - MOUNTING
- GEARCASE - MAIN - INTERNAL COMPONENTS
- GEARCASE - MAIN - MOUNTING
- GRAB BAR - PASSENGER
- HEADLIGHTS AND TAILLIGHTS
- HOOD AND FRONT BODY WORK
- MAGNETO
- MAIN FRAME AND SKID PLATE
- MANUAL - OWNERS W/ TOOLS
- OIL PUMP
- POWER STEERING ASSY.
- REAR CONTROL ARMS
- REAR RACK AND FENDERS
- SEAT ASSY. W/ SLIDER
- SEAT BELT ASSY.
- STABILIZER BAR- REAR
- STARTER - RECOIL
- SUSPENSION - FRONT CONTROL ARMS
- SUSPENSION - FRONT SHOCK W/ MOUNTING
- SUSPENSION - SWING ARM W/ SHOCK MOUNTING
- THROTTLE BODY W/ VALVE COVER
- THROTTLE PEDAL
- WATERPUMP AND BYPASS
- WHEEL - FRONT W/ HUB
- WHEEL - REAR W/ HUB
- WHEELS - FRONT
- WHEELS - REAR
- WIRE HARNESS
- • WIRE HARNESS W/ FUSE BOX
