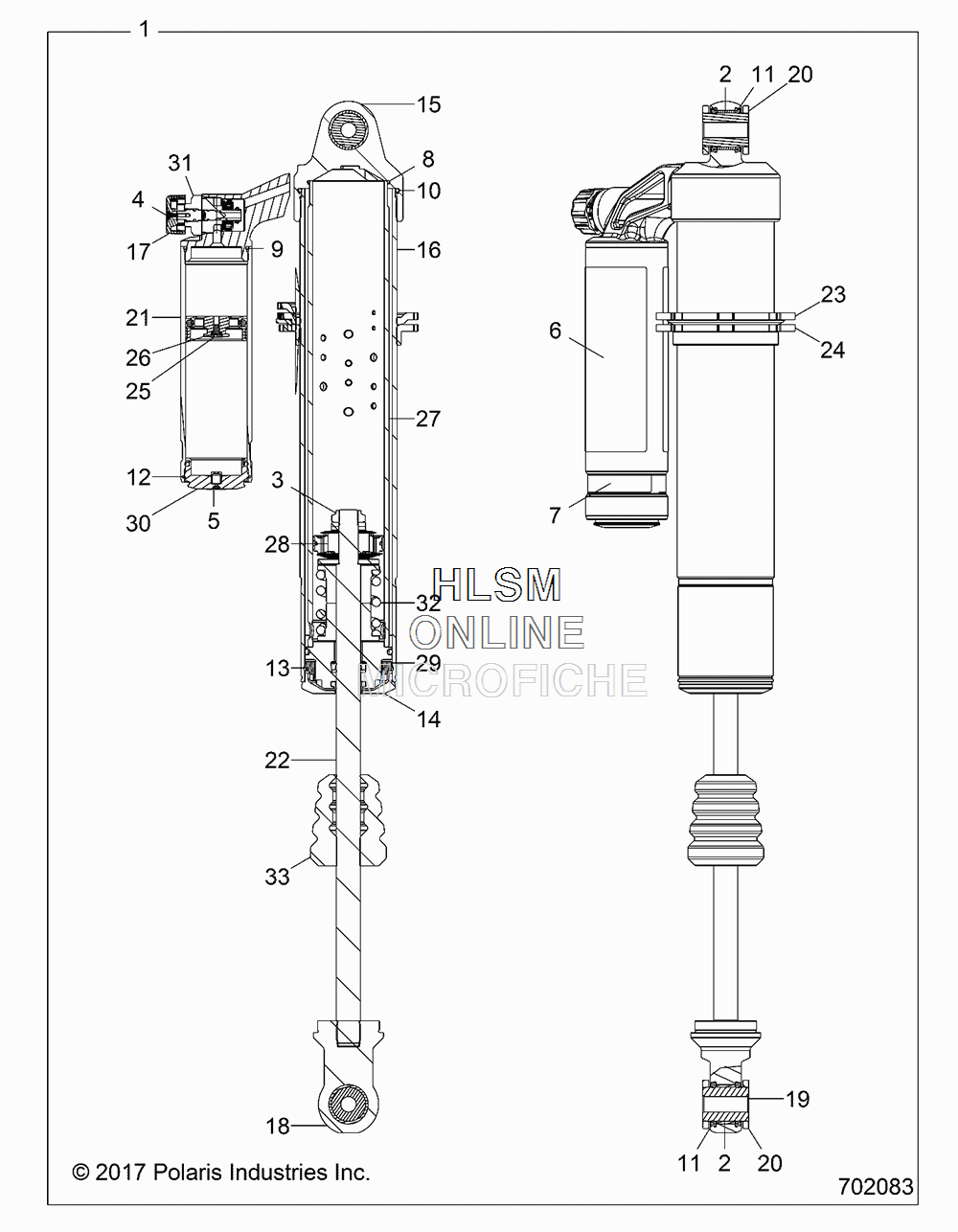

SUSPENSION - FRONT FOX SHOCK для Polaris RZR XP TURBO LATIN [Z18VDE92LS] - 2018 года выпуска
-
№АртикулНазвание
-
-7044656 SHOCK-FRONT LEFT HAND (INCL ALL)SHOCK-FRONT LEFT HAND (INCL ALL)
-
-7044657 SHOCK-FRONT RIGHT HAND (INCL ALL)SHOCK-FRONT RIGHT HAND (INCL ALL)
-
11500841 PLATE, BACK-UPPLATE, BACK-UP
-
11500470 PLATE, TOP-OUTPLATE, TOP-OUT
-
21501010 BUSHING, EYELETBUSHING, EYELET
-
31500842 NUT, LOCKNUT, LOCK
-
41501011 SCREW, #4, SS PANSCREW, #4, SS PAN
-
61501307 DECAL - RESERVOIRDECAL - RESERVOIR
-
81501047 O-RINGO-RING
-
91500623 O-RINGO-RING
-
101501049 O-RINGO-RING
-
111501274 SEAL - CANNED WEATHERSEAL - CANNED WEATHER
-
121501015 RING, RET. WIRERING, RET. WIRE
-
131500960 WIRE, RETAINING RINGWIRE, RETAINING RING
-
141501309 BEAROMG CAPBEAROMG CAP
-
151501310 BODY CAP - PB 135'BODY CAP - PB 135'
-
161501311 BODY - 12.70 TLGBODY - 12.70 TLG
-
171501057 KNOB, LOW SPEEDKNOB, LOW SPEED
-
181501162 EYELETEYELET
-
191501087 SLEEVESLEEVE
-
201501283 SPACER - NYLONSPACER - NYLON
-
211501312 RESERVOIR 7.0 TLGRESERVOIR 7.0 TLG
-
221501313 SHAFT .62 X 13.8 TLGSHAFT .62 X 13.8 TLG
-
231500955 RING, PRELOAD, BURING, PRELOAD, BU
-
241500956 RING, PRELOADRING, PRELOAD
-
251500161 SCREW W/ O-RING ASSYSCREW W/ O-RING ASSY
-
261501026 ASM., PISTON, FLOATASM., PISTON, FLOAT
-
271501314 INTERNAL BYPASSINTERNAL BYPASS
-
301501027 ASM., END CAP, RESERVOIRASM., END CAP, RESERVOIR
-
311501316 ADJUSTER - LCSADJUSTER - LCS
-
321501317 ASM - NEGATIVE SPRING GUIDEASM - NEGATIVE SPRING GUIDE
-
331500844 BUMPERBUMPER
