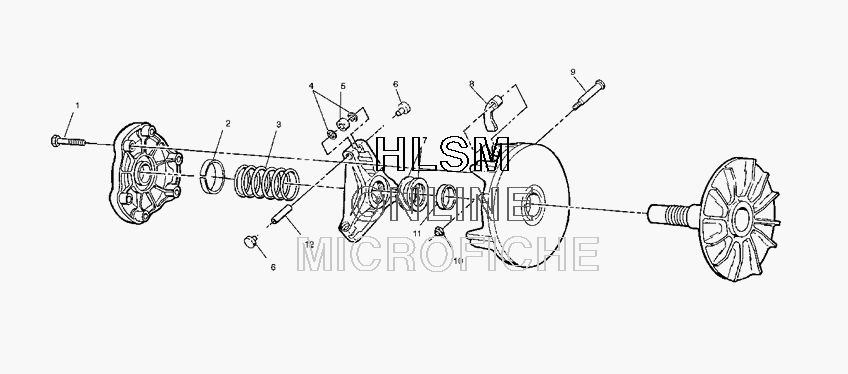

CLUTCH - DRIVE для Polaris RANGER 2X4 425 [R04RB42AA] - 2004 года выпуска
-
№АртикулНазвание
-
17518062 SCR-1/4-20X1.25 HX/FL GR5SCR-1/4-20X1.25 HX/FL GR5
-
23576510 BEARING, COVERBEARING, COVER
-
37041157 SPRING,CLUTCHSPRING,CLUTCH
-
45430945 WASHERWASHER
-
51321457 ROLLER/BUSHING ASM.ROLLER/BUSHING ASM.
-
65431936 BUTTON,CLUTCHBUTTON,CLUTCH
-
75210752 SPACER,.020SPACER,.020
-
75242981 SPACER,.025SPACER,.025
-
75210753 SPACER,.032SPACER,.032
-
75210754 SPACER,.050SPACER,.050
-
85630711 WT,SHIFT,10BHWT,SHIFT,10BH
-
97512266 BOLT,SHOULDERBOLT,SHOULDER
-
107541906 NUT FLEXLOCNUT FLEXLOC
-
113576504 BUSHING,MOVEABLE,1/2 INCHBUSHING,MOVEABLE,1/2 INCH
-
125020422 PIN-ROLLER,PIN-ROLLER,
-
-1321976 ASM-DRIVE CLUTCH,WIDE (INCLUDES ALL LESS 3,8)ASM-DRIVE CLUTCH,WIDE (INCLUDES ALL LESS 3,8)
Все узлы модели:
- AIR BOX ASSY.
- AIR INTAKE - ENGINE AND CLUTCH
- BED - REAR
- BRAKE - FRONT CALIPER
- BRAKE - MASTER CYLINDER W/ BRAKE LINE
- BRAKE - REAR CALIPER
- BRAKE - REAR W/ FOOT PEDAL
- CAB - FRAME
- CAMSHAFT W/ VALVE ASSY.
- CARBURETOR
- • CLUTCH - DRIVE
- CLUTCH - DRIVEN
- CLUTCH COVER
- COOLING SYSTEM
- CRANKCASE
- CRANKSHAFT W/ PISTON
- CYLINDER
- DASH INSTRUMENTS W/ CONTROLS
- DECALS
- DRIVESHAFT - REAR
- ELECTRICAL - BATTERY
- EXHAUST SYSTEM
- FLYWHEEL COVER
- FRAME W/ EXTENTIONS
- FUEL TANK
- GEAR SELECTOR W/ DIFFERENTIAL LOCK
- GEARCASE
- GEARCASE - REAR
- HOOD
- MAGNETO
- MOLDINGS
- MOUNTING - ENGINE
- MOUNTING - TRANSMISSION
- OIL FILTER
- OIL PUMP
- OIL TANK
- PARK BRAKE LOCK
- STARTING MOTOR
- STEERING POST
- SUSPENSION - FRONT A - ARM W/ TIE RODS
- SUSPENSION - FRONT STRUT
- SUSPENSION - REAR SHOCK
- SUSPENSION - SWING ARM W/ REAR SHOCK ASSY
- THROTTLE
- TOOL KIT
- WATER PUMP
- WHEEL - FRONT
- WHEEL - REAR
