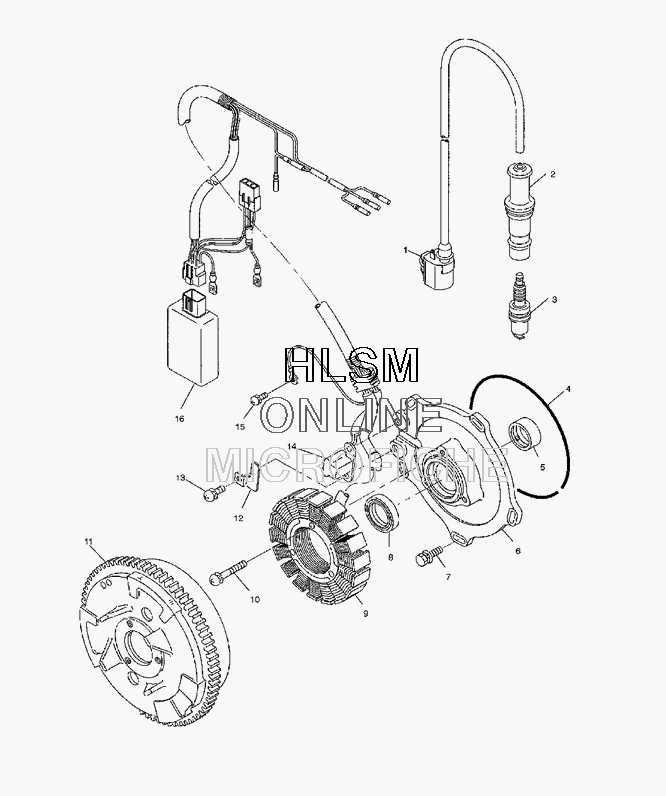

MAGNETO для Polaris RANGER 6X6 [R04RF50AA] - 2004 года выпуска
-
№АртикулНазвание
-
13089239 ASM.,IGNITION COILASM.,IGNITION COIL
-
23084980 SPARK PLUG CAPSPARK PLUG CAP
-
33070175 SPARKPLUG, BKR5E(4)SPARKPLUG, BKR5E(4)
-
43084978 O-RINGO-RING
-
53084972 BEARING, METALBEARING, METAL
-
63089402 ASM-PLATE (INCLUDES 5,6,8-13, 15)ASM-PLATE (INCLUDES 5,6,8-13, 15)
-
63089248 PLATEPLATE
-
73081657 BOLTANDWASHER ASM.BOLTANDWASHER ASM.
-
83084973 SEAL, OILSEAL, OIL
-
93089403 STATORSTATOR
-
103089251 ASM-SCREW AND WASHERASM-SCREW AND WASHER
-
113089247 FLYWHEEL-W/RING GEARFLYWHEEL-W/RING GEAR
-
123089250 BAND-PULSEBAND-PULSE
-
133084976 SCREWANDWASHER ASM.SCREWANDWASHER ASM.
-
143085360 COIL,PULSERCOIL,PULSER
-
153081256 SCREWANDWASHER ASMSCREWANDWASHER ASM
-
163089238 CDI SYSTEMCDI SYSTEM
Все узлы модели:
- AIR BOX ASSY.
- AIR INTAKE - ENGINE AND CLUTCH
- BED - REAR
- BRAKE - FRONT CALIPER
- BRAKE - MASTER CYLINDER W/ BRAKE LINE
- BRAKE - REAR CALIPER
- BRAKE - REAR W/ FOOT PEDAL
- CAB - FRAME
- CAMSHAFT W/ VALVE ASSY.
- CARBURETOR
- CLUTCH - DRIVE
- CLUTCH - DRIVEN
- CLUTCH COVER
- COOLING SYSTEM
- CRANKCASE
- CRANKSHAFT W/ PISTON
- CYLINDER
- DASH INSTRUMENTS W/ CONTROLS
- DECALS
- DIFFERENTIAL - FRONT
- DRIVESHAFT - FRONT
- DRIVESHAFT - FRONT INTERMEDIATE
- DRIVESHAFT - REAR
- ELECTRICAL - BATTERY
- EXHAUST SYSTEM
- FLYWHEEL COVER
- FRAME W/ EXTENTIONS
- FUEL TANK
- GEAR SELECTOR W/ DIFFERENTIAL LOCK
- GEARCASE
- GEARCASE - MID
- GEARCASE - MID HOUSING
- GEARCASE - REAR
- HOOD
- • MAGNETO
- MOLDINGS
- MOUNTING - ENGINE
- MOUNTING - TRANSMISSION
- OIL FILTER
- OIL PUMP
- OIL TANK
- PARK BRAKE LOCK
- STARTING MOTOR
- STEERING POST
- SUSPENSION - FRONT A - ARM W/ TIE RODS
- SUSPENSION - FRONT STRUT
- SUSPENSION - MID DRIVE A-ARMS
- SUSPENSION - MID DRIVESHAFT
- SUSPENSION - REAR SHOCK
- SUSPENSION - SWING ARM W/ REAR SHOCK ASSY
- THROTTLE
- TOOL KIT
- WATER PUMP
- WHEEL - FRONT
- WHEEL - REAR
