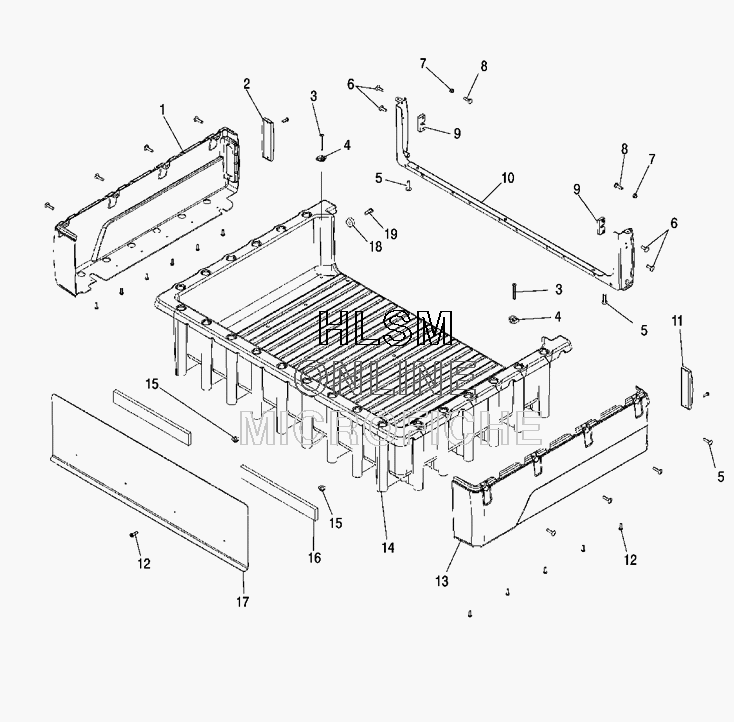

BOX ASSY. для Polaris RANGER 2X4 [R05RB50AA] - 2005 года выпуска
-
№АртикулНазвание
-
15435552-195 PANEL-BOX,SHORT, RIGHT HAND,GREENPANEL-BOX,SHORT, RIGHT HAND,GREEN
-
15435552-070 PANEL-BOX,SHORT, RIGHT HAND, BLACKPANEL-BOX,SHORT, RIGHT HAND, BLACK
-
15435552-515 PANEL-BOX,SHORT, RIGHT HAND, CRIMSON REDPANEL-BOX,SHORT, RIGHT HAND, CRIMSON RED
-
22410499 TAILLIGHT ASM, RIGHT HANDTAILLIGHT ASM, RIGHT HAND
-
24030040 BULB,TAILLIGHTBULB,TAILLIGHT
-
37517983 SCR-5/16-18X3.00 TR/TX-MSCR-5/16-18X3.00 TR/TX-M
-
47081195 RING-TIEDOWNRING-TIEDOWN
-
57518158 SCR-#14X1 HI/LO-PH-PN TRX-MSCR-#14X1 HI/LO-PH-PN TRX-M
-
67512297 SCREWSCREW
-
77542122 NUT-NYLOKNUT-NYLOK
-
87518376 BOLTBOLT
-
97081099 LATCH-SLAM,TAILGATELATCH-SLAM,TAILGATE
-
101014678-067 TAILGATE SUPPORT, BLACKTAILGATE SUPPORT, BLACK
-
112410484 TAILLIGHT ASM, LEFT HANDTAILLIGHT ASM, LEFT HAND
-
114030040 BULB,TAILLIGHTBULB,TAILLIGHT
-
127517790 SCR,#10X3/4 HI/LOSCR,#10X3/4 HI/LO
-
135435551-195 PANEL-BOX,SHORT, LEFT HAND,GREENPANEL-BOX,SHORT, LEFT HAND,GREEN
-
135435551-070 PANEL-BOX,SHORT, LEFT HAND, BLACKPANEL-BOX,SHORT, LEFT HAND, BLACK
-
135435551-515 PANEL, BOX, SHORT, CRIMSON RED, LEFT HANDPANEL, BOX, SHORT, CRIMSON RED, LEFT HAND
-
135435551-342 PANEL-BOX,SHORT, LEFT HAND, SOLAR REDPANEL-BOX,SHORT, LEFT HAND, SOLAR RED
-
145435553-070 BOX-SHORT, BLACKBOX-SHORT, BLACK
-
145435690-070 BOX-LONG, BLACKBOX-LONG, BLACK
-
157542321 NUT,FLANGENUT,FLANGE
-
165811310 SEAL-FOAM,21 INSEAL-FOAM,21 IN
-
175435996 PANEL-BOX,FRONTPANEL-BOX,FRONT
-
185412919 BUMPER-RECESS,1/4''BUMPER-RECESS,1/4''
-
197511858 SCREWSCREW
-
-1202819-195 AIR BOX GREEN (INCLUDES ALL)AIR BOX GREEN (INCLUDES ALL)
-
-1202819-070 AIR BOX BLACK (INCLUDES ALL)AIR BOX BLACK (INCLUDES ALL)
-
-1202819-515 AIR BOX CRIMSON RED (INCLUDES ALL)AIR BOX CRIMSON RED (INCLUDES ALL)
-
-1202819-342 AIR BOX SOLAR RED (INCLUDES ALL)AIR BOX SOLAR RED (INCLUDES ALL)
