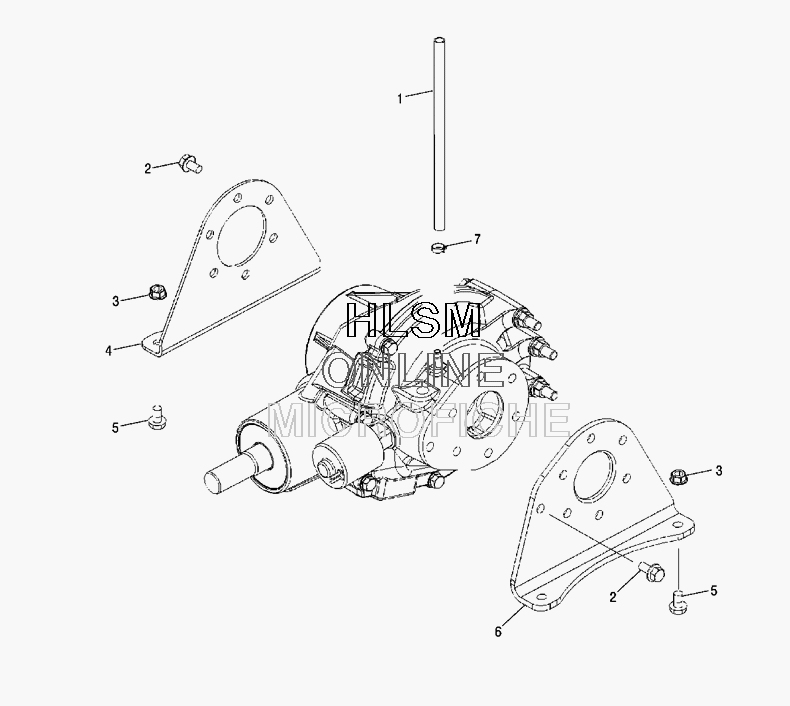

MOUNTING - REAR GEARCASE для Polaris RANGER 4X4 [R05RD50AD] - 2005 года выпуска
-
№АртикулНазвание
-
18450003-1525 LINE,FUEL,1/4 ID(1525 CM.)LINE,FUEL,1/4 ID(1525 CM.)
-
27518442 BOLT-HEX,TUBES,026HM107BOLT-HEX,TUBES,026HM107
-
37547108 NUTNUT
-
45247987 BRKT-DIFF MNT,SIDE, RIGHT HANDBRKT-DIFF MNT,SIDE, RIGHT HAND
-
57517289 SCREWSCREW
-
65247821 BRKT-DIFF MNT,SIDE, LEFT HANDBRKT-DIFF MNT,SIDE, LEFT HAND
-
77080307 CLAMP,HOSECLAMP,HOSE
