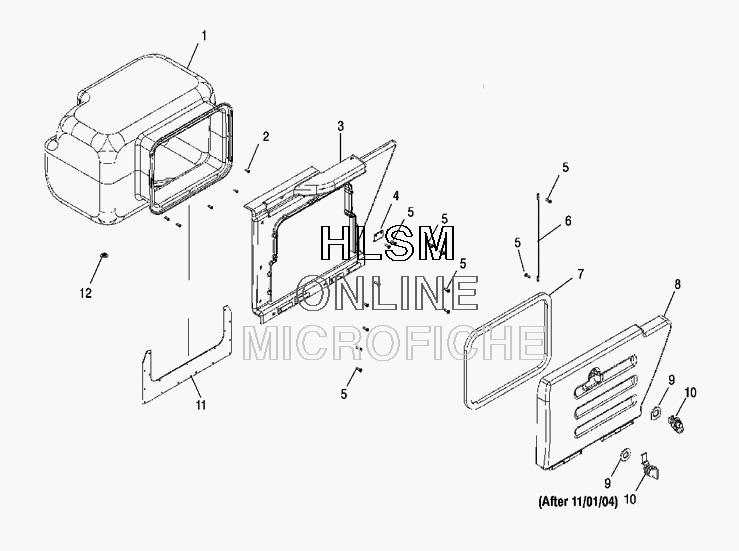

STORAGE BOX для Polaris RANGER XP GREEN [R05RD68AA] - 2005 года выпуска
-
№АртикулНазвание
-
15435651-070 BOX-STORAGE,SIDE, BLACKBOX-STORAGE,SIDE, BLACK
-
27517396 SCREWSCREW
-
35435843-070 FENDER-STORAGE BOX, BLACKFENDER-STORAGE BOX, BLACK
-
45248581 BRKT-LATCH,STORAGE BOXBRKT-LATCH,STORAGE BOX
-
57517790 SCR,#10X3/4 HI/LOSCR,#10X3/4 HI/LO
-
67081124 CABLE-LID,FRONTCABLE-LID,FRONT
-
75521701 SEAL-STORAGE BOXSEAL-STORAGE BOX
-
85435650-070 COVER-STORAGE BOX, BLACKCOVER-STORAGE BOX, BLACK
-
970812251 LATCH-1/4 TURNLATCH-1/4 TURN
-
105249363-067 BRKT-SPACER,LATCH, BLACKBRKT-SPACER,LATCH, BLACK
-
107556120 BUSHING-7/8 X 3/8 X 16 GA-YBUSHING-7/8 X 3/8 X 16 GA-Y
-
115248236-067 PLATE-SUPPORT,STORAGE BOX, BLACKPLATE-SUPPORT,STORAGE BOX, BLACK
-
125412352 PLUG-COMPARTMENTPLUG-COMPARTMENT
