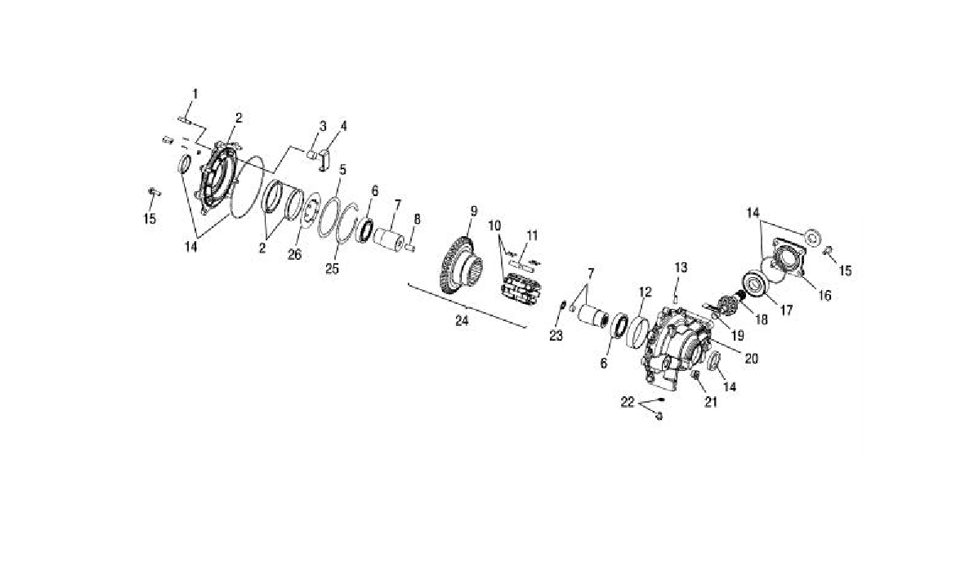

HOUSING - FRONT для Polaris RANGER 500 4X4 [R06RB50AA] - 2006 года выпуска

№

Артикул

Название
-

1332428 ASM-GEARCASE, FRONT,BEARINGLESS

ASM-GEARCASE, FRONT,BEARINGLESS

260 ₽
-

3233955 KIT-BOLT

KIT-BOLT

4 990 ₽
1

3234163 SCREW-SET

SCREW-SET

3 950 ₽
2

3234159 ASM-COVER PLATE (INCL. OUTPUT COVER, INSERT AND COIL)

ASM-COVER PLATE (INCL. OUTPUT COVER, INSERT AND COIL)

93 600 ₽
3

3234375 BUTTON-THRUST

BUTTON-THRUST

1 460 ₽
4

3234165 PLATE-THRUST

PLATE-THRUST

3 120 ₽
5

3234161 PLATE-ARMATURE, SHIM

PLATE-ARMATURE, SHIM

4 580 ₽
6

3233926 BEARING-ROLLER BALL

BEARING-ROLLER BALL

13 520 ₽
7

3233953 ASM-RACE/OUTPUT HUB (INCL. 23)

ASM-RACE/OUTPUT HUB (INCL. 23)

81 120 ₽
8

3233928 PIN-DOWEL, 1/2''DIA X 1''

PIN-DOWEL, 1/2''DIA X 1''

3 120 ₽
9

3234376 CLUTCH-HOUSING/RING GEAR

CLUTCH-HOUSING/RING GEAR

130 ₽
10

3234377 ASM-ROLL CAGE AND ARM PLATE (INCL. 26, SPRING AND ROLL CAGE)

ASM-ROLL CAGE AND ARM PLATE (INCL. 26, SPRING AND ROLL CAGE)

66 560 ₽
11

3233957 KIT-ROLLER

KIT-ROLLER

26 000 ₽
12

3234378 COULD NOT FIND

COULD NOT FIND

0 ₽
13

3234379 FITTING-VENT

FITTING-VENT

1 460 ₽
14

3233956 KIT-SEAL, GEARCASE-FRONT (INCL. O-RINGS AND SEALS)

KIT-SEAL, GEARCASE-FRONT (INCL. O-RINGS AND SEALS)

13 520 ₽
15

3233918 COULD NOT FIND

COULD NOT FIND

0 ₽
16

3233947 COVER-INPUT, MACH

COVER-INPUT, MACH

12 480 ₽
17

3234112 BEARING-DEEP GROVE ROLLER BALL

BEARING-DEEP GROVE ROLLER BALL

13 520 ₽
18

3233944 SHAFT-PINION, 11T,6.75DP,MACH

SHAFT-PINION, 11T,6.75DP,MACH

130 ₽
21

3233942 PLUG-OIL FILL 3/4-16 HOLLOW

PLUG-OIL FILL 3/4-16 HOLLOW

4 990 ₽
22

3233951 ASM-DRAIN PLUG (INCL. PLUG AND WASHER)

ASM-DRAIN PLUG (INCL. PLUG AND WASHER)

6 450 ₽
23

3233929 BEARING-NEEDLE ROLLER THRUST

BEARING-NEEDLE ROLLER THRUST

3 540 ₽
24

3234380 ASM-CLUTCH (INCL. 9-11)

ASM-CLUTCH (INCL. 9-11)

130 ₽
25

3234162 RING-RETAINING, INTERNAL

RING-RETAINING, INTERNAL

3 950 ₽
26

3234160 ARMATURE PLATE

ARMATURE PLATE

19 760 ₽
