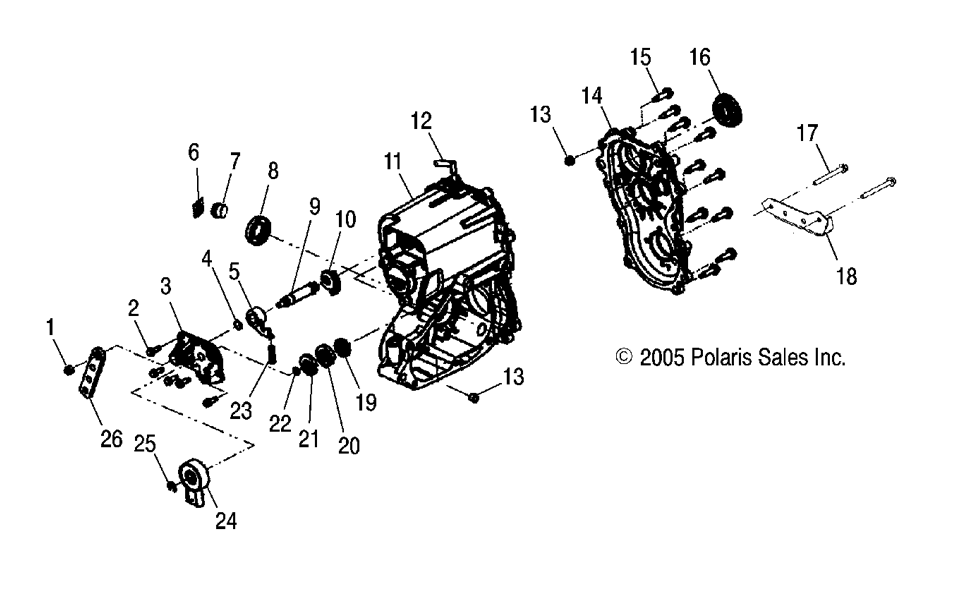

GEARCASE для Polaris RANGER 6X6 EFI 700 [R06RF68AA] - 2006 года выпуска
-
№АртикулНазвание
-
-1332307 ASM-GEARCASE,MAINASM-GEARCASE,MAIN
-
13233961 NUT-LOCK HEX FLANGE NYLON 5/16NUT-LOCK HEX FLANGE NYLON 5/16
-
23233826 SCREWSCREW
-
33234188 COVER,GEARCASECOVER,GEARCASE
-
43233828 O-RINGO-RING
-
53233829 PAWL-DETENTPAWL-DETENT
-
63234143 LABEL-OIL FILL/LEVEL CHECKLABEL-OIL FILL/LEVEL CHECK
-
73233794 PLUG-HEX,HOLLOW, WITH O-RINGPLUG-HEX,HOLLOW, WITH O-RING
-
83233842 SEAL-VITON,TRIPLE LIPSEAL-VITON,TRIPLE LIP
-
93233831 SHAFT-SHIFTSHAFT-SHIFT
-
103233832 GEAR-SECTOR,31T-CUT TO 11TGEAR-SECTOR,31T-CUT TO 11T
-
113234129 GEARCASE-MAIN,MACHGEARCASE-MAIN,MACH
-
123234230 TUBE-VENT,90-1/4'' HOSETUBE-VENT,90-1/4'' HOSE
-
133233247 PIN, DOWELPIN, DOWEL
-
143234221 GEARCASE-LEFT HAND,MACHGEARCASE-LEFT HAND,MACH
-
153234114 SCR-TAPPING HEX WASHER HD 5/16SCR-TAPPING HEX WASHER HD 5/16
-
163233866 SEAL-VITON,DUAL LIPSEAL-VITON,DUAL LIP
-
173234042 SCREWSCREW
-
183234044 BRACKETBRACKET
-
193233839 GEAR-SECTOR,16TGEAR-SECTOR,16T
-
203233838 DISC-LOCKOUTDISC-LOCKOUT
-
213233837 DETENT-STARDETENT-STAR
-
223233836 O-RINGO-RING
-
233233830 SPRING-COMPRESSIONSPRING-COMPRESSION
-
243233835 SWITCH-ROTARY,6 PINSWITCH-ROTARY,6 PIN
-
253233834 RING-RETAININGRING-RETAINING
-
263234232 BELLCRANK,510BELLCRANK,510
