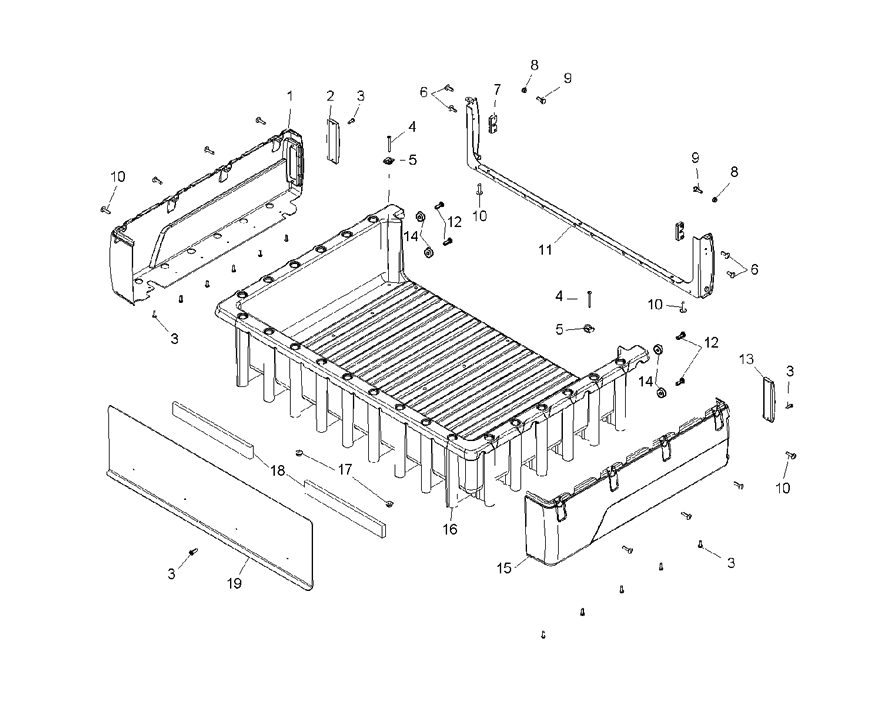

BOX ASSY. для Polaris RANGER XP 4X4 700 EFI XP GRAPHITE WHITE [R06RD68AE] - 2006 года выпуска
-
№АртикулНазвание
-
-1203149-070 BOX ASSY. (INCLUDES ALL)BOX ASSY. (INCLUDES ALL)
-
15435552-070 PANEL-BOX, SHORT, RIGHT HAND, BLACKPANEL-BOX, SHORT, RIGHT HAND, BLACK
-
22410667 ASM-TAILLIGHT, RIGHTASM-TAILLIGHT, RIGHT
-
24030040 BULB, TAILLIGHTBULB, TAILLIGHT
-
37517790 SCR, #10X3/4 HI/LOSCR, #10X3/4 HI/LO
-
47517983 SCR-5/16-18X3.00 TR/TX-MSCR-5/16-18X3.00 TR/TX-M
-
57081195 RING-TIEDOWNRING-TIEDOWN
-
67512276 BOLTBOLT
-
77081099 LATCH-SLAM, TAILGATELATCH-SLAM, TAILGATE
-
87542122 NUT-NYLOKNUT-NYLOK
-
97518376 BOLTBOLT
-
107518158 SCR-#14X1 HI/LO-PH-PN TRX-MSCR-#14X1 HI/LO-PH-PN TRX-M
-
111014678-067 TAILGATE SUPPORT, BLACKTAILGATE SUPPORT, BLACK
-
127511858 SCREWSCREW
-
132410668 ASM-TAILLIGHT, LEFTASM-TAILLIGHT, LEFT
-
134030040 BULB, TAILLIGHTBULB, TAILLIGHT
-
145412919 BUMPER-RECESS, 1/4''BUMPER-RECESS, 1/4''
-
155435551-070 PANEL-BOX, SHORT, LEFT HAND, BLACKPANEL-BOX, SHORT, LEFT HAND, BLACK
-
165435553-070 BOX-SHORT, BLACKBOX-SHORT, BLACK
-
177542321 NUT, FLANGENUT, FLANGE
-
185811310 SEAL-FOAM, 21 INSEAL-FOAM, 21 IN
-
195435996 PANEL-BOX, FRONTPANEL-BOX, FRONT
