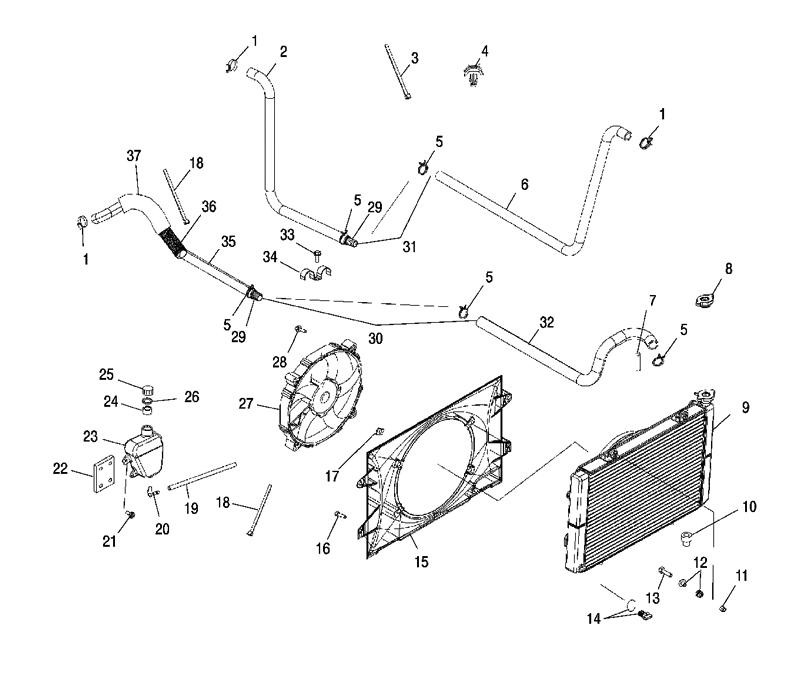

COOLING SYSTEM для Polaris RANGER XP 4X4 700 EFI XP LE [PAINTED] [R06RD68AD] - 2006 года выпуска
-
№АртикулНазвание
-
17081174 CLAMP-HOSE, 13/16''-1 1/2''CLAMP-HOSE, 13/16''-1 1/2''
-
25412809 HOSE-1'' ID RAD INLETHOSE-1'' ID RAD INLET
-
37080138 CABLE TIECABLE TIE
-
47080965 MOUNT-CABLE TIE, .25MOUNT-CABLE TIE, .25
-
57080843 CLAMP, SPRINGBAND 32/12CLAMP, SPRINGBAND 32/12
-
65412800 HOSE-1'' ID ENGINE OUTLETHOSE-1'' ID ENGINE OUTLET
-
78360012-06 CLIPCLIP
-
81240093 CAP-PRESSURE, 13 LBS.CAP-PRESSURE, 13 LBS.
-
91240211 RADIATOR-FLATRADIATOR-FLAT
-
105410584 BUSHING-MOUNT, LOWER RADIATORBUSHING-MOUNT, LOWER RADIATOR
-
117542153 NUT, NYLOK,FLANGEDNUT, NYLOK,FLANGED
-
125411975 GROMMET/INSERT-ASMGROMMET/INSERT-ASM
-
137512163 BOLTBOLT
-
147052296 VALVE-PLASTIC DRAINVALVE-PLASTIC DRAIN
-
155436015 SHROUD-FANSHROUD-FAN
-
167518067 SCREWSCREW
-
177547197 CLIP-''U'', M6.0X1.0CLIP-''U'', M6.0X1.0
-
187080761 CABLE TIE, 14''CABLE TIE, 14''
-
198450003-1525 LINE, FUEL,1/4 ID(1525 CM.)LINE, FUEL,1/4 ID(1525 CM.)
-
207052065 FITTING, 90 DEGREEFITTING, 90 DEGREE
-
217512084 SCREWSCREW
-
225246873 BRKT-SURGE TANKBRKT-SURGE TANK
-
235431673 TANK-SURGETANK-SURGE
-
245433774 CAP, PLUG9X(GRN),FLEX TEMPCAP, PLUG9X(GRN),FLEX TEMP
-
255430743 CAP, OVERFLOWCAP, OVERFLOW
-
265810279 GASKETGASKET
-
272410366 FAN-11'' ASSEMBLYFAN-11'' ASSEMBLY
-
287547220 SCR-M6-1.00X20, W/WASHERSCR-M6-1.00X20, W/WASHER
-
297052381 CONNECTOR-1'' SPLICE, BARBEDCONNECTOR-1'' SPLICE, BARBED
-
301240246 HOSEHOSE
-
311240247 HOSEHOSE
-
325412801 HOSE-1'' ID ENGINE INLETHOSE-1'' ID ENGINE INLET
-
337517386 SCREWSCREW
-
347081250 CLAMP-DOUBLE HOSE, 1-3/8''CLAMP-DOUBLE HOSE, 1-3/8''
-
355412808 HOSE-1'' ID RAD OUTLETHOSE-1'' ID RAD OUTLET
-
365521324 TUBING, CONVOLUTED(1''X6'')TUBING, CONVOLUTED(1''X6'')
-
378450111-25 SHEATH-REFLECT SLV, 45MMX25CMSHEATH-REFLECT SLV, 45MMX25CM
