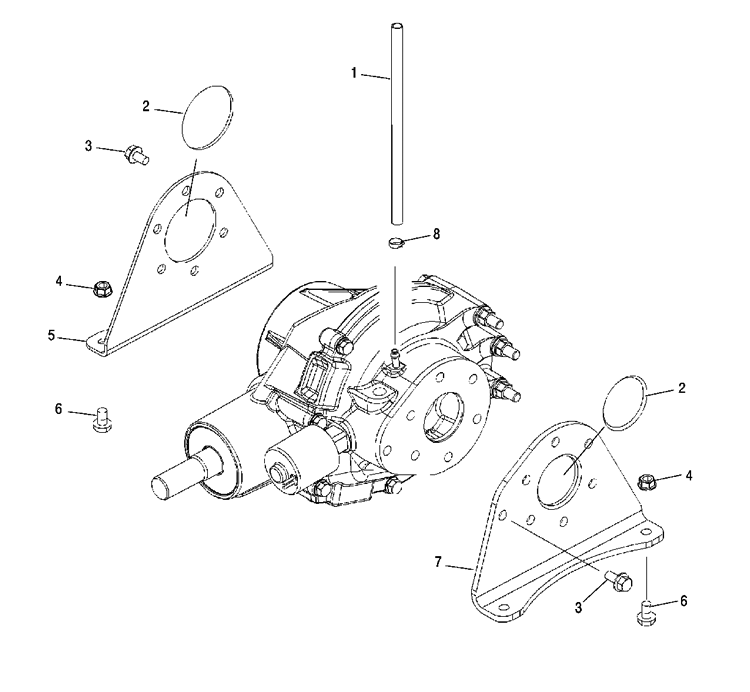

MOUNTING - REAR GEARCASE для Polaris RANGER XP 4X4 700 [R06RD68AA] - 2006 года выпуска
-
№АртикулНазвание
-
18450003-1525 LINE, FUEL,1/4 ID(1525 CM.)LINE, FUEL,1/4 ID(1525 CM.)
-
23610117 SEAL-OIL, SHAFT,026HH105SEAL-OIL, SHAFT,026HH105
-
37518442 BOLT-HEX, TUBES,026HM107BOLT-HEX, TUBES,026HM107
-
47547263 NUT-3/8-24 NYLOKNUT-3/8-24 NYLOK
-
55247987 BRKT-DIFF MNT, SIDE, RIGHT HANDBRKT-DIFF MNT, SIDE, RIGHT HAND
-
67517289 SCREWSCREW
-
75247821 BRKT-DIFF MNT, SIDE, LEFT HANDBRKT-DIFF MNT, SIDE, LEFT HAND
-
87080307 CLAMP, HOSECLAMP, HOSE
Все узлы модели:
- AIR BOX ASSY.
- BOX ASSY.
- BOX MOUNTING
- BRAKE - FOOT
- BRAKE - PARK
- BRAKE CALIPER - FRONT
- BRAKE CALIPER - REAR
- BRAKE LINES/MASTER CYLINDER
- BUMPER AND NERF BAR KITS
- CHASSIS AND BODY
- CLUTCH - DRIVE
- CLUTCH - DRIVEN
- CLUTCH COVER
- COOLING SYSTEM
- CRANKCASE / CRANKSHAFT
- CYLINDER HEAD
- DASH INSTRUMENTS AND CONTROLS
- DECALS
- DIFFERENTIAL - FRONT
- DIPSTICK AND OIL FILTER
- DRIVE SHAFT - REAR (LEFT/RIGHT)
- DRIVESHAFT - FRONT
- ELECTRICAL/BATTERY
- ENGINE AND CLUTCH AIR INTAKE
- EXHAUST SYSTEM
- FRAME W/ CAB
- FUEL INJECTOR
- FUEL TANK
- GEAR SELECTOR
- GEARCASE
- GEARCASE - INTERNAL COMPONENTS
- GEARCASE - OUTPUT SHAFT
- GEARCASE - REAR
- GUN BOOT
- HOOD
- MAGNETO
- MANIFOLD AND THERMOSTAT
- MOLDINGS
- MOUNTING - ENGINE
- • MOUNTING - REAR GEARCASE
- MOUNTING - TRANSMISSION
- OIL PUMP AND WATER PUMP
- PARK BRAKE PEDAL
- PISTON AND CYLINDER
- PROP SHAFT - FRONT
- PROP SHAFT - REAR
- SEAT W/ BASE
- STABILIZER BAR - REAR
- STARTING MOTOR
- STEERING POST
- STORAGE BOX
- SUSPENSION - FRONT A - ARM W/ TIE RODS
- SUSPENSION - FRONT STRUT
- SUSPENSION - REAR
- TAILGATE
- THROTTLE
- THROTTLE BODY
- TOOL KIT
- WHEEL - FRONT
- WHEEL - REAR
