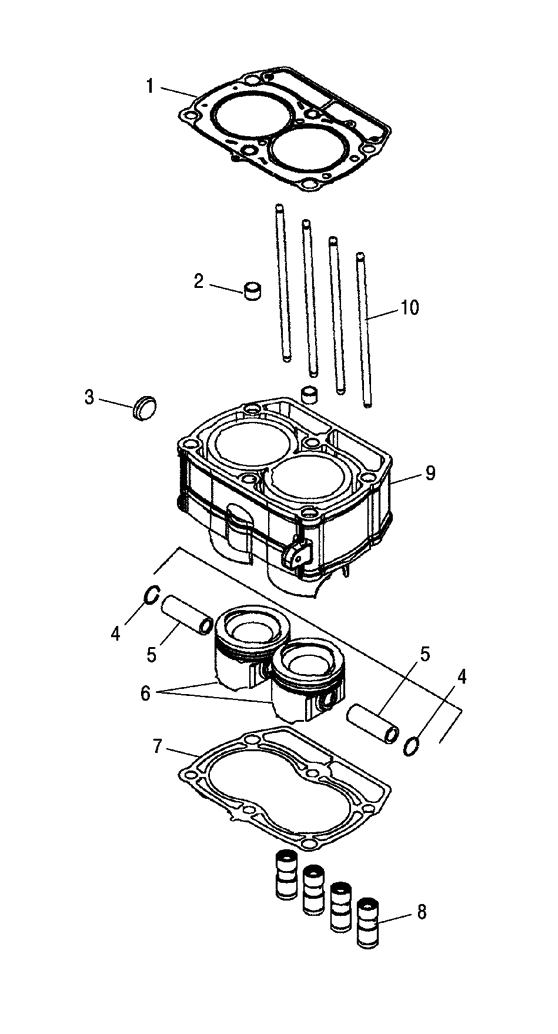

PISTON AND CYLINDER для Polaris RANGER XP 4X4 700 XP BROWNING [R06RD68AF] - 2006 года выпуска
-
№АртикулНазвание
-
-2202107 KIT-PISTON (INCLUDES 4-6)KIT-PISTON (INCLUDES 4-6)
-
15247359 GASKET-HEADGASKET-HEAD
-
27661175 DOWEL-HOL, M16X12,0600089DOWEL-HOL, M16X12,0600089
-
37051534 PLUG-EXPANSION 1 1/8''PLUG-EXPANSION 1 1/8''
-
43022996 CIRCLIP, PISTONCIRCLIP, PISTON
-
62202127 KIT-PISTON RINGS 80MMKIT-PISTON RINGS 80MM
-
75247360 GASKET-BASEGASKET-BASE
-
85134152 LIFTER-VALVE, HYDRAULICLIFTER-VALVE, HYDRAULIC
-
92202696 KIT-CYLINDER, 80 MM (INCLUDES 3)KIT-CYLINDER, 80 MM (INCLUDES 3)
-
105132402 PUSHRODPUSHROD
