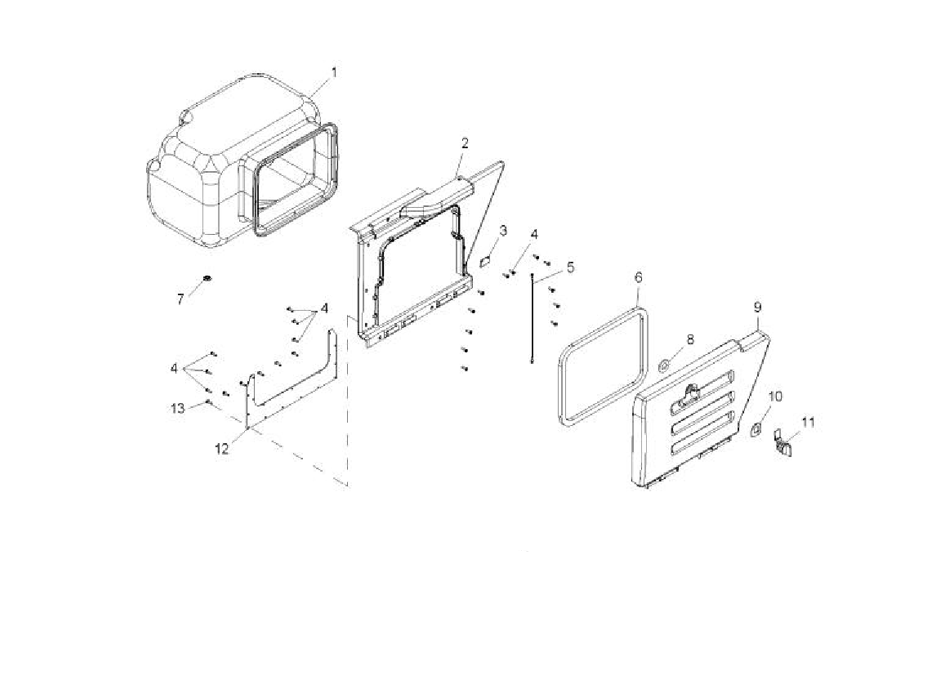

STORAGE BOX для Polaris RANGER 700 EFI 4X4 FLAMES [R07RH68AW] - 2007 года выпуска
-
№АртикулНазвание
-
-1202893-070 BOX ASSYBOX ASSY
-
15435651-070 BOX-STORAGE,SIDE, BLACKBOX-STORAGE,SIDE, BLACK
-
25435843-070 FENDER-STORAGE BOX, BLACKFENDER-STORAGE BOX, BLACK
-
35248581 BRKT-LATCH,STORAGE BOXBRKT-LATCH,STORAGE BOX
-
47512026 SCREWSCREW
-
57081124 CABLE-LID,FRONTCABLE-LID,FRONT
-
65521701 SEAL-STORAGE BOXSEAL-STORAGE BOX
-
75412981 PLUG-COMPARTMENTPLUG-COMPARTMENT
-
87556120 BUSHING-7/8 X 3/8 X 16 GA-YBUSHING-7/8 X 3/8 X 16 GA-Y
-
95435650-070 COVER-STORAGE BOX, BLACKCOVER-STORAGE BOX, BLACK
-
105249363-067 BRKT-SPACER,LATCH, BLACKBRKT-SPACER,LATCH, BLACK
-
117081317 LATCH-1/4 TURNLATCH-1/4 TURN
-
125248236-067 PLATE-SUPPORT,STORAGE BOX, BLACKPLATE-SUPPORT,STORAGE BOX, BLACK
-
137518238 SCR-10X5/8-HI/LO,PN-T25,TRX-MSCR-10X5/8-HI/LO,PN-T25,TRX-M
