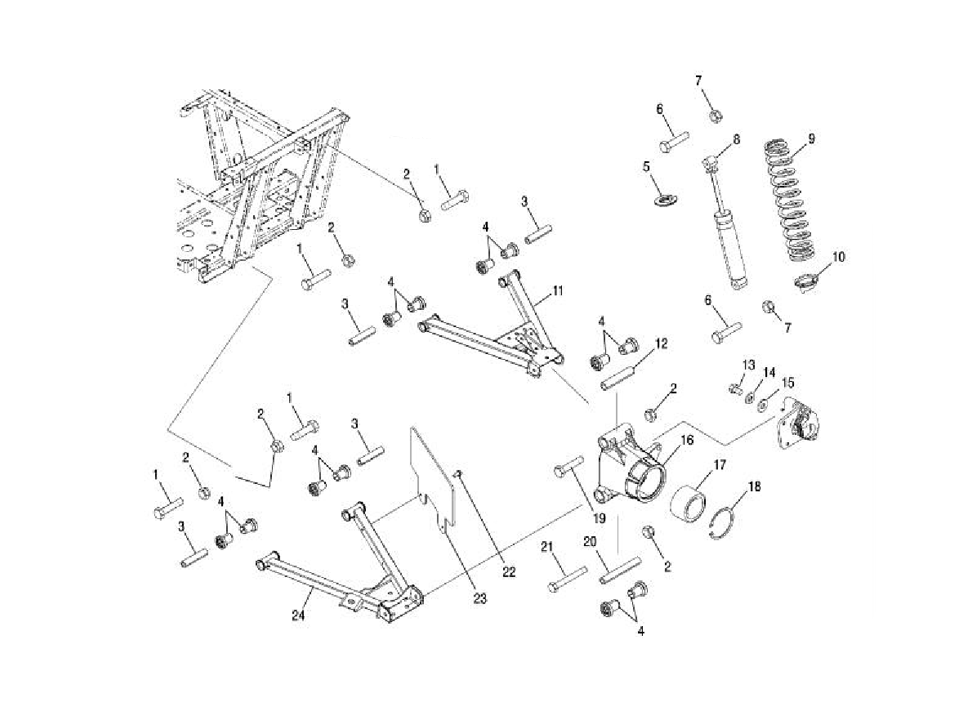

SUSPENSION - REAR для Polaris RANGER 700 EFI 4X4 LE SILVER [R07RH68AK] - 2007 года выпуска
-
№АртикулНазвание
-
17515472 BOLTBOLT
-
27542439 NUT,NYLOKNUT,NYLOK
-
35020826 SHAFT,A-ARM,SHORTSHAFT,A-ARM,SHORT
-
45434548 BUSHING-A-ARM-SHORT, BLACKBUSHING-A-ARM-SHORT, BLACK
-
55631887 RETAINER-SPRINGRETAINER-SPRING
-
67515415 SCREWSCREW
-
77542439 NUT,NYLOKNUT,NYLOK
-
87042333 SHOCK-REARSHOCK-REAR
-
97042334-385 SPRING-240#/IN,12.75,CLD SLVRSPRING-240#/IN,12.75,CLD SLVR
-
105630551 CAM,ADJUST,SPRINGCAM,ADJUST,SPRING
-
111014948-385 CONTROL ARM,UPPR,CLD SLVR (AD)(AK)(AW)(AP)CONTROL ARM,UPPR,CLD SLVR (AD)(AK)(AW)(AP)
-
125134549 SHAFT-A-ARM,UPPERSHAFT-A-ARM,UPPER
-
137512365 SCREW, CAP (REAR CALIPER ATTACH)SCREW, CAP (REAR CALIPER ATTACH)
-
147552901 WASHER,SPRING LOCK (REAR CALIPER ATTACH)WASHER,SPRING LOCK (REAR CALIPER ATTACH)
-
157558402 WASHER,FLAT (REAR CALIPER ATTACH)WASHER,FLAT (REAR CALIPER ATTACH)
-
165134741 CARRIER-BEARING,WHEEL, LEFT HANDCARRIER-BEARING,WHEEL, LEFT HAND
-
165134531 CARRIER-BEARING,WHEELCARRIER-BEARING,WHEEL
-
173585502 BEARINGBEARING
-
187710440 RING,RETAININGRING,RETAINING
-
197515514 BOLTBOLT
-
205134616 SHAFT-A-ARM,LOWERSHAFT-A-ARM,LOWER
-
217518634 SCR-3/8-24X5.50 HXCS GR5-ZYSCR-3/8-24X5.50 HXCS GR5-ZY
-
227512084 SCREWSCREW
-
235436014-070 SHIELD-CV,REAR, BLACKSHIELD-CV,REAR, BLACK
-
241014674-385 CONTROL ARM,LWR, LEFT HAND,CLD SLVRCONTROL ARM,LWR, LEFT HAND,CLD SLVR
-
241014675-385 WELD-CNTRL ARM,LWR, RIGHT HAND,CLD SLVRWELD-CNTRL ARM,LWR, RIGHT HAND,CLD SLVR
