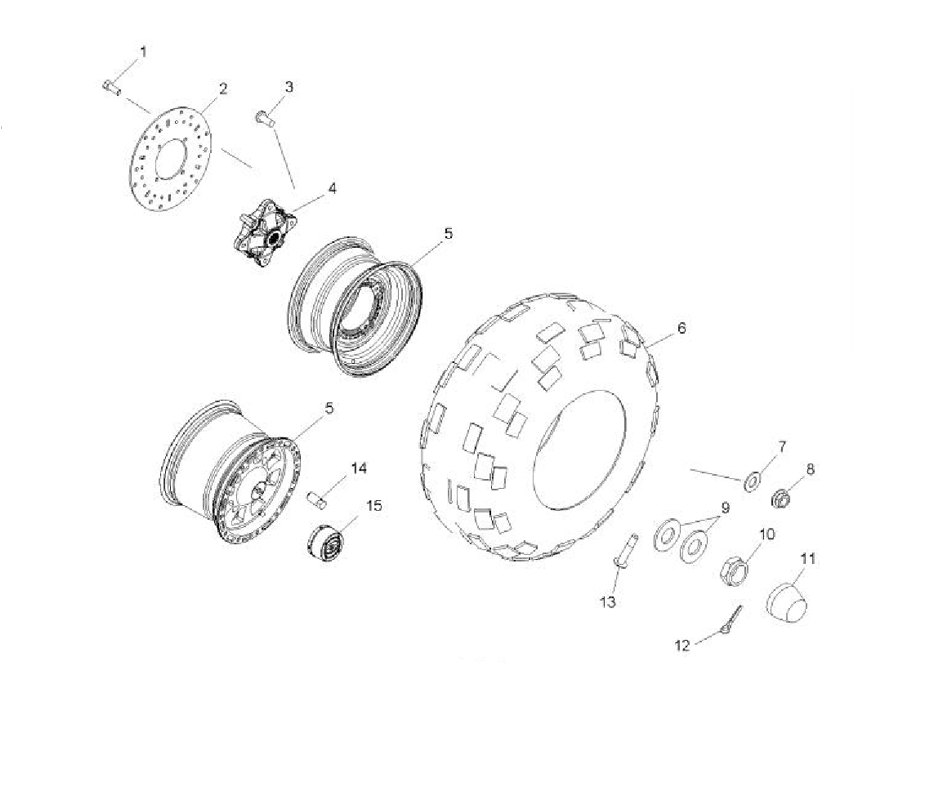

WHEEL - REAR для Polaris RANGER 700 EFI 4X4 PEARL WHITE [R07RH68AP] - 2007 года выпуска
-
№АртикулНазвание
-
17515522 BOLTBOLT
-
25248250 DISC-BRAKE,REAR,8.625X.188DISC-BRAKE,REAR,8.625X.188
-
37518378 STUD-3/8-24X1.38,PRESS FIT-ZSTUD-3/8-24X1.38,PRESS FIT-Z
-
45135113 HUB-WHEEL,REAR,MACHHUB-WHEEL,REAR,MACH
-
51520899 RIM-REAR,12X8,CAST ALUMRIM-REAR,12X8,CAST ALUM
-
65412687 TIRE-RR,26X11R12,PXTTIRE-RR,26X11R12,PXT
-
77556242 WASHER-.385X.88X.075,FL-Y THRWASHER-.385X.88X.075,FL-Y THR
-
87542459 NUT, FLANGEDNUT, FLANGED
-
97555796 WASHER, CONEWASHER, CONE
-
107543005 NUT, CASTLENUT, CASTLE
-
115411164 HUB-DUST COVERHUB-DUST COVER
-
127661404 PIN, COTTERPIN, COTTER
-
131525017 VALVE, RIMVALVE, RIM
