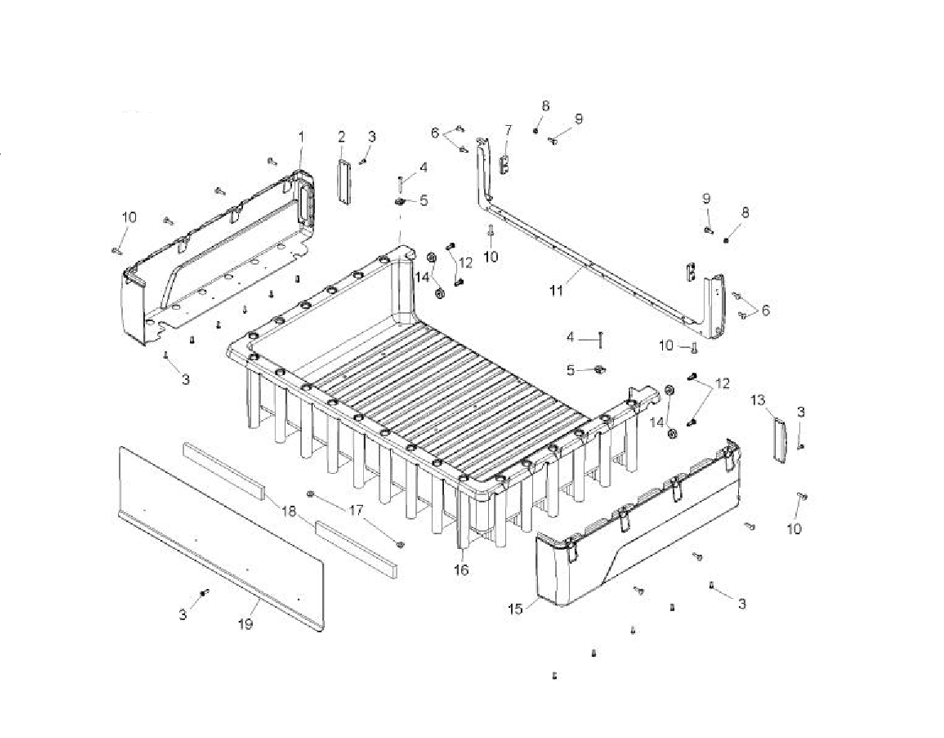

BOX ASSY. для Polaris RANGER 700 EFI 6X6 EB GREEN [R07RF68AF] - 2007 года выпуска
-
№АртикулНазвание
-
11203151-195 PANEL-BOX,LONG, RIGHT (INCL. ALL)PANEL-BOX,LONG, RIGHT (INCL. ALL)
-
15435695-195 PANEL-BOX,LONG, RIGHT HAND,GREENPANEL-BOX,LONG, RIGHT HAND,GREEN
-
22410667 ASM-TAILLIGHT,RHASM-TAILLIGHT,RH
-
24805880 BULB,TAILLIGHTBULB,TAILLIGHT
-
37517790 SCR,#10X3/4 HI/LOSCR,#10X3/4 HI/LO
-
47517983 SCR-5/16-18X3.00 TR/TX-MSCR-5/16-18X3.00 TR/TX-M
-
57081195 RING-TIEDOWNRING-TIEDOWN
-
67512276 BOLTBOLT
-
77081099 LATCH-SLAM,TAILGATELATCH-SLAM,TAILGATE
-
87542122 NUT-NYLOKNUT-NYLOK
-
97518376 BOLTBOLT
-
107518158 SCR-#14X1 HI/LO-PH-PN TRX-MSCR-#14X1 HI/LO-PH-PN TRX-M
-
111014678-067 TAILGATE SUPPORT, BLACKTAILGATE SUPPORT, BLACK
-
127511858 SCREWSCREW
-
132410668 ASM-TAILLIGHT,LHASM-TAILLIGHT,LH
-
134805880 BULB,TAILLIGHTBULB,TAILLIGHT
-
145412919 BUMPER-RECESS,1/4''BUMPER-RECESS,1/4''
-
155435694-195 PANEL-BOX,LONG, LEFT HAND,GREENPANEL-BOX,LONG, LEFT HAND,GREEN
-
165435690-070 BOX-LONG, BLACKBOX-LONG, BLACK
-
177542321 NUT,FLANGENUT,FLANGE
-
185811310 SEAL-FOAM,21 INSEAL-FOAM,21 IN
-
195435996 PANEL-BOX,FRONTPANEL-BOX,FRONT
