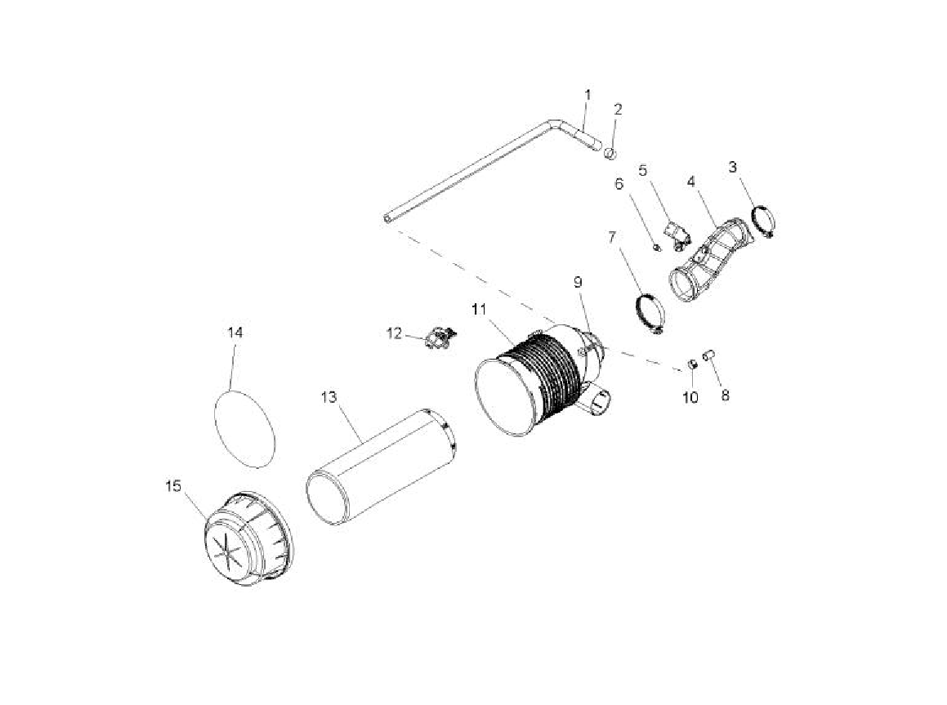

AIR BOX ASSY. для Polaris RANGER 700 EFI 6X6 RED [R07RF68AD] - 2007 года выпуска
-
№АртикулНазвание
-
15412957 HOSE-BREATHER,6X6,700 EFIHOSE-BREATHER,6X6,700 EFI
-
27080694 CLAMP,HOSE,SPRINGCLAMP,HOSE,SPRING
-
37080511 CLAMP, NARROW BANDCLAMP, NARROW BAND
-
45412898 BOOT-AIRBOX,700BOOT-AIRBOX,700
-
52410422 SENSOR-T MAPSENSOR-T MAP
-
67517658 SCREWSCREW
-
77080413 CLAMP,BAND,NARROWCLAMP,BAND,NARROW
-
85433396 CAP,END,406-12,3/4BLACKCAP,END,406-12,3/4BLACK
-
97052164 FITTINGFITTING
-
107080534 CLAMP,HOSECLAMP,HOSE
-
115436698 BOX-AIR INTAKEBOX-AIR INTAKE
-
127710571 CLIP-COVER,AIRBOXCLIP-COVER,AIRBOX
-
137081308 FILTER-AIR INTAKEFILTER-AIR INTAKE
-
145812964 SEAL-AIR BOX COVERSEAL-AIR BOX COVER
-
155436699 COVER-AIRBOXCOVER-AIRBOX
