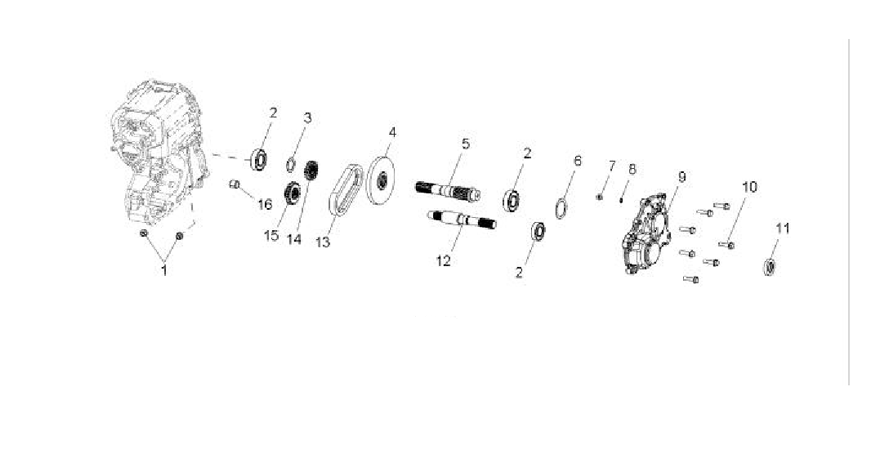

TRANSMISSION - OUTPUT SHAFT для Polaris RANGER 700 XP 4X4 [R07RH68AD] - 2007 года выпуска
-
№АртикулНазвание
-
-1332462 ASM-GEARCASE,MAIN,700ASM-GEARCASE,MAIN,700
-
13234043 NUTNUT
-
23233019 BEARINGBEARING
-
33233619 WASHER,THRUSTWASHER,THRUST
-
43230001 SUBASM-LAPPED BEVEL,GEAR SET (INCL. REF. 28 FRON TRANSMISSION - INTERNAL PAGE)SUBASM-LAPPED BEVEL,GEAR SET (INCL. REF. 28 FRON TRANSMISSION - INTERNAL PAGE)
-
53233911 SHAFT-OUTPUT,MAIN,REARSHAFT-OUTPUT,MAIN,REAR
-
63233611 SHIMSHIM
-
73233582 BUTTON,THRUSTBUTTON,THRUST
-
83233583 SHIM .450 X .265SHIM .450 X .265
-
93234132 COVER-FRONT OUTPUT,MACHCOVER-FRONT OUTPUT,MACH
-
103234144 SPRING-WAVE 1.35 ID X .353SPRING-WAVE 1.35 ID X .353
-
113233842 SEAL-VITON,TRIPLE LIPSEAL-VITON,TRIPLE LIP
-
123233625 SHAFT,FRONT OUTPUTSHAFT,FRONT OUTPUT
-
133233408 CHAIN,SILENT,40P,11WCHAIN,SILENT,40P,11W
-
143233843 SPROCKET-19TSPROCKET-19T
-
153233844 SPROCKET-22TSPROCKET-22T
-
163233552 BUSHING,GARLOCKBUSHING,GARLOCK
