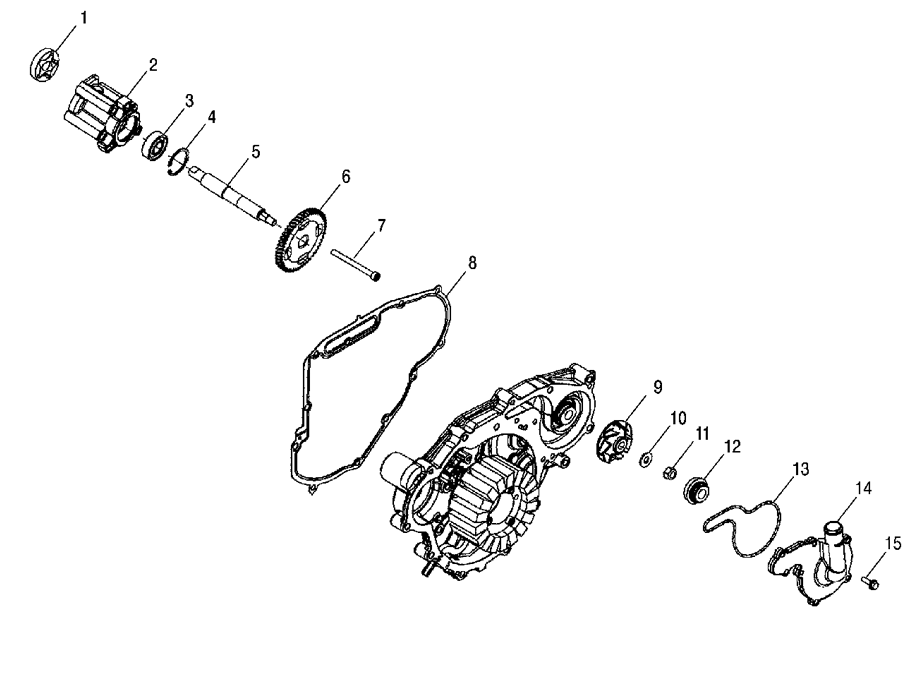

OIL PUMP AND WATER PUMP для Polaris RANGER 700 EFI 4X4 LE T.SILVER [R08RH68AK] - 2008 года выпуска
-
№АртикулНазвание
-
-2203012 KIT-OIL PUMP ATVKIT-OIL PUMP ATV
-
11202588 ASM-GEROTOR 8.5MMASM-GEROTOR 8.5MM
-
25135094 HOUSING-OIL PUMP 8.5 VLMHOUSING-OIL PUMP 8.5 VLM
-
33514561 BEARING-BALL,15X35X11BEARING-BALL,15X35X11
-
47710531 RING-RETAINING,1.281X.130RING-RETAINING,1.281X.130
-
55135650 SHAFT-OIL/WATER PUMPSHAFT-OIL/WATER PUMP
-
77517807 SCR-M6X1.0X70MM SOC/CAP-Y/DSCR-M6X1.0X70MM SOC/CAP-Y/D
-
85812936 GASKET-COVER,MAG DOUBLE BEADGASKET-COVER,MAG DOUBLE BEAD
-
95433684 IMPELLER-WATER PUMPIMPELLER-WATER PUMP
-
107555874 WASHER,FLAT,S.S.WASHER,FLAT,S.S.
-
117546804 NUT,HEX,, NYLOKNUT,HEX,, NYLOK
-
123610075 SEAL-WATERPUMP15X36/40X20,FACESEAL-WATERPUMP15X36/40X20,FACE
-
135812571 SEAL-COVER,WATERPUMPSEAL-COVER,WATERPUMP
-
145631882 KIT-WATER PUMP COVERKIT-WATER PUMP COVER
-
157516822 SCREWSCREW
