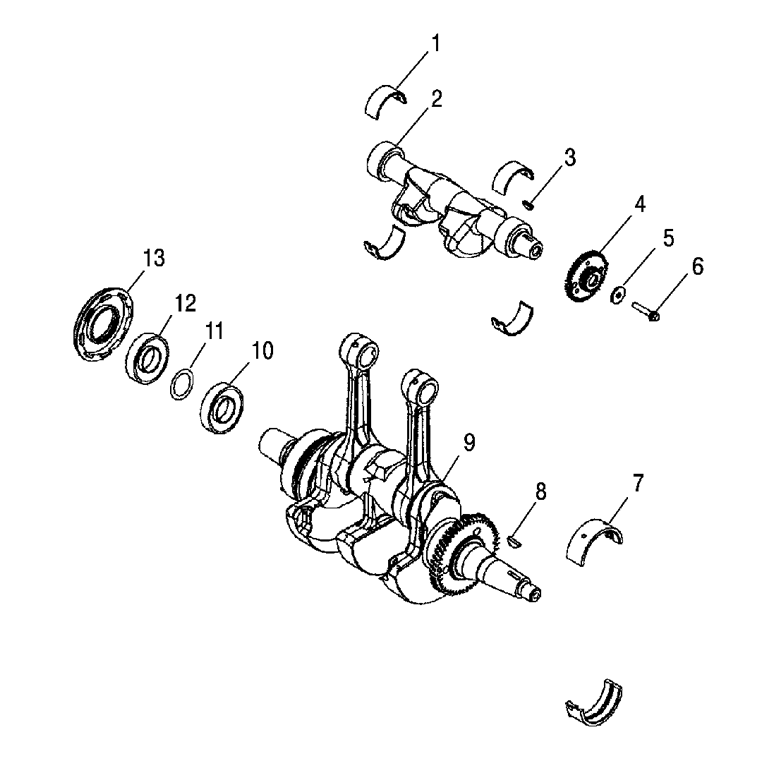

CRANKSHAFT W/ CYLINDER для Polaris RANGER 700 EFI 4X4 S.RED [R08RH68AR] - 2008 года выпуска
-
№АртикулНазвание
-
15132753 BEARING-JOURNAL BAL SHAFTBEARING-JOURNAL BAL SHAFT
-
25132396 SHAFT-BALANCESHAFT-BALANCE
-
37721131 KEY-WOOD RUFF,#404KEY-WOOD RUFF,#404
-
42203106 KIT-GEAR SET ATVKIT-GEAR SET ATV
-
57555982 WASHER,RETAINING,8.5X28X3WASHER,RETAINING,8.5X28X3
-
67517865 SCREW,M8X1.25X45 HX/FL-DSCREW,M8X1.25X45 HX/FL-D
-
73585704 BEARING,MAIN JOURNALBEARING,MAIN JOURNAL
-
87721117 KEY,WOODRUFFKEY,WOODRUFF
-
92203067 KIT-CRANKSHAFT 700 ATVKIT-CRANKSHAFT 700 ATV
-
103514318 BEARING,BALLBEARING,BALL
-
117556194 BUSHING-35X44X3.00 MM-BBUSHING-35X44X3.00 MM-B
-
123514361 BEARING-BALL,DP GRV,35X72X17BEARING-BALL,DP GRV,35X72X17
-
135412676 SEAL-FLANGE 35X72X7 REPSEAL-FLANGE 35X72X7 REP
