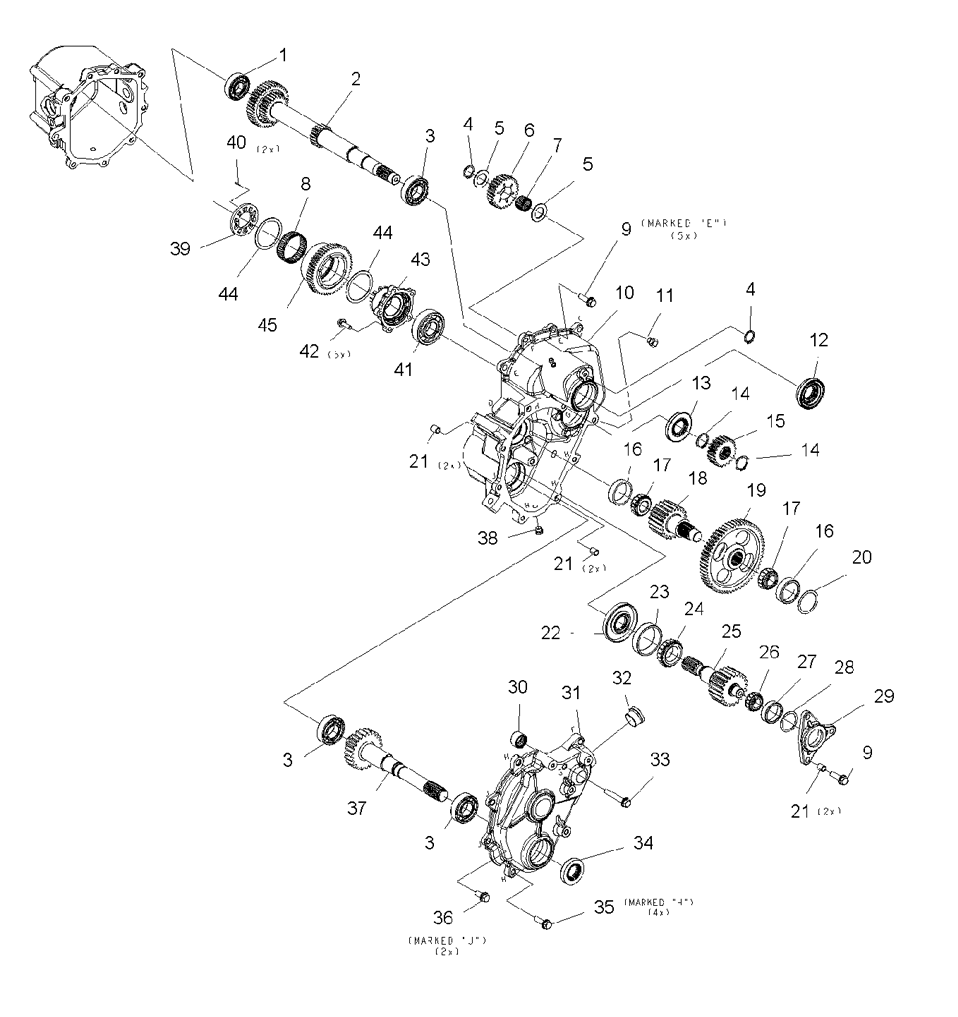

GEARCASE MAIN - INTERNAL COMPONENTS 1 для Polaris RANGER 800 EFI RZG S.GREEN [R08VH76AG] - 2008 года выпуска
-
№АртикулНазвание
-
13234549 BEARING-BALL,6204BEARING-BALL,6204
-
23234550 ASM-GEAR,SHAFT/PINASM-GEAR,SHAFT/PIN
-
33234502 BEARING-BALL,6205BEARING-BALL,6205
-
43234552 RING-RETAININGRING-RETAINING
-
53234553 WASHER-THRUSTWASHER-THRUST
-
63234554 GEAR-REVERSE,29TGEAR-REVERSE,29T
-
73234555 BEARING-NEEDLEBEARING-NEEDLE
-
83234536 BEARING-NEEDLEBEARING-NEEDLE
-
97518172 BOLT-HEX,FLANGEDBOLT-HEX,FLANGED
-
103234498 ASM-TRNS/TRNSM CASE (INC 4,12,13,22)ASM-TRNS/TRNSM CASE (INC 4,12,13,22)
-
115133731 PLUG-DRAINPLUG-DRAIN
-
123234551 SEAL-OILSEAL-OIL
-
133234546 SEAL-OILSEAL-OIL
-
143234547 RING-RETAININGRING-RETAINING
-
153234548 GEAR-PINION,MAINGEAR-PINION,MAIN
-
163234556 CUP-BEARINGCUP-BEARING
-
173234557 CONE-BEARINGCONE-BEARING
-
183234558 PINION SHAFT,20TPINION SHAFT,20T
-
193234559 GEAR-OUTPUT,MAINGEAR-OUTPUT,MAIN
-
203234560 KIT-SHIM,INTER.SHAFTKIT-SHIM,INTER.SHAFT
-
213234503 BUSHING-DOWELBUSHING-DOWEL
-
223610102 SEAL-OIL,PINIONSEAL-OIL,PINION
-
233234562 CUP-BEARINGCUP-BEARING
-
243234563 CONE-BEARINGCONE-BEARING
-
253234564 PINION SHAFT,21TPINION SHAFT,21T
-
263234565 CONE-BEARINGCONE-BEARING
-
273234566 CUP-BEARINGCUP-BEARING
-
283234567 KIT-SHIM,RR BEARINGKIT-SHIM,RR BEARING
-
293234568 CAP-BEARING RETAIN.CAP-BEARING RETAIN.
-
303234561 BEARING-NEEDLEBEARING-NEEDLE
-
313234496 ASM-COVER,TRANS.CS (INC 34)ASM-COVER,TRANS.CS (INC 34)
-
325133736 PLUG-FILL/CHECKPLUG-FILL/CHECK
-
333234571 SCR-5/16-18X2.125SCR-5/16-18X2.125
-
343234570 SEAL-OILSEAL-OIL
-
353234512 SCR-5/16-18X1.125SCR-5/16-18X1.125
-
363234511 SCR-5/16-18X.75,FLSCR-5/16-18X.75,FL
-
373234569 PINION SHAFT,24TPINION SHAFT,24T
-
383234499 PLUG-DRAIN/ORINGPLUG-DRAIN/ORING
-
393234541 PLATE-RETAINING,REV.PLATE-RETAINING,REV.
-
403234538 PIN-SPRINGPIN-SPRING
-
413234545 BEARING-BALL,6305BEARING-BALL,6305
-
423234544 SCR-1/4-20X.875SCR-1/4-20X.875
-
433234543 FLANGE-PARKFLANGE-PARK
-
443234534 WASHER-THRUSTWASHER-THRUST
-
453234542 GEAR-CLUTCH,REV,47TGEAR-CLUTCH,REV,47T
