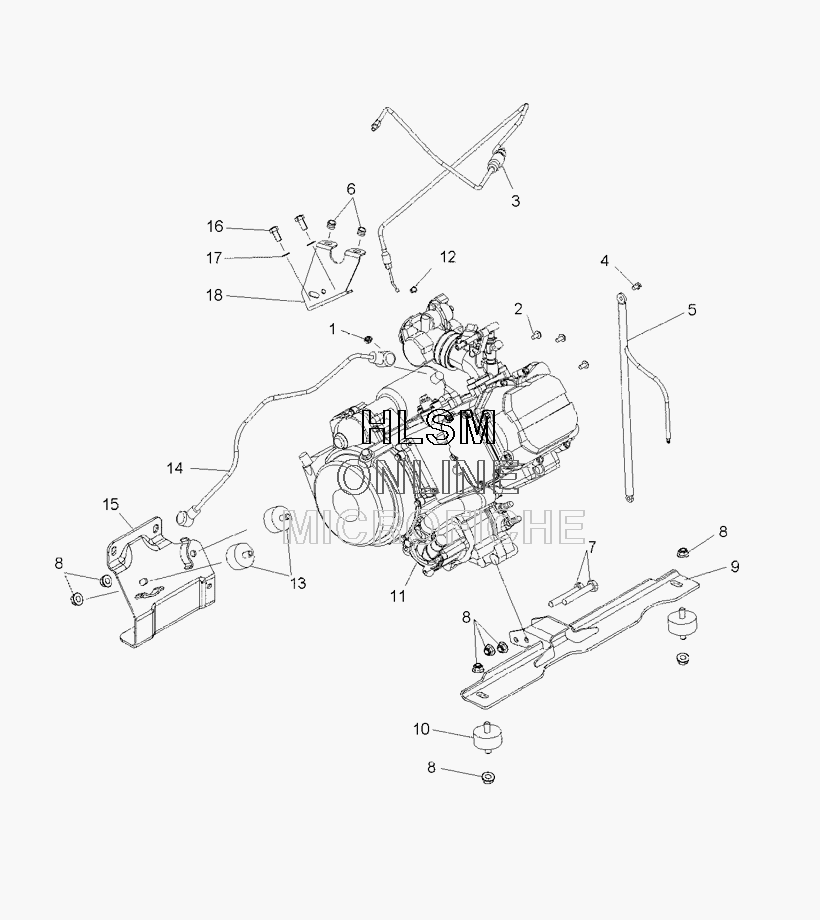

ENGINE - MOUNTING для Polaris RANGER 4X4 500 EFI GREEN [R09HH50AG] - 2009 года выпуска
-
№АртикулНазвание
-
13083649 NUT, FLANGENUT, FLANGE
-
23084205 ASM., SCREW AND WASHERASM., SCREW AND WASHER
-
37081558 CABLE-THROTTLE, RNGR 500CABLE-THROTTLE, RNGR 500
-
43082038 BOLT AND WASHER ASM.BOLT AND WASHER ASM.
-
54012387 SUPPORTSUPPORT
-
65412504 GROMMET-RUBBER, MOUNT, 25''GROMMET-RUBBER, MOUNT, 25''
-
77515417 SCREWSCREW
-
87547263 NUT-3/8-24 NYLOKNUT-3/8-24 NYLOK
-
91016421-329 WELD-ENGINE MNT, 500, BLACKWELD-ENGINE MNT, 500, BLACK
-
103022071 ISOLATOR-3/8-24M/M, 60DUROISOLATOR-3/8-24M/M, 60DURO
-
113090027 ENGINE-SB, EH500PLE224 (SEE NOTE)ENGINE-SB, EH500PLE224 (SEE NOTE)
-
123130543 GUIDE, CABLEGUIDE, CABLE
-
133022076 ISOLATOR-3/8-24M, 3/8-16M, 60DURISOLATOR-3/8-24M, 3/8-16M, 60DUR
-
144012442 CABLE-SOL/STARTERCABLE-SOL/STARTER
-
151015065-067 ENG/TRANS MNT, BLACKENG/TRANS MNT, BLACK
-
167512315 BOLTBOLT
-
177552901 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
185250220 MOUNT-ENGINE, TOP PLTDMOUNT-ENGINE, TOP PLTD
