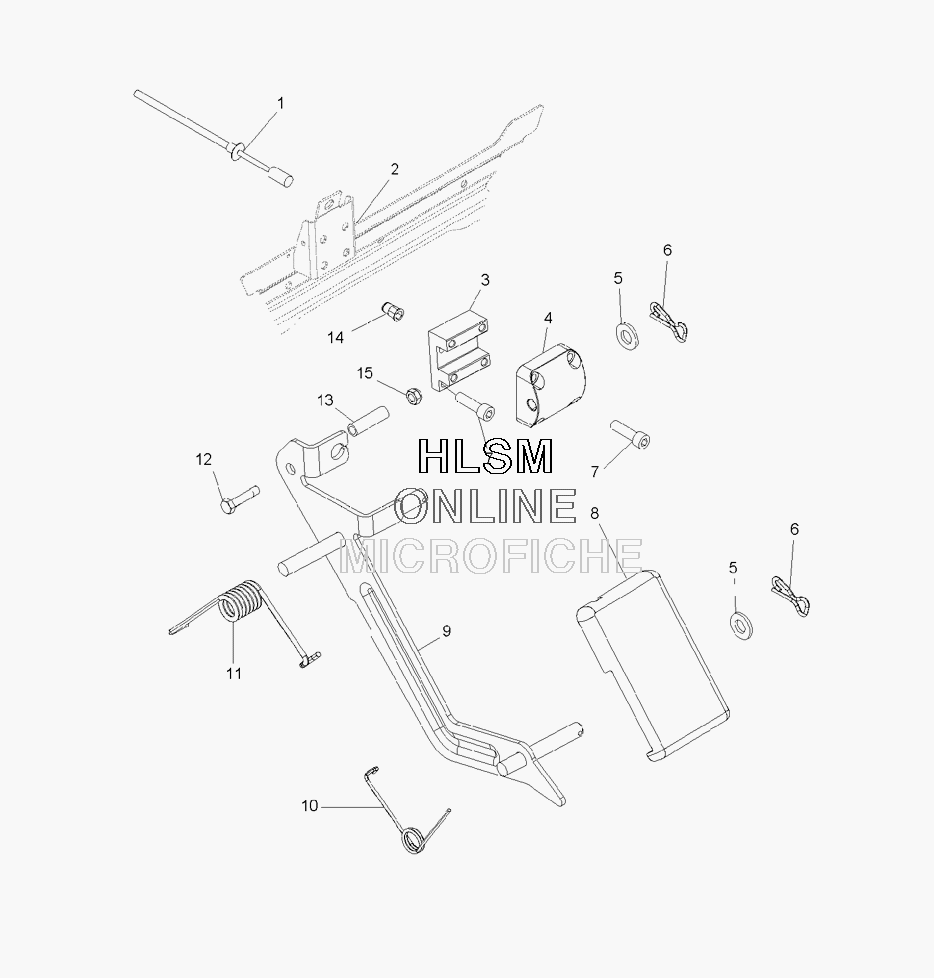

THROTTLE для Polaris RANGER 4X4 700 EFI CREW NBU [R09WH68AH] - 2009 года выпуска
-
№АртикулНазвание
-
17081465 CABLE-THROTTLECABLE-THROTTLE
-
35135410 SPACER-THROTTLE, MACHSPACER-THROTTLE, MACH
-
45434327 BLOCK-PIVOT, THROTTLEBLOCK-PIVOT, THROTTLE
-
57555954 WASHERWASHER
-
67661140 PIN-CLIP, 14MMPIN-CLIP, 14MM
-
77515102 SCREWSCREW
-
85437543 PEDAL-THROTTLEPEDAL-THROTTLE
-
91016063 WELD-THROTTLE, BLACKWELD-THROTTLE, BLACK
-
107043078 SPRING-THROTTLESPRING-THROTTLE
-
117043208 SPRING-ACCELERATORSPRING-ACCELERATOR
-
127512130 BOLTBOLT
-
135135416 SPACER-THROTTLESPACER-THROTTLE
-
147547069 NUTSERT, HEXNUTSERT, HEX
-
157542153 NUT, NYLOK, FLANGEDNUT, NYLOK, FLANGED
