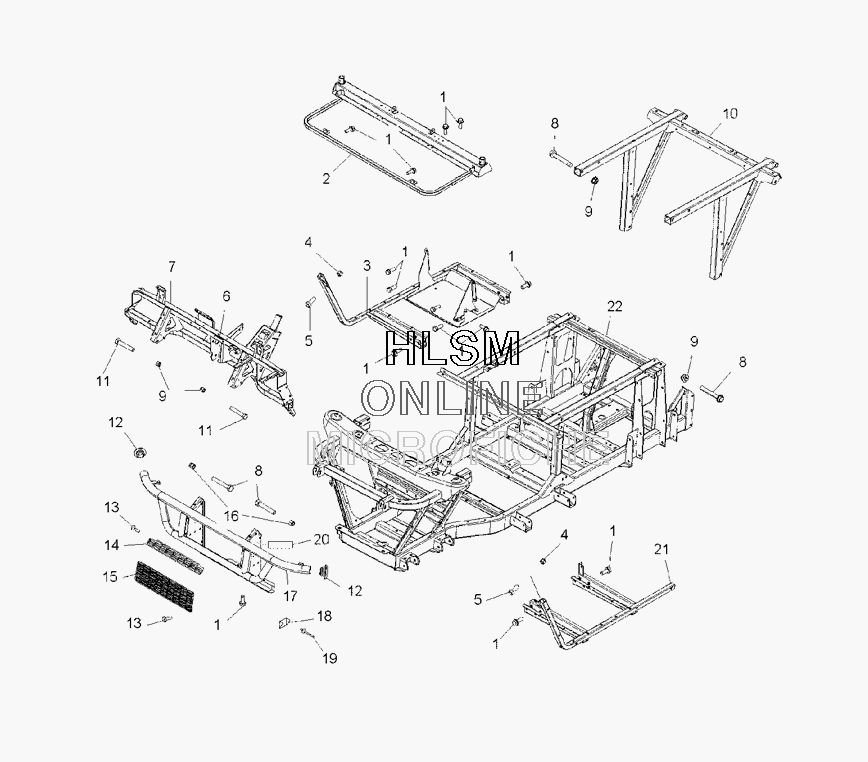

FRAME W/FRONT BUMPER для Polaris RANGER 6X6 700 EFI ASAP BLACK [R09RF68AZ] - 2009 года выпуска
-
№АртикулНазвание
-
17518555 BOLT-M8X1.25X20,HXFLG,TAP/R-ODBOLT-M8X1.25X20,HXFLG,TAP/R-OD
-
31015378-067 WELD-FLOOR SUPT, RIGHT HAND, BLACKWELD-FLOOR SUPT, RIGHT HAND, BLACK
-
47547180 NUT-FLANGED,3/8-16 NYLON-ZNUT-FLANGED,3/8-16 NYLON-Z
-
57515522 BOLTBOLT
-
65521131 TRIM,EDGE,6FT, BLACKTRIM,EDGE,6FT, BLACK
-
71015992-067 WELD-CAB SUPPORT,FRT, BLACKWELD-CAB SUPPORT,FRT, BLACK
-
87518474 BOLT-M10X1.5X55,HX HD FLGBOLT-M10X1.5X55,HX HD FLG
-
97547333 NUT-M10X1.25,FLG,NYLOC-OLIVE DNUT-M10X1.25,FLG,NYLOC-OLIVE D
-
101016815-067 WELD-FRAME,EXT,BLKWELD-FRAME,EXT,BLK
-
117518563 BOLT-M10X1.25X60,HXFLG-OLIVE DBOLT-M10X1.25X60,HXFLG-OLIVE D
-
125434191 CAP-BUMPERCAP-BUMPER
-
137517916 SCR-1/4-20X3/4-TR/TX/TAP-MSCR-1/4-20X3/4-TR/TX/TAP-M
-
145248846-067 PLATE-GRILLE,BUMPER,TOP, BLACKPLATE-GRILLE,BUMPER,TOP, BLACK
-
155248845-067 PLATE-GRILLE,BUMPER,UPPER, BLACKPLATE-GRILLE,BUMPER,UPPER, BLACK
-
167547313 NUT-M10X1.5,HXFLG, NYLON INSNUT-M10X1.5,HXFLG, NYLON INS
-
171016808-067 WELD-BUMPER, BLACKWELD-BUMPER, BLACK
-
185436987 CUP-HOOD LATCHCUP-HOOD LATCH
-
197621334 RIVETRIVET
-
207175521 DECAL-REFLECTOR,AMBERDECAL-REFLECTOR,AMBER
-
211015068-067 FLOOR SUPPORT, LEFT HAND, BLACKFLOOR SUPPORT, LEFT HAND, BLACK
-
221016795-067 WELD-MAIN FRAME, 6X6,BLKWELD-MAIN FRAME, 6X6,BLK
