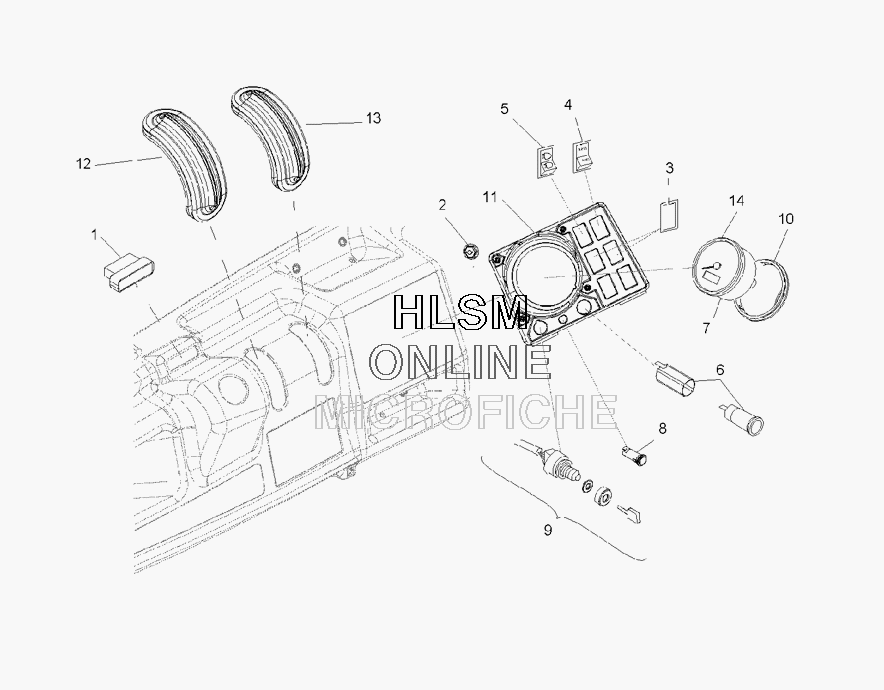

GAUGES AND INDICATOR для Polaris RANGER 6X6 700 EFI E.GREEN [R09RF68AF] - 2009 года выпуска
-
№АртикулНазвание
-
15436853 PLUG-HOLE,GEAR INDICATORPLUG-HOLE,GEAR INDICATOR
-
27670054 NUT, PUSH-ONNUT, PUSH-ON
-
35434192 PLUG-HOLE,CARLING ROCKER SWTCHPLUG-HOLE,CARLING ROCKER SWTCH
-
44010601 SWITCH-AWD,RANGER SERIES 10SWITCH-AWD,RANGER SERIES 10
-
54011500 SWITCH-HEADLIGHTSWITCH-HEADLIGHT
-
64010638 RECEPTACLE-POD MNT,12 VOLTRECEPTACLE-POD MNT,12 VOLT
-
72410834 ASM-SPEEDO,RANGERASM-SPEEDO,RANGER
-
84011501 SWITCH-MOMENTARY, INST.SWITCH-MOMENTARY, INST.
-
94012165 SWITCH-KEY,3 POS,MT SLVSWITCH-KEY,3 POS,MT SLV
-
105412138 MOUNT-RUBBER,INSTR. CLUSTERMOUNT-RUBBER,INSTR. CLUSTER
-
115436827-070 PANEL-DASH,CONTROLS, BLACKPANEL-DASH,CONTROLS, BLACK
-
125413351 GROMMET-PARK SHIFTGROMMET-PARK SHIFT
-
135412154 GROMMET-GEAR SHIFTGROMMET-GEAR SHIFT
-
145437258 BEZEL-REPLACEMENT ATV CLUSTERBEZEL-REPLACEMENT ATV CLUSTER
