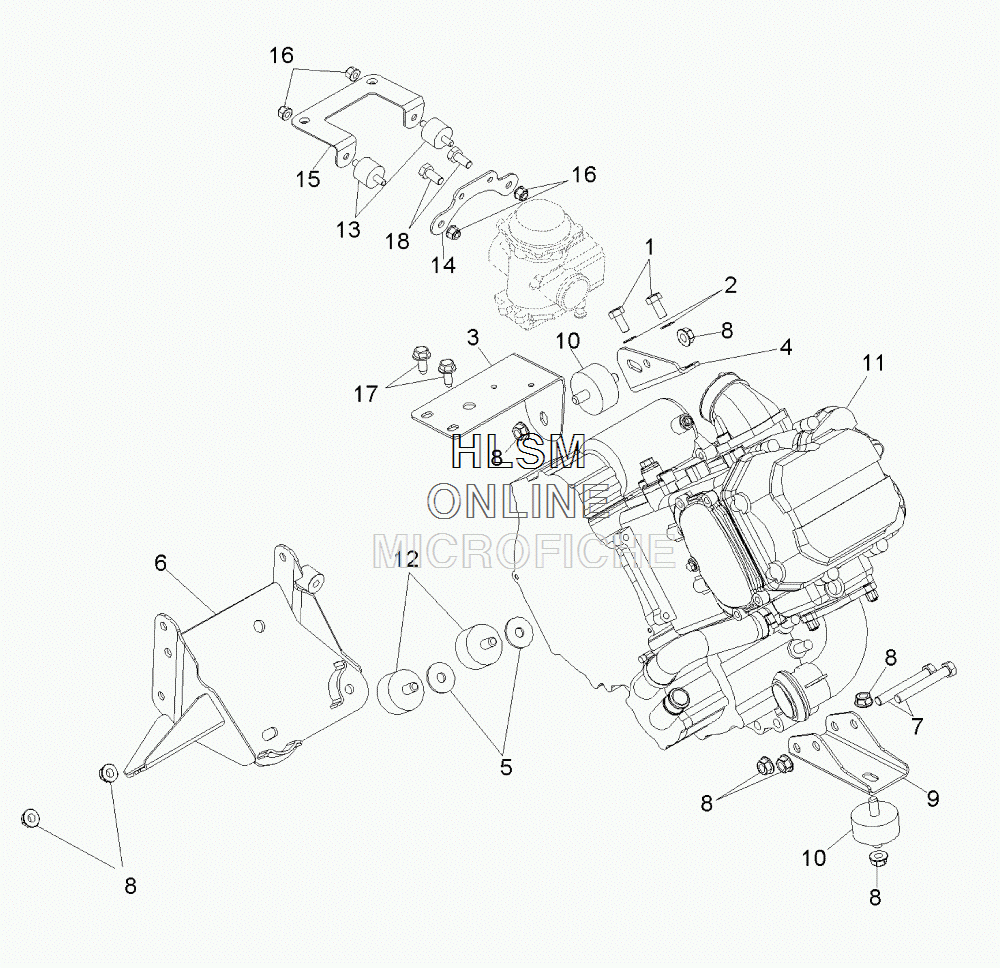

ENGINE MOUNTING для Polaris RANGER 4X4 400 SOLAR RED [R10RH45AR] - 2010 года выпуска
-
№АртикулНазвание
-
17512315 BOLTBOLT
-
27552901 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
35252896 BRACKET, MOUNT, ENGINE, TOPBRACKET, MOUNT, ENGINE, TOP
-
45241453 MOUNT, ENGINE, TOPMOUNT, ENGINE, TOP
-
57555815 WASHERWASHER
-
61017359-329 MOUNT, ENGINE, REAR (BLACK)MOUNT, ENGINE, REAR (BLACK)
-
77515417 SCREWSCREW
-
87547108 NUT, FLANGE LOCKNUT, FLANGE LOCK
-
95248195 BRACKET, ENGINE MOUNT, LOWER, FRONTBRACKET, ENGINE MOUNT, LOWER, FRONT
-
103022071 ISOLATORISOLATOR
-
123022076 ISOLATORISOLATOR
-
133110050 MOUNT, CARBMOUNT, CARB
-
145245206 BRACKET, CARB, DAMPENERBRACKET, CARB, DAMPENER
-
155253770 BRACKET, CARBBRACKET, CARB
-
167542153 NUTNUT
-
177518555 BOLTBOLT
-
187517386 SCREWSCREW
