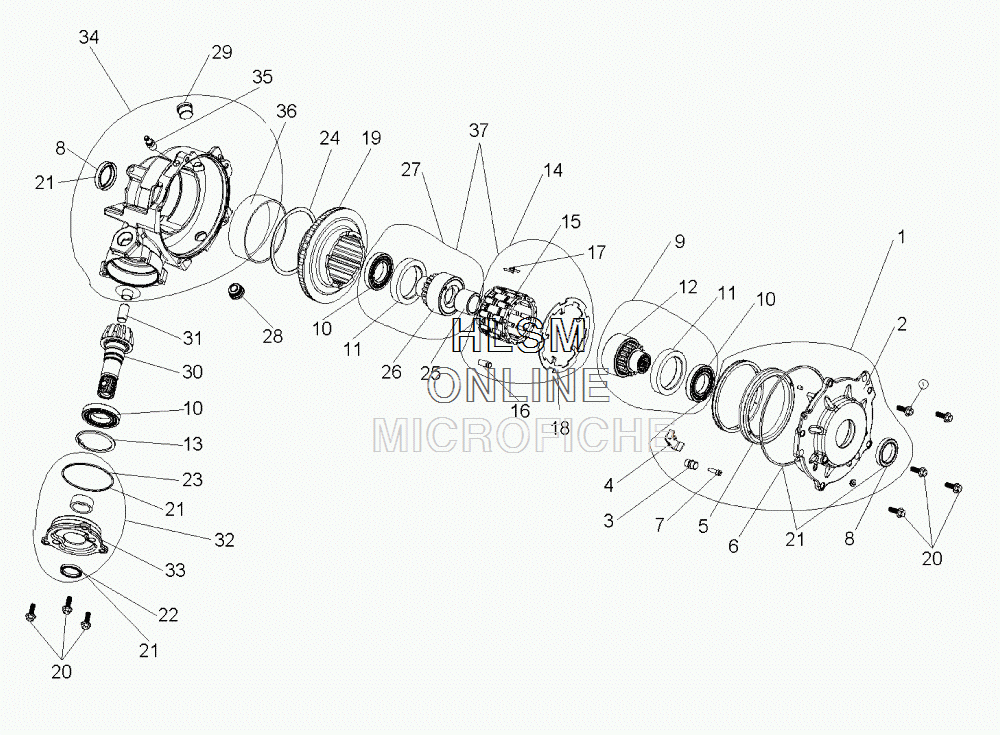

FRONT GEARCASE INTERNALS для Polaris RANGER 4X4 500 EFI SOLAR RED [R10TH50AR] - 2010 года выпуска

№

Артикул

Название
25

1332731 ASM., FRONT GEARCASE

ASM., FRONT GEARCASE

260 ₽
1

3234402 ASM., OUTPUT COVER (INCL. 2-8)

ASM., OUTPUT COVER (INCL. 2-8)

91 520 ₽
3

3234594 ASM., BUTTON, THRUST

ASM., BUTTON, THRUST

2 500 ₽
4

3234595 PLATE, THRUST

PLATE, THRUST

6 870 ₽
7

3234408 SET, SCREW

SET, SCREW

3 540 ₽
9

3234403 ASM., HUB, OUTPUT (INCL. 10-13)

ASM., HUB, OUTPUT (INCL. 10-13)

87 360 ₽
10

3234390 BEARING

BEARING

8 320 ₽
13

3234416 RING, RETAINING

RING, RETAINING

1 670 ₽
14

3234404 ASM., CLUTCH (INCL. 15-19)

ASM., CLUTCH (INCL. 15-19)

130 ₽
15

3234466 ASM., ROLL CAGE (INCL. 17)

ASM., ROLL CAGE (INCL. 17)

33 280 ₽
16

3234836 KIT, ROLL (INCL. 20 ROLLERS)

KIT, ROLL (INCL. 20 ROLLERS)

17 680 ₽
18

3234407 PLATE, ARMATURE

PLATE, ARMATURE

20 800 ₽
19

3234409 CLUTCH, HOUSING/RING GEAR

CLUTCH, HOUSING/RING GEAR

130 ₽
20

3234405 KIT, BOLT (INCL. 8 BOLTS)

KIT, BOLT (INCL. 8 BOLTS)

3 540 ₽
21

3234406 KIT, SEAL REPAIR (INCL. 6,8,22,23)

KIT, SEAL REPAIR (INCL. 6,8,22,23)

13 520 ₽
24

3234437 SPACER, RING, GEAR

SPACER, RING, GEAR

3 020 ₽
25

3234436 BUSHING

BUSHING

6 620 ₽
27

3234465 HUB, OUTPUT (INCL. 10,11,25,26)

HUB, OUTPUT (INCL. 10,11,25,26)

87 360 ₽
28

3234412 ASM., PLUG, DRAIN

ASM., PLUG, DRAIN

5 830 ₽
29

3234414 PLUG, OIL FILL

PLUG, OIL FILL

4 990 ₽
30

3234415 ASM., GEAR, PINION (INCL. 31)

ASM., GEAR, PINION (INCL. 31)

112 010 ₽
32

3234463 ASM., COVER, INPUT

ASM., COVER, INPUT

21 840 ₽
33

3234418 COVER, INPUT

COVER, INPUT

23 920 ₽
34

3234411 ASM., GEARCASE (INCL. 8,29,35,36)

ASM., GEARCASE (INCL. 8,29,35,36)

128 960 ₽
37

3234464 KIT, CAGE SPRINGS/OUTPUT HUBS (INCL. 12,14,27)

KIT, CAGE SPRINGS/OUTPUT HUBS (INCL. 12,14,27)

87 360 ₽
