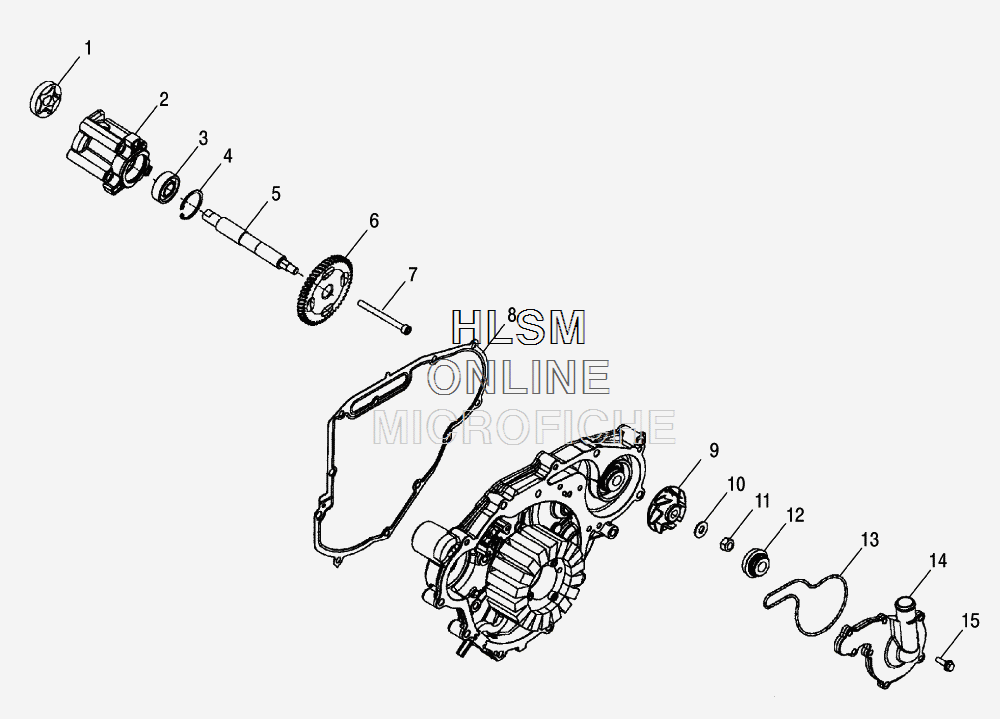

OIL PUMP AND WATER PUMP для Polaris RANGER 4X4 800 EFI SAGE BRUSH METALLIC [R10TH76AG] - 2010 года выпуска
-
№АртикулНазвание
-
32203012 KIT, OIL PUMP (INCL. 1-6)KIT, OIL PUMP (INCL. 1-6)
-
11202588 ASM., GEROTORASM., GEROTOR
-
25135094 HOUSING, OIL PUMPHOUSING, OIL PUMP
-
33514561 BEARING, BALLBEARING, BALL
-
47710531 RING, RETAININGRING, RETAINING
-
55135650 SHAFT, OIL/WATER PUMPSHAFT, OIL/WATER PUMP
-
77517807 SCREWSCREW
-
85812936 GASKET, COVER, MAGGASKET, COVER, MAG
-
95433684 IMPELLER, WATER PUMPIMPELLER, WATER PUMP
-
107555874 WASHER, FLATWASHER, FLAT
-
117546804 NUT, HEX, NYLOKNUT, HEX, NYLOK
-
123610075 SEAL, WATER PUMPSEAL, WATER PUMP
-
135812571 SEAL, WATER PUMPSEAL, WATER PUMP
-
145631882 COVER, WATER PUMPCOVER, WATER PUMP
-
157516822 SCREWSCREW
