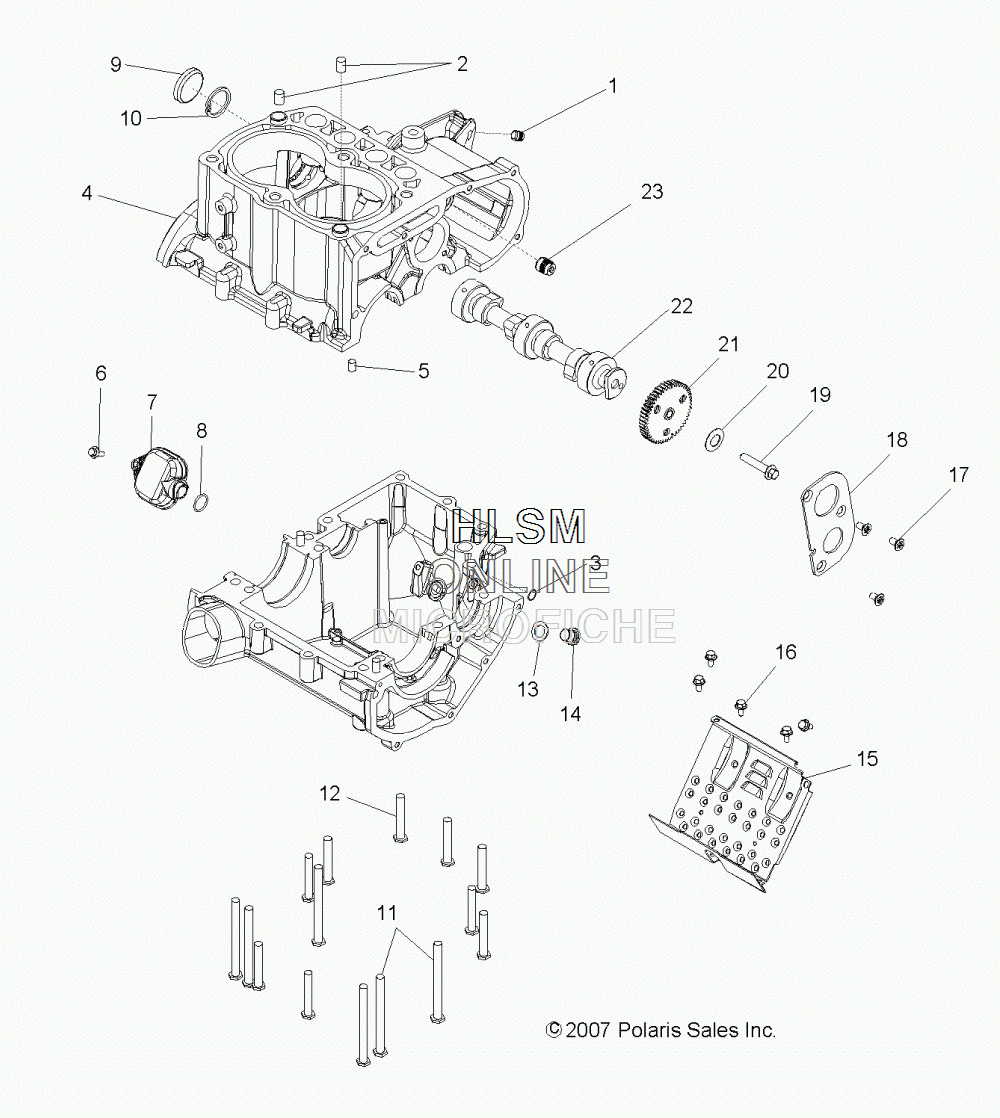

CRANKCASE для Polaris RANGER 6X6 800 EFI SAGE BRUSH METALLIC [R10HR76AG] - 2010 года выпуска
-
№АртикулНазвание
-
17051531 PLUG, EXPANSION, 9MMPLUG, EXPANSION, 9MM
-
27661175 DOWELDOWEL
-
37051530 PLUG, EXPANSION, 19MMPLUG, EXPANSION, 19MM
-
42203300 KIT, CRANKCASEKIT, CRANKCASE
-
57663001 PIN, DOWELPIN, DOWEL
-
67516603 BOLTBOLT
-
71202663 ASM., OIL PICKUPASM., OIL PICKUP
-
85812016 SEAL, O-RINGSEAL, O-RING
-
93060004 PLUG, EXPANSION, 42MMPLUG, EXPANSION, 42MM
-
107710512 RING, RETAININGRING, RETAINING
-
117517792 SCREWSCREW
-
127517793 SCREWSCREW
-
135812232 WASHER, COPPERWASHER, COPPER
-
147052306 PLUG, SOCKETPLUG, SOCKET
-
155211785 PLATE, BAFFLEPLATE, BAFFLE
-
167518045 SCREWSCREW
-
177517598 SCREWSCREW
-
185244286 PLATE, THRUSTPLATE, THRUST
-
197517865 SCREWSCREW
-
207556183 WASHER, SPRINGWASHER, SPRING
-
212203106 KIT, GEAR SETKIT, GEAR SET
-
222202110 KIT, CAMSHAFTKIT, CAMSHAFT
-
237052288 PLUG, EXPANSION, 13MMPLUG, EXPANSION, 13MM
