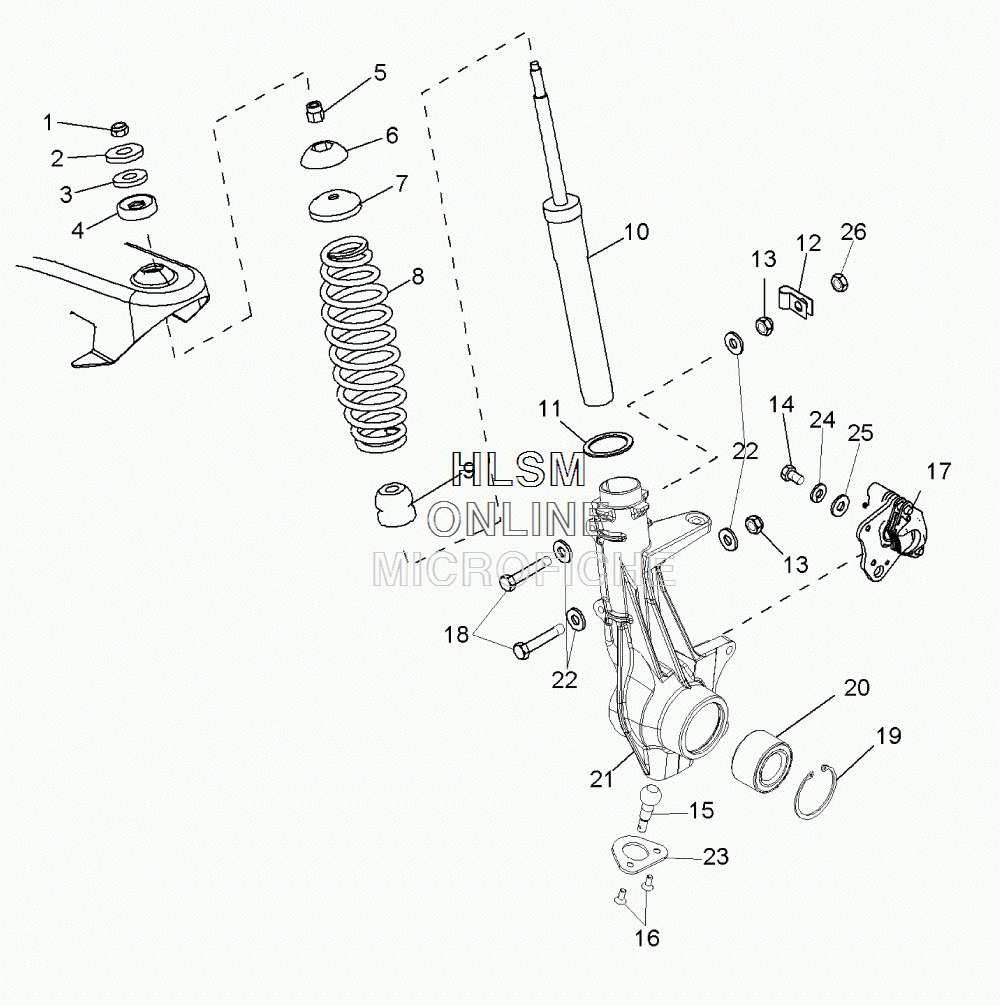

SUSPENSION- FRONT STRUT для Polaris RANGER EV 4X4 SAGE BLUE [R10RC08GA] - 2010 года выпуска
-
№АртикулНазвание
-
17547104 NUTNUT
-
27555749 WASHERWASHER
-
35810291 SPACER, RUBBERSPACER, RUBBER
-
45432872 BALL, PIVOT, TOPBALL, PIVOT, TOP
-
55132062 SPACERSPACER
-
65432871 BALL, PIVOT, BOTTOMBALL, PIVOT, BOTTOM
-
75243364 RETAINER, SPRINGRETAINER, SPRING
-
87043555-067 SPRING, FRONT, BLACKSPRING, FRONT, BLACK
-
95412665 BUMPERBUMPER
-
107043593 STRUT, FRONTSTRUT, FRONT
-
115211115 WASHERWASHER
-
127080367 CLAMP, CABLECLAMP, CABLE
-
137542324 NUT, NYLOKNUT, NYLOK
-
147512365 SCREW (ASSEMBLES BRAKE CALIPER)SCREW (ASSEMBLES BRAKE CALIPER)
-
157061158 JOINT, BALL, GREASELESSJOINT, BALL, GREASELESS
-
167512284 SCREWSCREW
-
187512312 BOLTBOLT
-
197710507 RING, RETAININGRING, RETAINING
-
203514634 BEARING, WHEELBEARING, WHEEL
-
211823716 ASM., HUBSTRUT, LEFT HAND (INCL. 15,16,19,20,23)ASM., HUBSTRUT, LEFT HAND (INCL. 15,16,19,20,23)
-
211823717 ASM., HUBSTRUT, RIGHT HAND (INCL. 15,16,19,20,23)ASM., HUBSTRUT, RIGHT HAND (INCL. 15,16,19,20,23)
-
227558402 WASHER, FLATWASHER, FLAT
-
235211121 BRACKET, BALL JOINTBRACKET, BALL JOINT
-
247552901 WASHER, SPRING LOCK (ASSEMBLES BRAKE CALIPER)WASHER, SPRING LOCK (ASSEMBLES BRAKE CALIPER)
-
257558402 WASHER, FLAT (ASSEMBLES BRAKE CALIPER)WASHER, FLAT (ASSEMBLES BRAKE CALIPER)
-
267542344 NUT, NYLOKNUT, NYLOK
