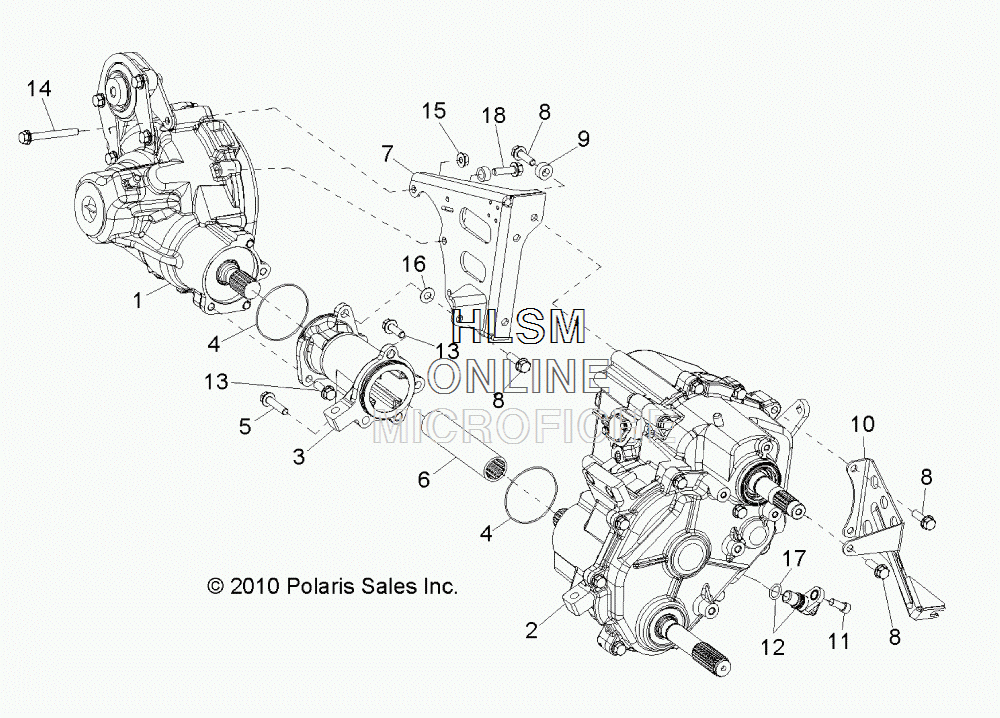

GEARCASE- CARRIER MOUNTING (BUILT 5/17/10 AND AFTER) для Polaris RANGER RZR 4 800 EFI - BOARDWALK BLUE [R10XH76AA] - 2010 года выпуска
-
№АртикулНазвание
-
1332919 ASM., GEARCASEASM., GEARCASE
-
13235083 ASM., CARRIERASM., CARRIER
-
23235269 ASM., TRANSMISSION, SUBASM., TRANSMISSION, SUB
-
33234858 TUBE, CONNECTORTUBE, CONNECTOR
-
43234516 O-RINGO-RING
-
53234880 SCREW, FLANGE HEADSCREW, FLANGE HEAD
-
63235065 COUPLING, SPLINEDCOUPLING, SPLINED
-
73235062 BRACKET, STABILIZERBRACKET, STABILIZER
-
83234618 SCREWSCREW
-
93234572 SPACERSPACER
-
101015951 MOUNT, SHIFT CABLE, REARMOUNT, SHIFT CABLE, REAR
-
113234509 SCREW, SOCKET HEADSCREW, SOCKET HEAD
-
123234508 ASM., SENSOR, GROUND SPEED (INCL. 17)ASM., SENSOR, GROUND SPEED (INCL. 17)
-
137518172 SCREW, FLANGE HEADSCREW, FLANGE HEAD
-
143235287 SCREWSCREW
-
153235289 NUT, FLANGENUT, FLANGE
-
162203725 KIT, SHIMKIT, SHIM
-
173234302 O-RINGO-RING
-
183235286 SCREWSCREW
